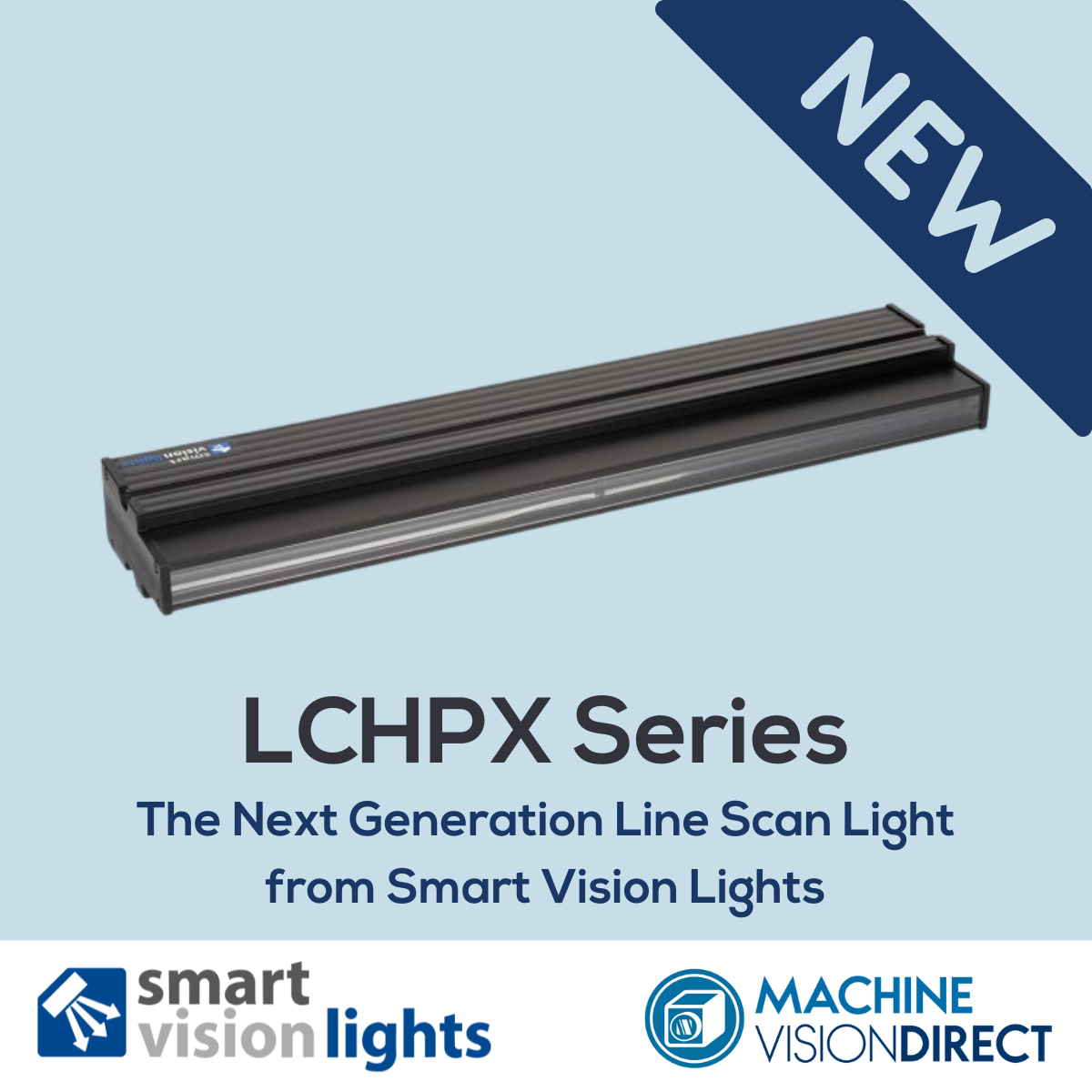

Smart Vision Lights has a launched a new family of Passively Cooled Line Scan Lights, the LCHPX Series.
The original generation of Line Scan Lights from Smart Vision Lights was the LHP lights, which was an acronym for "Line High Power". This light required Liquid Cooling for LED Life Maintenance as many Line Scan Lights did at the time.
Following the LHP, Smart Vision Lights introduced the LCHP series which was the Low Cost High Power Series of Line Scan Lights. The LCHP became one of the industries earliest High Power Line Scan Lights that was passively cooled without the need for an external chilling system. The LCHP was available in 2 standard sizes, the LCHP300 and the LCHP600
With the addition of numerous lens options and an improved design, the LCHPX will become the successor to the LHP and LCHP series lights.
In addition, the standard colors for the LCHPX are the following
Additional colors can be produced as semi-custom units if needed
There are four variations of Lens Position that produce different illumination patterns and intensities
|Lens Position||Working Distance||Beam Width||Illuminance|
|1||35 mm||2.5 mm||805,000 Lux|
|2*||50 mm||3.0 mm||644,000 Lux|
|3||100 mm||4.5 mm||290,000 Lux|
|4||100 mm||8.0 mm||274,000 Lux|
|Illumination measurement taken on white light, 5700 K|
|* Lens Position 2 is Default Lens Position|
