RMX140 Bright Field Mini Ring Light

Smart Vision LightsSKU: RMX140-WHI-N10
Lead Time: 3 Business Days

Color: WHITE
Lens: Narrow 10 Deg
Price:
Sale price$709.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

RMX140 Mini Ring Lights

Product Details

  • Built-in Driver - No External Wiring To A Driver Needed
  • 6" (15 cm) - 5 Pin M12 Quick Connect Cable
  • Over-Current Protection
  • PNP and NPN Strobe Input
  • Continuous Operation or Strobe Mode
  • High Output LEDs
  • Available in SWIR wavelengths

Smart Vision Lights RMX140 Technical Specifications

RMX140 Continuous Operation Specifications

Electrical Input 24VDC +/–5%
Input Current Max. 510 mA
Input Power Max. 12.5 W
PNP Trigger 2.8 mA @ 4 V DC | 8.8 mA @ 12 V DC | 13.4 mA @24 V DC
NPN Trigger 14.4 mA @ Ground (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN > GND (<1VDC) to activate (not both)
Mode Control Connect pin 5 to 1-10 VDC (10 - 100% output); 24 VDC (Max)
Strobe Duration Minimum 30 us | Maximum ∞
Duty Cycle Not applicable
Strobe Input Not applicable
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14° - 104° F) | RH max 80% non-condensing humidity
Storage Temperature -20° to 70° C | RH max 80% non-condensing humidity
Ip Rating  IP65
Weight 365 g
Compliances CE, RoHS, IEC 62471
Warranty 10 Years*



RMX140 OverDrive Operation Specifications

Electrical Input 24VDC +/–5%
Input Current Peak 4.5 A during strobe
Input Power Peak 108 W during strobe
PNP Trigger 2.8 mA @ 4 V DC | 8.8 mA @ 12 V DC | 13.4 mA @24 V DC
NPN Trigger 14.4 mA @ Ground (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or
NPN > GND (<1VDC) to activate
 (not both)
Mode Control Connect pin 5 to GND
(see Wiring Configuration for more information)
Strobe Duration Minimum 30 us | Maximum 50 ms
Duty Cycle Max. 10%
Strobe Input PNP > +4 V DC or greater to activate
NPN > GND (< 1 V DC) to activate
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14° - 104° F) | RH max 80% non-condensing humidity
Storage Temperature -20° to 70° C | RH max 80% non-condensing humidity
Ip Rating  IP65
Weight 365 g
Compliances CE, RoHS, IEC 62471
Warranty 10 Years*



MINI RING LIGHT OVERVIEW
Smart Vision Lights most compact ring lights are the RMX75 and RMX140 mini LED ring lights. These mini LED ring lights features our built-in Multi-Drive™ controller allowing users to operate the mini ring light continuously or in OverDrive™ Strobe mode. Our mini LED ring lights are extremely bright and available in multiple wavelengths to meet your application needs. All mini LED ring lights feature a standard 5-pin M12 connector makes wiring simple. The 1-10 V analog control line gives the user total control over intensity. The built-in Multi-Driver™ also protects the LEDs from premature degradation and failure caused by excessive heat by regulating the current delivered to the LEDs and limiting the duty cycle of the light.

RMX140 LIGHT OVERVIEW
The RMX140 Mini Ring Light Series is specifically engineered for radial and bright field applications. There are multiple lens options available, making this an extremely versatile illumination option. The lenses are designed to work at a closer working distance, while the long-distance narrow lenses allow the light to work at a longer working distance. The light offers over-current protection in OverDrive strobe mode and PNP and NPN trigger signal input.

Recommended illumination usage: Bright Field

Wavelength Colors

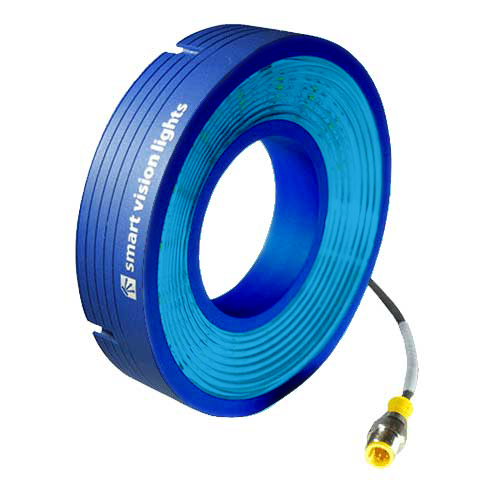

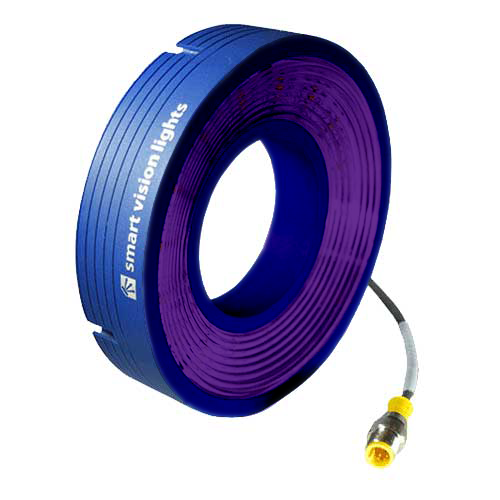

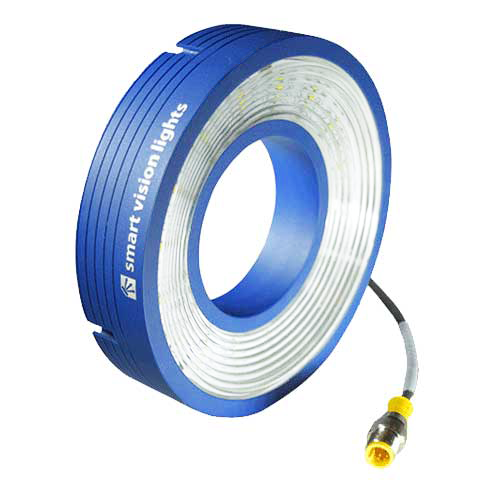

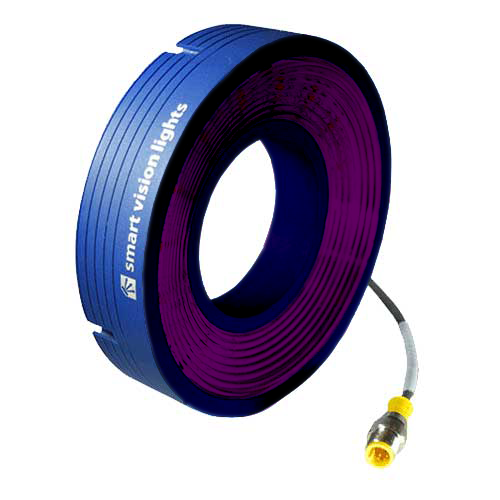

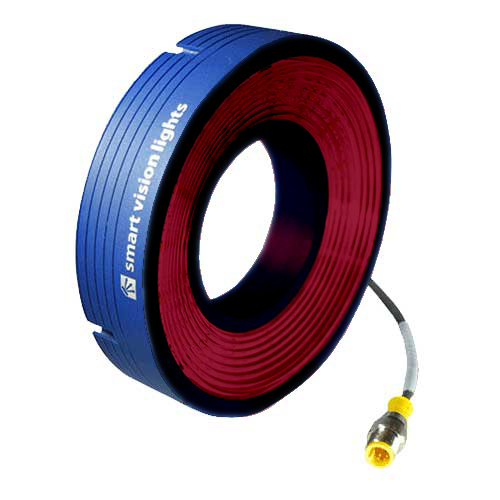

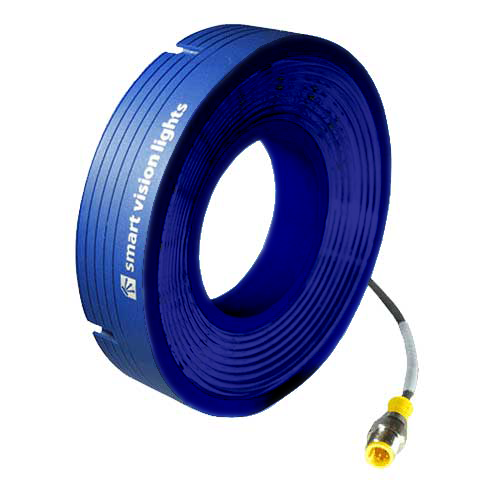

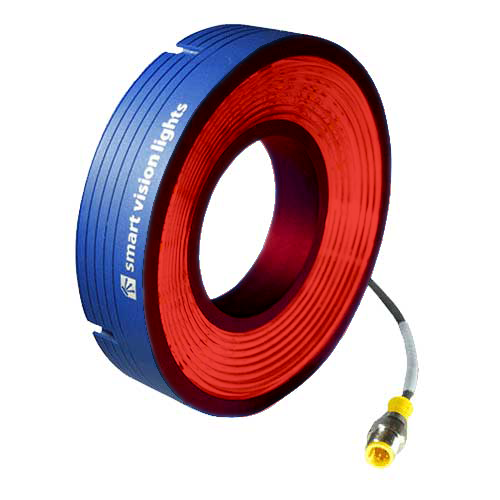

RMX140 Wavelength Colors


Multi-Drive Wiring
Wiring Configuration for CONSTANT ON Operation
Wiring Configuration for STROBE/PULSE Operation
MOUNTING USING ADP0002-KIT MOUNTING BRACKET
The RM140 and RMX140 lights may be mounted using the ADP0002-KIT mounting plate and optional thread adapters. To mount with this method, the ADP0002-KIT mounting bracket must be purchased. The ADP0002-KIT bolts to the rear of the light and has an M46 thread in its center. A Step Up or Step Down thread adapter must then be purchased to adapt your lens or camera to this M46 Thread. Please reference the datasheet for your light or camera in order to determine the appropriate thread adapter to purchase. MOUNTING USING T-NUTS
Mounting options include four (4) T-slots & four (4) M4 threaded holes.
Hardware included:
(2) M4x16 screws
(2) M4 nylon nuts

RMX140 ACCESSORIES

RMX140 Downloads

RMX140 Datasheet | Smart Vision Lights
RMX140 3D STEP Model | Smart Vision Lights
RMX140 2D DXF Drawing | Smart Vision Lights
RMX140 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:

RMX140-470
RMX140-530
RMX140-625
RMX140-WHI
