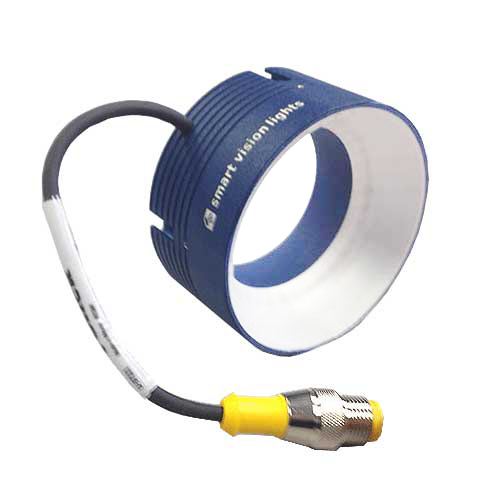

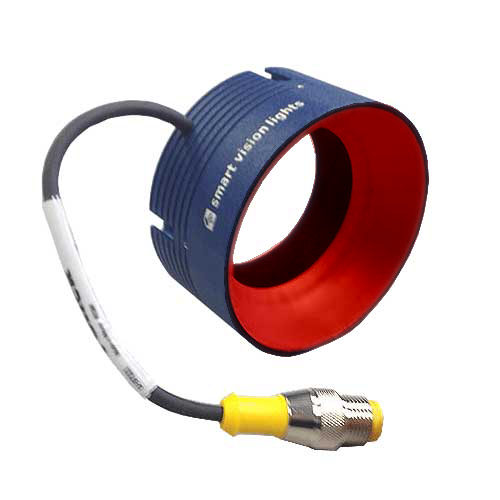

RM75 Dark Field Mini Ring Light (75mm)

Smart Vision LightsSKU: RM75-WHI
Lead Time: 3 Business Days

Color: WHITE
Price:
Sale price$656.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

RM75 Mini Ring Lights Product Details
  • Built-in Driver - No External Wiring To A Driver Needed
  • 6" (15 cm) - 5 Pin M12 Quick Connect Cable
  • Over-Current Protection
  • PNP and NPN Strobe Input
  • Continuous Operation or Strobe Mode
  • High Output LEDs

Smart Vision Lights RM75 Technical Specifications

RM75 Continuous Operation Specifications

Electrical Input 24 VDC +/- 5%
Input Current Max. 290 mA
Input Power Max. 7.0 W
PNP Trigger 4 mA @ 4VDC | 10 mA @ 12VDC | 20mA @ 24VDC
NPN Trigger 15 mA @ Common (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both) (see Wiring Configuration for more information)
Strobe Duration Min. 1 μs | Max. ∞
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14° - 104° F) | RH max 80% non-condensing humidity
Storage Temperature -20° to 70° C | RH max 80% non-condensing humidity
IP Rating IP50
Weight ~134 g
Compliances CE, IEC 62471, RoHS
Warranty 10 years*



RM75 OverDrive Operation Specifications

Electrical Input 24 VDC +/- 5%
Input Current Max. 2.5 A
Input Power Max. 63 W
PNP Trigger 4 mA @ 4VDC | 10 mA @ 12VDC | 20mA @ 24VDC
NPN Trigger 15 mA @ Common (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both) (see Wiring Configuration for more information)
Strobe Duration Min. 10 | Max. 50 ms (See SafeStrobe™ technology for more information)
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14° - 104° F) | RH max 80% non-condensing humidity
Storage Temperature -20° to 70° C | RH max 80% non-condensing humidity
IP Rating IP50
Weight ~134 g
Compliances CE, IEC 62471, RoHS
Warranty 10 years*



MINI RING LIGHT OVERVIEW
Smart Vision Lights' most compact ring lights are the RM75 and RM140 mini LED ring lights. These mini LED ring lights features our built-in Multi-Drive™ controller allowing users to operate the mini ring light continuously or in OverDrive™ Strobe mode. Our mini LED ring lights are extremely bright and available in multiple wavelengths to meet your application needs. All mini LED ring lights feature a standard 5-pin M12 connector makes wiring simple. The 1-10 V analog control line gives the user total control over intensity. The built-in Multi-Driver™ also protects the LEDs from premature degradation and failure caused by excessive heat by regulating the current delivered to the LEDs and limiting the duty cycle of the light.

RM75 LIGHT OVERVIEW
The built-in driver on the RM75 Series features the new Multi-Drive™ feature which allows the user to operate the light in constant ON operation or OverDrive depending on wiring method. The industry standard 5 Pin M12 connector makes for simple wiring. The 1-10V analog control line gives the user total control over intensity in the constant ON mode. Removing the signal will put the light into OverDrive™ mode.

Recommended illumination usage: Dark Field, Radial

Wavelength Colors
RM75 Wavelength Colors Smart Vision Lights

Multi-Drive Wiring
Wiring Configuration for CONSTANT ON Operation
Wiring Configuration for STROBE/PULSE Operation

MOUNTING USING ADP0001-KIT MOUNTING BRACKET
The RM75 and RMX75 lights may also be mounted using the ADP0001-KIT mounting plate and optional thread adapters. To mount with this method, the ADP0001-KIT mounting bracket must be purchased. The ADP0001-KIT bolts to the rear of the light and has an M46 thread in its center. A Step Up or Step Down thread adapter must then be purchased to adapt your lens or camera to this M46 Thread. Please reference the datasheet for your light or camera in order to determine the appropriate thread adapter to purchase. MOUNTING USING T-NUTS
Mounting options include four (4) T-slots & four (4) M4 threaded holes.
Hardware included:
(2) M4x16 screws
(2) M4 nylon nuts



RM75 ACCESSORIES

RM75 Downloads

RM75 Datasheet | Smart Vision Lights RM75 3D STEP Model | Smart Vision Lights
RM75 2D DXF Drawing | Smart Vision Lights RM75 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:
RM75-470
RM75-530
RM75-625
RM75-WHI
