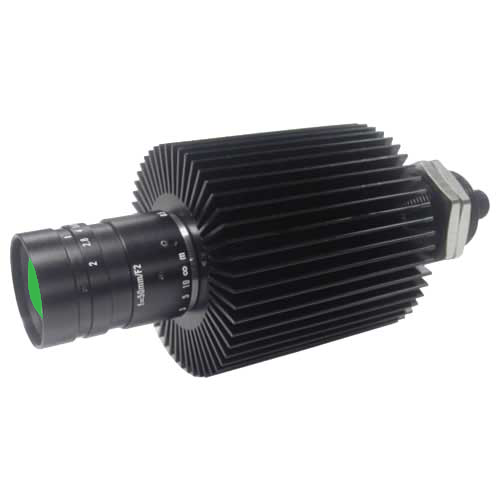

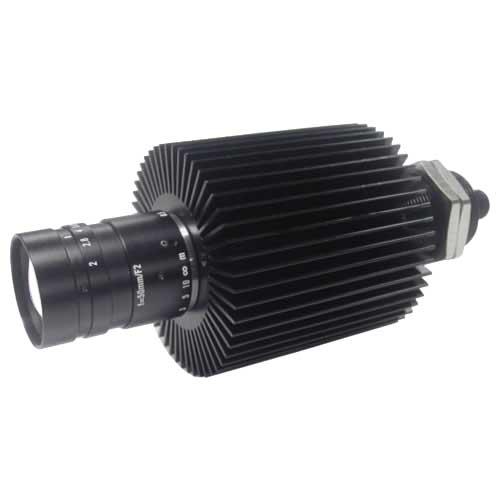

ODSXP30 Overdrive Structured Pattern Projector Light

Smart Vision LightsSKU: ODSXP30-WHI
Lead Time: 3 Business Days

Color: WHITE
Sale price$736.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


ODSXP30 30mm Focusable LED Projector 2nd Generation

Smart Vision Lights is pleased to release a new series of LED structured light projectors. LED projector uses patterns and optics to provide a focused structured light. SP pattern projectors integrate precisely etched masks. Any kind of pattern shape can be easily supplied, integrated and projected. The size of the projection area can be easily modified by interchanging the projection optics. Projectors integrate standard C-mount 2/3" lenses. Telecentric lenses can also be used for telecentric pattern projection.

Smart Vision Lights ODSXP30 Technical Specifications

ODSXP30 Continuous Operation Specifications

Electrical Input 24VDC +/- 5%
Input Current Max. 15A
Wattage  Max. 360 W
Storage Input  PNP > +4VDC or greater to activate | NPN > GND (<1VDC) to activate
PNP Line 4 mA @ 4VDC | 10 mA @ 12 V DC | 20 mA @ 24VDC
NPN Line 15 mA @ Ground (0VDC)
Continuous Mode NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
Red Indicator Led LED Strobe Indicator ON = Light Active
Green Indicator Led ON = Power
Analog Intensity The output is adjustable from 10–100% of brightness by a 1–10VDC signal.
(Jumpering pin 5 to pin 1 will provide maximum intensity)
Connection 5-pin M12 connector
Ambient Temperature -18º–40º C (0º–104º F)
IP Rating IP50
Weight ~413g
Compliances CE, RoHS, IEC 62471



IP Rating IP65
Weight ~0.1kg


Product Details

  • Multiple interchangeable patterns
  • SafeStrobe Technology
  • Driver built in - No External wiring to a driver
  • PNP and NPN Strobe input
  • Analog intensity 0-10VDC signal
  • 15A pulsed through LED
  • Up to 2000 strobes per second
  • 5-6x the intensity as the SPX30
  • Maximum Strobe Time 50mS
  • One, 9mm² Die High Current LEDs

SXP30 30mm Focusable LED Projector 2nd Generation
The ODSXP30 Series Projector Light offers the most intense projected pattern from an LED. This light features an Overdrive driver with NPN or PNP signal options. The 9mm² die size emits 5-6x the intensity as a constant current SXP30. The housing is constructed of finned 6061-T6 aluminum designed to dissipate as much heat as possible therefore allowing the LED to be strobed at 15A during the active ON period in comparison to 2A in the standard SX30. Multiple interchangeable pattern styles are available along with optional custom patterns. The ODSXP30 Series is able to project a thinner and define pattern of light compared to laser projectors making the ODSXP30 a more accurate light.

Wavelength Colors

ODSXP30 Wavelength Colors Smart Vision Lights

PATTERNS (Pattern required, not included)
A Variety of Standard Patterns are available. Custom Patterns can be made, with a minimum order of 10 patterns. Contact sales@machinevisiondirect.com with custom inquiries.

LENS SELECTION (Lens required, not included)
Please Reference the following chart to determine the approximate mounting distance and correct lens reqruied to generate the needed pattern

Wiring Configuration for operation

Multiple mounting brackets are available. All standard Prox Lights utilize an M30x1.5 Thread for mounting.

ODSXP30 Downloads

ODSXP30 Datasheet | Smart Vision Lights ODSXP30 3D STEP Model | Smart Vision Lights
ODSXP30 2D DXF Drawing | Smart Vision Lights ODSXP30 PDF Dimension Drawing | Smart Vision Lights

ODSXP30 with Lens Downloads

ODSXP30 with Lens Datasheet | Smart Vision Lights ODSXP30 with Lens 3D STEP Model | Smart Vision Lights
ODSXP30 with Lens 2D DXF Drawing | Smart Vision Lights ODSXP30 with Lens PDF Dimension Drawing | Smart Vision Lights


Possible Product Configurations:
