ODLW300 Connect-A-Light OverDrive Washdown Bar Light (12")

Smart Vision LightsSKU: ODLW300-WHI
Lead Time: 3 Business Days

Color: WHITE
Lens: Narrow 14 Deg (Standard)
Linear Polarizer: None
Price:
Sale price$1,106.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

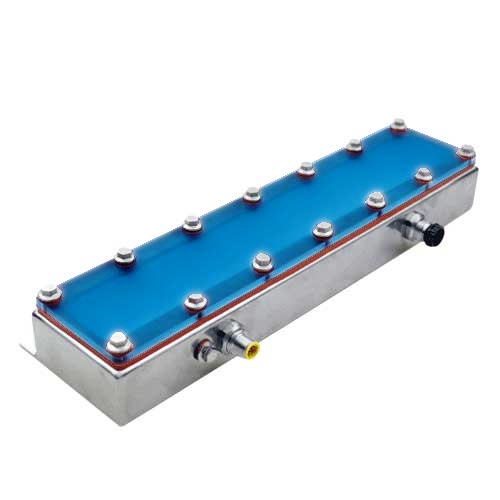

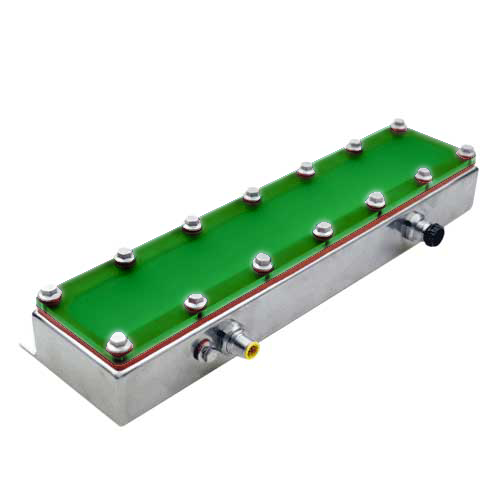

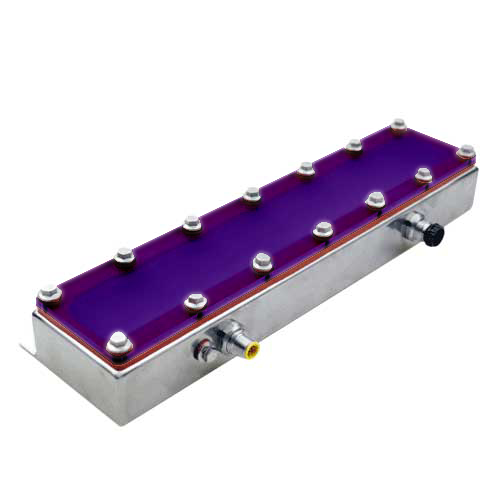

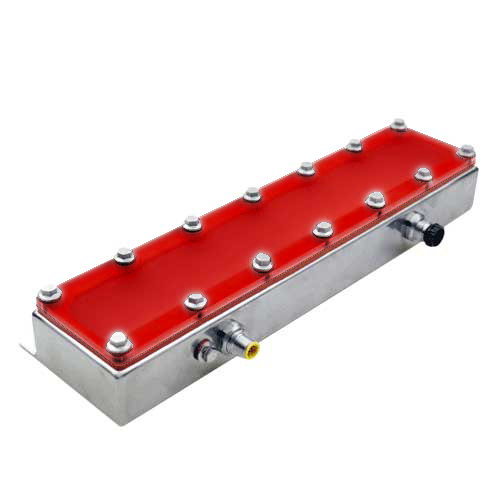

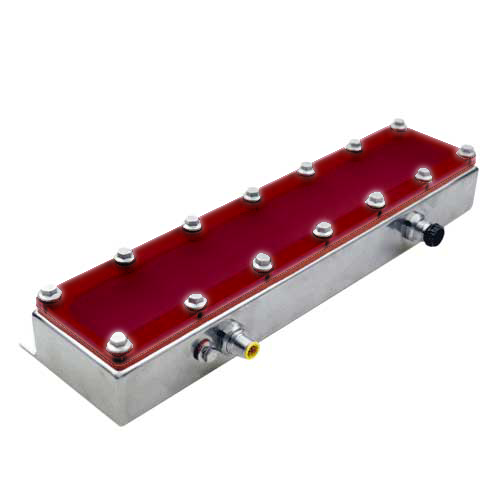

The ODLW300 series features a waterproof stainless-steel enclosure specially designed for food industry and washdown (harsh environment) where water and harsh detergents are present. The integrated OverDrive™ driver allows for a maximum strobe rate of 5000 strobes per second. NPN or PNP on/off triggers can be used to control the pulse of the light. The intensity of the light can be controlled via 1–10V remote analog signal or manual potentiometer. The light is rated IP68. Recommended illumination usage: Bright Field, Direct Lighting and Dark Field Product Details

  • IP68 rated stainless-steel housing
  • Designed to operate in food applications
  • Meets FDA compliance
  • Up to five times br ighter than a standard linear connect-a-light
  • SafeStrobe™ technology ensures protected operation of LEDs
  • Up to 5000 strobes per second
  • 5-Pin M12 quick disconnect
  • Daisy-chain up to six ODLW300 linear lights using a standard 5-pin M12 jumper cable
  • Driver built-in
  • PNP and NPN trigger signal input
  • Dimmable via built in potentiometer
  • Analog intensity 1-10V DC signal line

Smart Vision Lights ODLW300 Technical Specifications

ODLW300 Continuous Operation Specifications

Electrical Input 24VDC +/5%
Input Current Max. 4.6 A draw during strobe
Input Power  Max. 110 W during strobe
Trigger Input  PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both)
PNP Line  2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC
NPN Line 14.4 mA @ Common (0VDC)
Duty Cycle  Max. 10%
Strobe/Pulse Time  Max. 5000 SPS (Strobes Per Second) | Max. Single Pulse = 125ms
Potentiometer 270º turn pot intensity control of 10%100%. Turn clockwise to increases intensity.
Analog Intensity The output is adjustable from 10%100% of brightness by a 1 10VDC signal.
Connection 5-pin M12 connector
Ambient Temperature  -18º–40ºC (0º–104ºF)
IP Rating
IP68
Weight ~1430 g
Power Supply A separate power supply for OverDriveTM (high-pulse operation) is recommended. See Input Current for value.
Compliances  CE, RoHS, IEC 62471
Warranty UV LEDS have a 2 year warranty, all other LEDS have a 10 year warranty. For complete warranty information, visit smartvisionlights.com/warranty.



ODLW300 Downloads

ODLW300 Datasheet | Smart Vision Lights ODLW300 3D STEP Model | Smart Vision Lights
ODLW300 2D DXF Drawing | Smart Vision Lights ODLW300 PDF Dimension Drawing | Smart Vision Lights



Possible Part Combinations:

ODLW300-365
ODLW300-395
ODLW300-470
ODLW300-505
ODLW300-530
ODLW300-625
ODLW300-850
ODLW300-WHI
ODLW300-365-W
ODLW300-395-W
ODLW300-470-W
ODLW300-505-W
ODLW300-530-W
ODLW300-625-W
ODLW300-850-W
ODLW300-WHI-W
ODLW300-470-L
ODLW300-505-L
ODLW300-530-L
ODLW300-625-L
ODLW300-850-L
ODLW300-WHI-L
ODLW300-470-LPI
ODLW300-505-LPI
ODLW300-530-LPI
ODLW300-625-LPI
ODLW300-WHI-LPI
ODLW300-470-W-LPI
ODLW300-505-W-LPI
ODLW300-530-W-LPI
ODLW300-625-W-LPI
ODLW300-WHI-W-LPI
ODLW300-470-L-LPI
ODLW300-505-L-LPI
ODLW300-530-L-LPI
ODLW300-625-L-LPI
ODLW300-WHI-L-LPI
