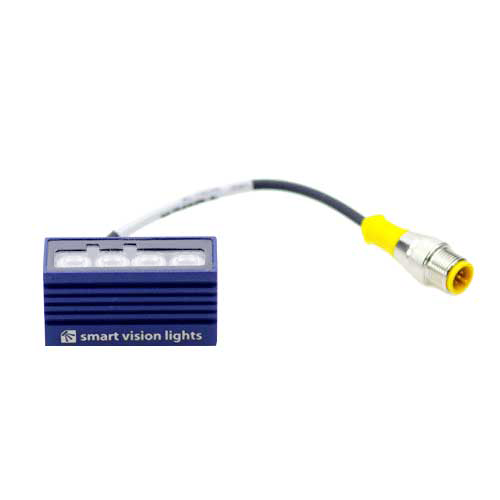

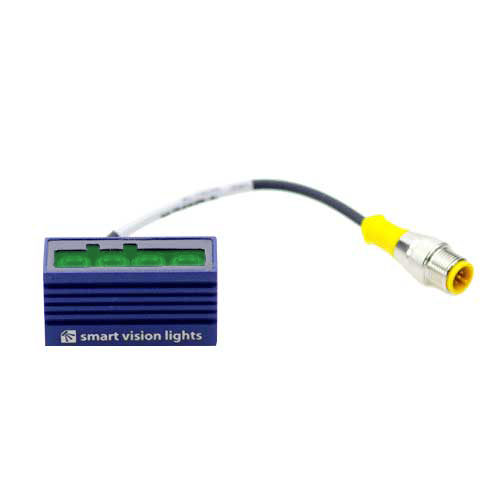

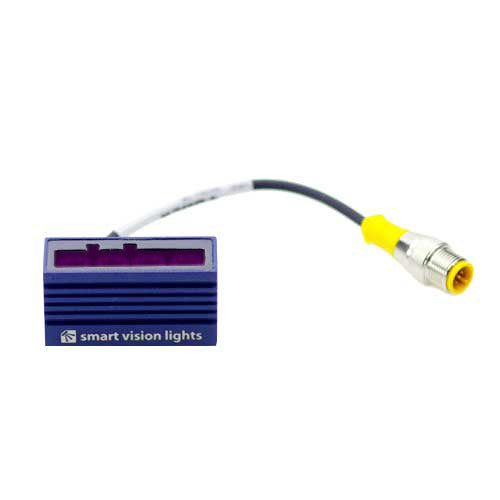

LM45 Mini Linear Light

Smart Vision LightsSKU: LM45-WHI
Lead time: 3 Business Days

Color: WHITE
Lens Option: Standard 40 Degree
Price:
Sale price$384.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Description

Smart Vision Lights LM45 Mini Linear Light

The Smart Vision Lights (SVL) LM45 Mini Linear Light features a built in driver which includes Multi-Drive™ capabilities. Multi-Drive allows the user to operate this light in constant ON operation or OverDrive (High Intensity Strobe) operation. The industry standard 5 Pin M12 connector makes for simple wiring and the multiple lensing options gives this light a broad spectrum of illumination area. The 0-10V analog control gives the user total control over intensity.

Product Details

  • Driver Built In - No External Wiring To A Driver
  • 5 Pin M12 Quick Disconnect Cable
  • Over-Current Protection
  • PNP and NPN Strobe Input
  • Continuous Operation or Strobe Mode
  • (4) High Output LEDs

Smart Vision Lights smallest, most compact linear lights are the mini LED linear lights. (LM Family). These lights are extremely bright and available in multiple wavelengths to meet your application needs.

Smart Vision Lights LM45 Technical Specifications

LM45 Continuous Operation Specifications

Electrical Input 24 VDC +/- 5%
Input Current Max. 140 mA
Input Power Max. 3.36 W
PNP Trigger 2.8 mA @ 4 VDC | 8.8 mA @ 12 VDC | 17.6 mA @ 24VDC
NPN Trigger  14.4 mA @ Common (0VDC)
Trigger Input  PNP > +4 VDC (24 VDC max.) to activate or NPN > GND (<1VDC) to activate (not both)
Mode Control  Connect pin 5 to 1-10 VDC (10 - 100% output);
24 VDC (Max)
Strobe Duration Min. 30 μs | Max. ∞
Strobe Trigger Latency  10 μs
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.1
Duty Cycle  Not applicable
Analog Intensity The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity.
Connection 5-pin M12 connector
Operating Temperature -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature  -20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity
IP Rating IP65
Weight ~0.28 lb | ~128 g
Compliances CE, IEC-62471, RoHS
Warranty 10 years2



LM45 OverDrive Operation Specifications

Electrical Input 24 VDC +/- 5%
Input Current Peak 1.26 A
Input Power Peak 30.24 W
PNP Trigger 2.8 mA @ 4 VDC | 8.8 mA @ 12 VDC | 17.6 mA @ 24VDC
NPN Trigger  14.4 mA @ Common (0VDC)
Trigger Input  PNP > +4 VDC (24 VDC max.) to activate or NPN > GND (<1VDC) to activate (not both)
Mode Control  Connect pin 5 to GND (See wiring configuration for more information)
Strobe Duration Min. 30 μs | Max. 50 ms
Strobe Trigger Latency  6 μs
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.1
Duty Cycle  Max. 10%1
Analog Intensity The output is adjustable from 10% - 100% of intensity limit by a 1 - 10 VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity.
Connection 5-pin M12 connector
Operating Temperature -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature  -20° to 70° C ( -4° to 158° F) | RH max 80% non-condensing humidity
IP Rating IP65
Weight ~0.28 lb | ~128 g
Compliances CE, IEC-62471, RoHS
Warranty 10 years2



Multi-Drive™

The Multi-Drive™ controller combines the Constant ON operation and OverDrive Strobe (high pulse operation) into one easy to use product. The Multi-Drive™ controller allows the user to run the product in Constant ON operation or pulse/strobe the light at the maximum allowed intensity by the LED manufacturer by simply setting the product parameters. The built-in Multi-Drive™ also protects the LEDs from premature degradation and failure caused by excessive heat by regulating the current delivered to the LEDs and limiting the duty cycle of the light.

Wavelength Colors

Smart Vision Lights LM45 Mini Linear Bar Light Wavelength

Multi-Drive Wiring
Wiring Configuration for CONSTANT ON Operation
Wiring Configuration for STROBE/PULSE Operation
MOUNTING
Mounting is done by use of the rear T-slot mount
Includes (2) M4x16 screws and (2) M4 nylon nuts

LM45 Downloads

LM45 Datasheet | Smart Vision Lights LM45 3D STEP Model | Smart Vision Lights
LM45 2D DXF Drawing | Smart Vision Lights LM45 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:
LM45-470
LM45-530
LM45-625
LM45-850
LM45-WHI
LM45-470-N16
LM45-530-N16
LM45-625-N16
LM45-850-N16
LM45-WHI-N16
LM45-470-N25
LM45-530-N25
LM45-625-N25
LM45-850-N25
LM45-WHI-N25
LM45-470-L
LM45-530-L
LM45-625-L
LM45-850-L
LM45-WHI-L
LM45-470-W
LM45-530-W
LM45-625-W
LM45-850-W
LM45-WHI-W
