RL2115 Compact Aimed Dark Field Light

Advanced IlluminationSKU: RL2115-395I3S
Lead Time: 1 Week

Color: UV (395nm)
Driver: ICS 3S (I3S)
Sale price$624.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


Compact Aimed Dark Field Lights - RL Series

RL2115 Specifications:

Brand Advanced Illumination
Series RL2115
Wavelength VARIES
Driver I3S
Ingress Protection Not Rated
Inner Diameter 18.6mm
Outer Diameter 54.5 mm
Illuminated Field of View .0 mm
Weight 163g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

The RL2115 is characterized as a Compact Aimed Dark Field ring light.

Precisely aimed LEDs provide a specific and repeatable light pattern on the imaging plane.

There are a wide range of wavelengths available from UV to IR.

General Specs

Electrical Specifications


Normal Operating Temperature

0 - 60°C

Weight 57.2g (2.02oz)
Standard Cable Information 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 880
Group 1 (Low-Risk) Applicable Wavelengths: 470, 520, 625, 660, WHI
Group 2 (Moderate-Risk) Applicable Wavelengths: 395
Compliance CE, RoHS, IEC 62471
IP Rating Not Rated
Lumen Maintenance L70 = 50,000 Hours


Available Wavelengths

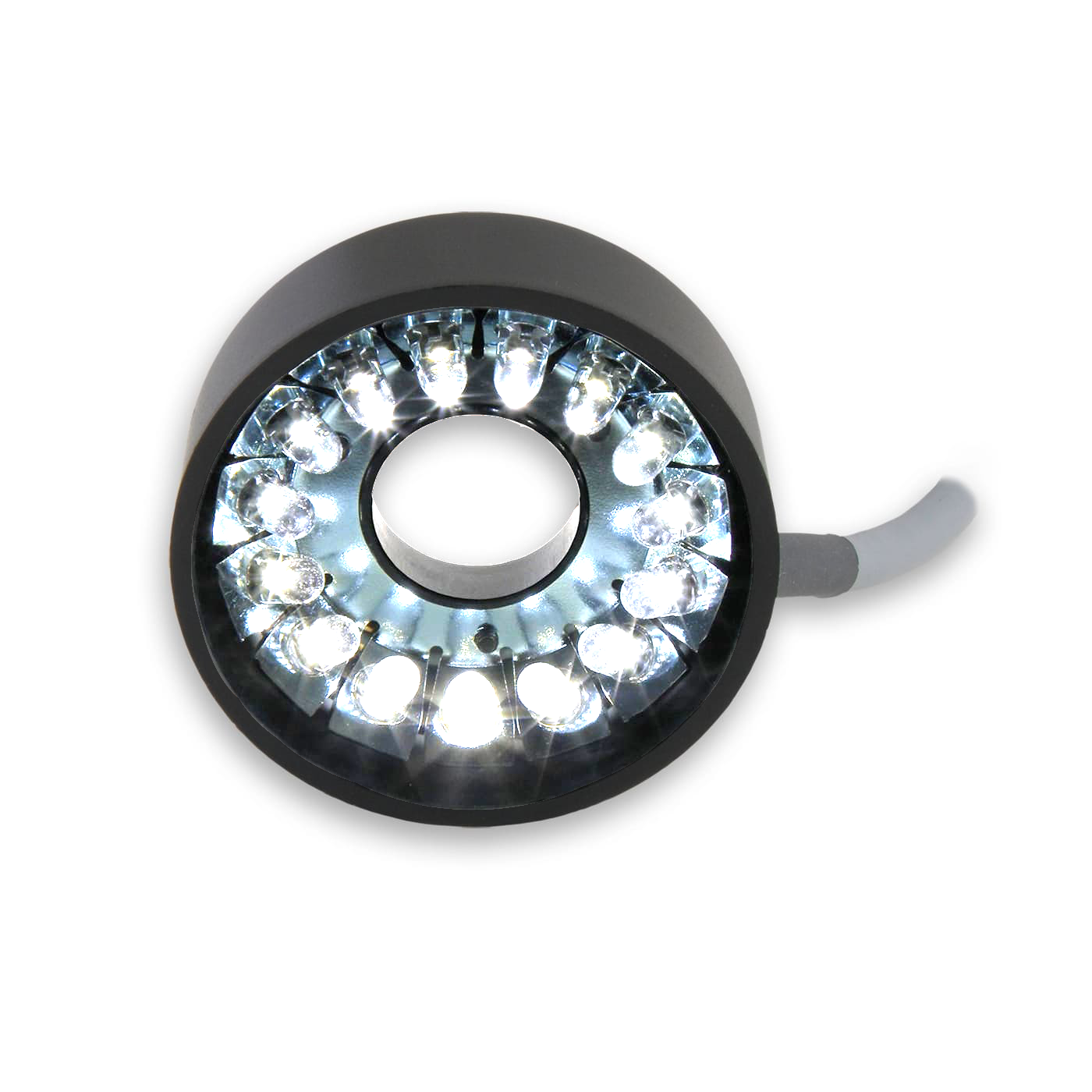

Advanced Illumination White Lights
Advanced Illumination 395nm Ultra-Violet (UV) Light

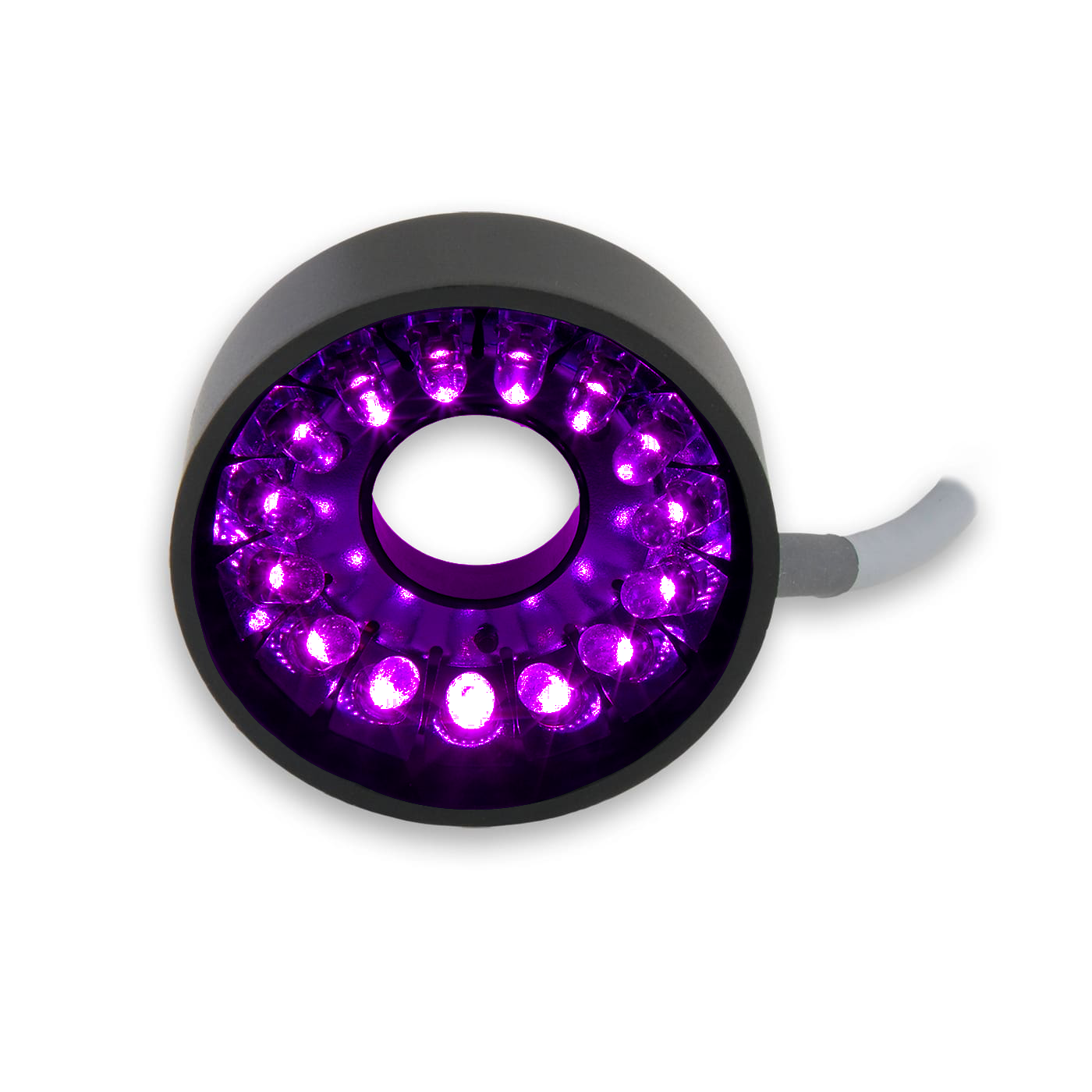

395nm Ultra-Violet (UV)
Advanced Illumination 470nm Blue Light

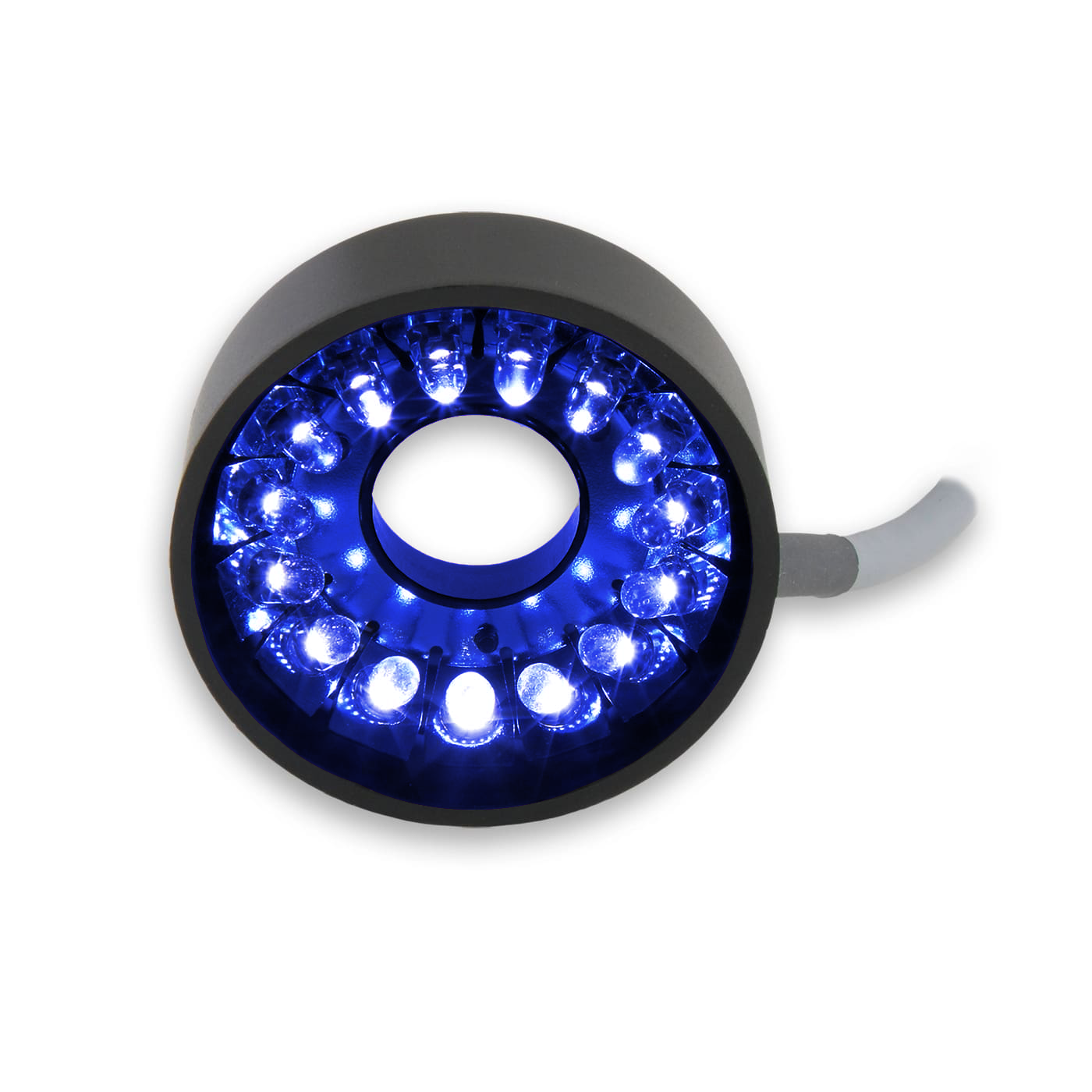

470nm Blue
Advanced Illumination 520nm Green Light

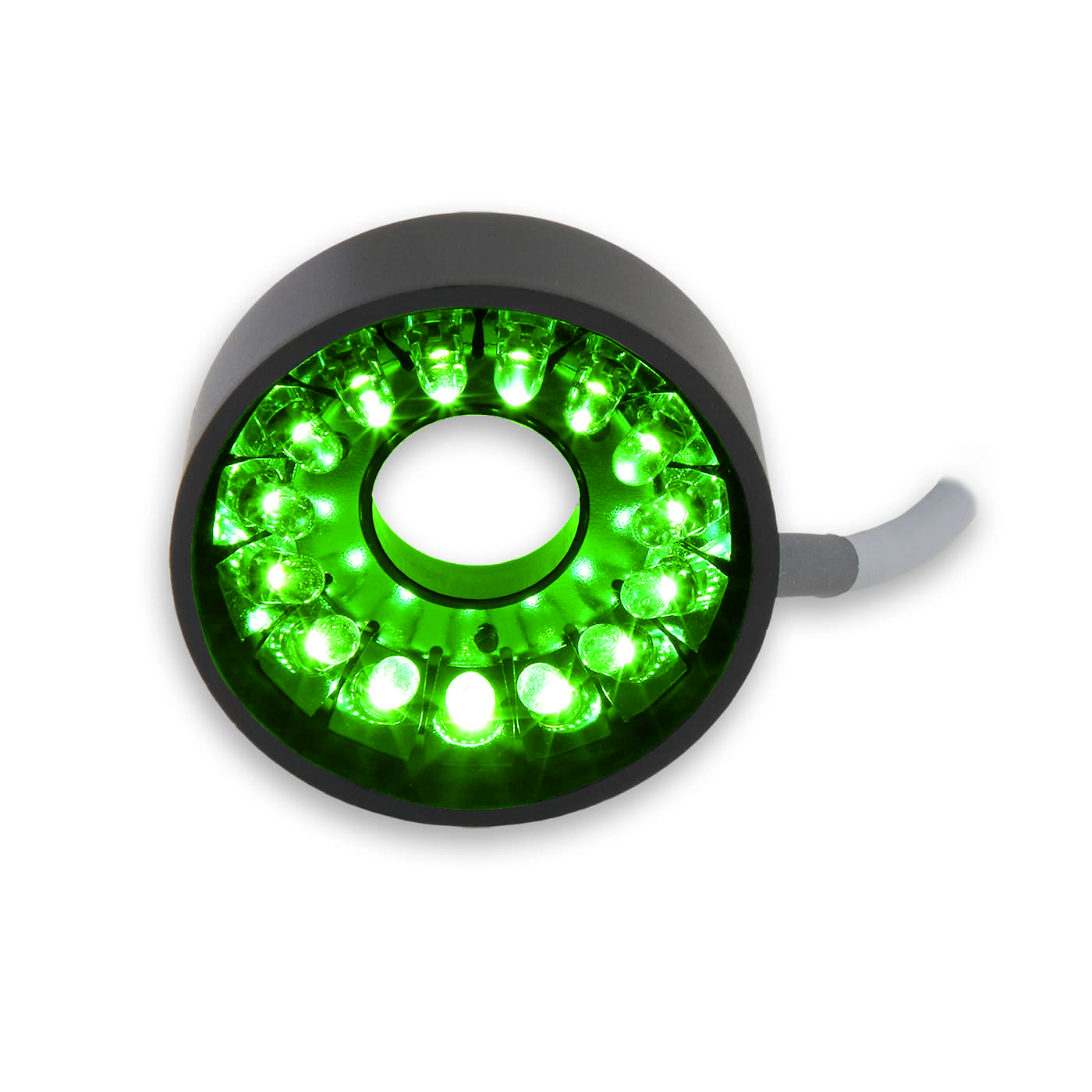

520nm Green
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 660nm Red Light
660nm Red
Advanced Illumination 880nm Infra-Red (IR) Light

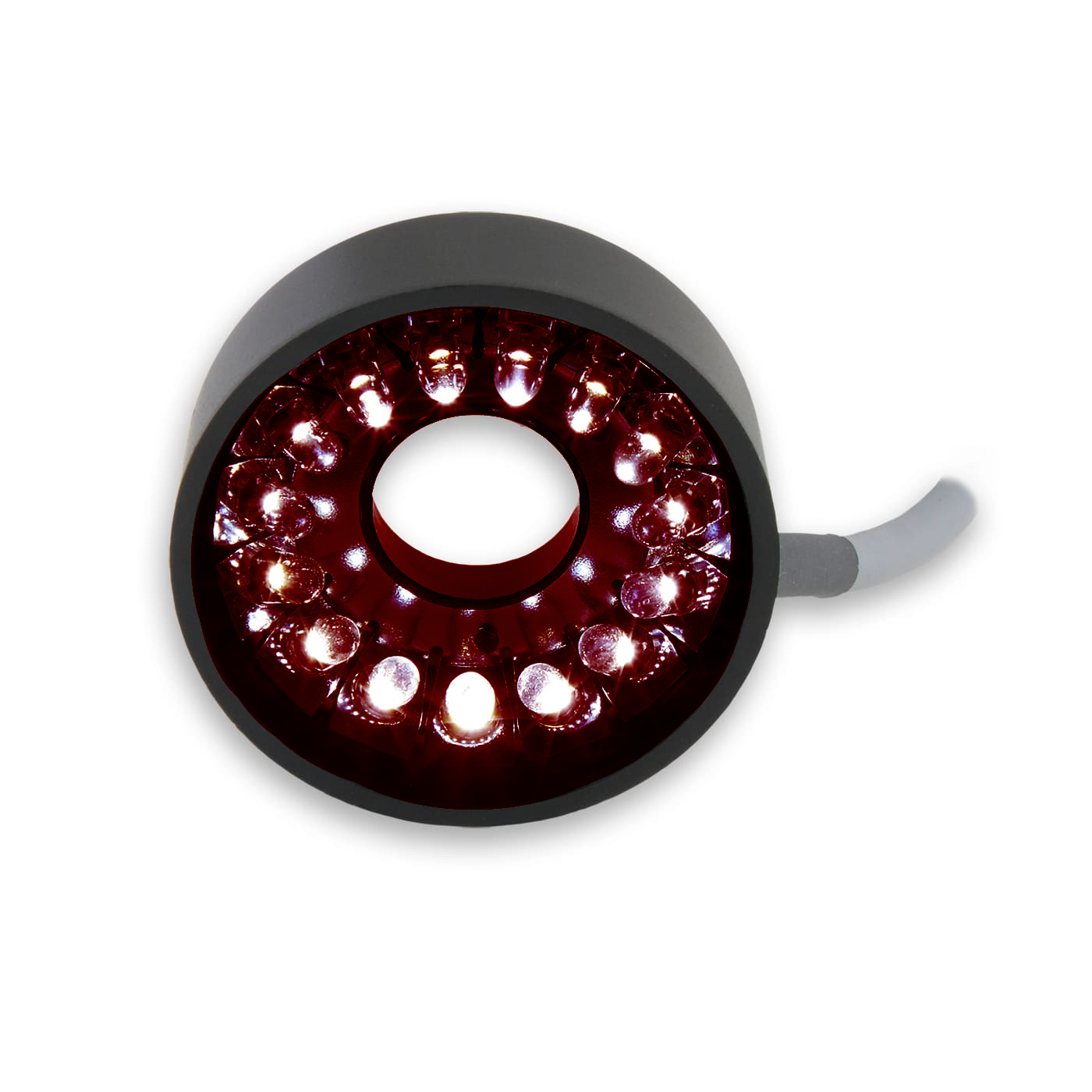

880nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 RL2115 Compact Aimed Dark Field Light Mechanical Specs | Advanced Illumination

 Optical Specs

 RL2115 Compact Aimed Dark Field Light Optical Specs | Advanced IlluminationRL2115 Compact Aimed Dark Field Light Optical Specs | Advanced Illumination

Electrical Specs

 RL2115 Compact Aimed Dark Field Light Electrical Specs | Advanced Illumination

Control Specs

 RL2115 Compact Aimed Dark Field Light Control Specs | Advanced Illumination

Part No Key

 RL2115 Compact Aimed Dark Field Light Part No Key | Advanced Illumination

Advanced Illumination RL2115 Downloads:

Advanced Illumination RL2115 Datasheet | Machine Vision Direct
Advanced Illumination RL2115 CAD PDF | Machine Vision Direct
Advanced Illumination RL2115 CAD DXF | Machine Vision Direct
Advanced Illumination RL2115 CAD STEP MODEL | Machine Vision Direct
