PC052-49 Circular Polarizer Filter M49-0.75


Price:
Sale price$97.50 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

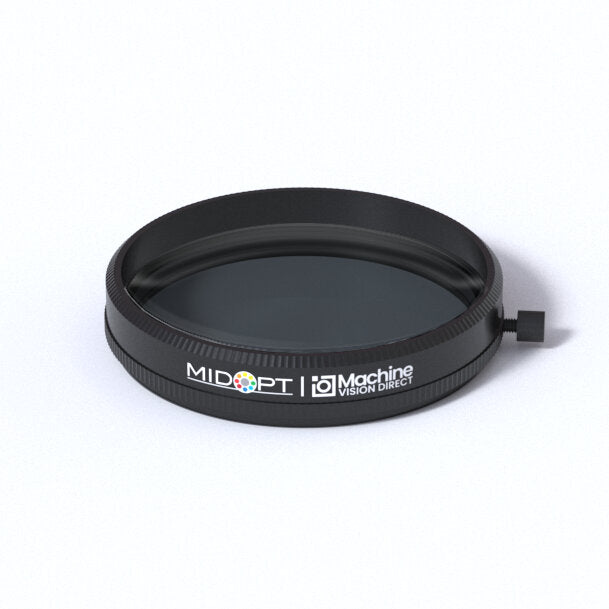

MidOpt PC052-49 Circular Polarizer Filter

Used to eliminate specular reflections and hot spots, Circular Polarizers in rotating mounts allow maximum flexibility and ease of use. However, in most machine vision applications, we recommend the use of linear rather than circular polarizers. Circular polarizers are recommended for eliminating glare from spherical surfaces or in cases where an auto-focus or metering system is used involving a beam splitter or mirror mounted in the optical path inside the camera.

The best results are achieved when circular polarizing film is also used over the light source. Left-handed and right-handed polarization directions are available.

MidOpt PC052-49 Technical Specifications:

Product Line / Series Polarizing Filters
Filter Model PC052
Filter Type Circular Polarizer
StablEDGE No
Useful Range 400nm - 700nm
Tolerance Not Specified
Peak Transmission Not Specified
Surface Quality 40/20
Filter Size 49mm
Filter Thread M49-0.75
Outer Diameter 54mm
Clear Aperture 47mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM Not Specified
Average Transmission Not Specified

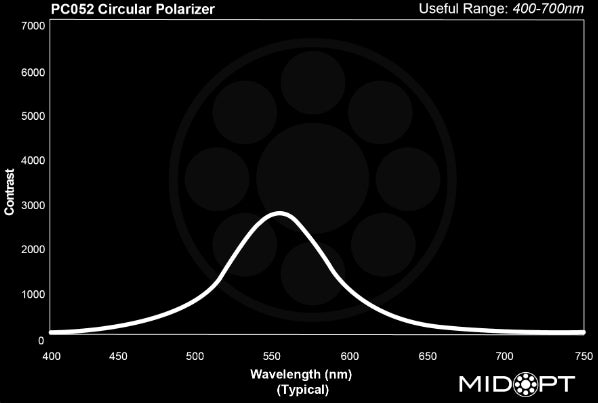

Contrast Ratio 700:1
Brand Midwest Optical Systems
