Description

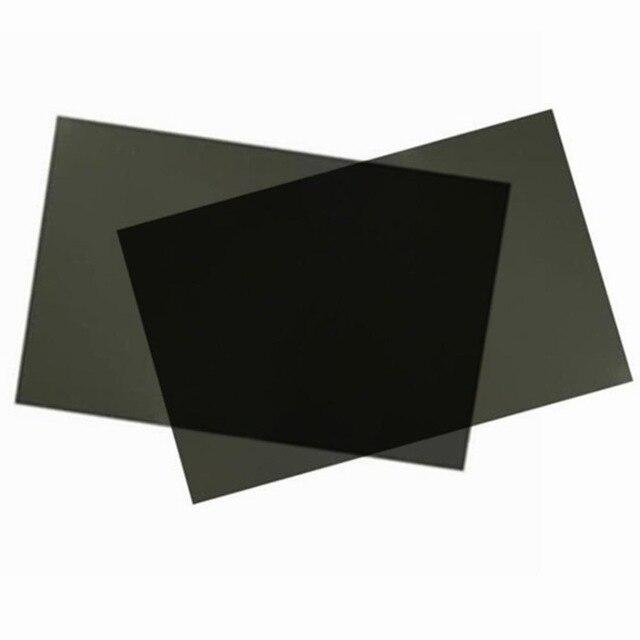

MidOpt HT025-R50 High Contrast Linear Polarizing Film
MidOpt’s HT025 Linear Polarizing Film with is resistant to high temperature illumination. It solves the temperature sensitivity issues that are common with standard polarizing films, which typically fail or curl when introduced to high heat for an extended period of time.
Temperature Rating: 100°C x 240 hours & 90°C x 1000 hours
Polarizers are designed to reduce specular glare by passing only the light polarized in the direction perpendicular to the reflected light (glare). In addition, they help improve contrast, increase color saturation and detect imperfections in transparent materials. MidOpt Polarizing Filters can be easily and securely mounted to your lens and light source for maximum extinction or glare reduction.
MidOpt HT025 Linear Polarizing Filter Technical Characteristics
Useful Range: | 400-700nm |
Contrast Ratio |
5000:1 |
Thickness |
0.025" |
Custom Shapes
Polarizing Films are available in multiple thicknesses and can be custom laser cut to fit any light source with a maximum usable width of 16.5″ and length up to 300′. For custom shapes and high volumes Contact Us
About Midwest Optical Systems Polarizers:
Polarizers are designed to reduce specular glare by passing only the light polarized in the direction perpendicular to the reflected light (glare). In addition, they help improve contrast, increase color saturation and detect imperfections in transparent materials. MidOpt Polarizing Filters can be easily and securely mounted to your lens and light source for maximum extinction or glare reduction.
- Contrast ratios average up to 10,000:1
- Linear, circular and wire grid polarizers are available for visible (VIS) and near-infrared (NIR) spectrums
- Rotating mount with locking thumb screw to fine tune glare reduction
- Exceptional surface quality; 40/20 scratch/dig
Polarizing Filter & Film Applications:
Polarizers are commonly used to reduce glare from non-metallic in objects with smooth surfaces or surfaces covered with grease, oil or liquid. For best results, use an optical-grade Polarizer over the lens and Polarizing Film over the light source. The PR120/PG120 offers ultra-high contrast and an anti-reflection oleophobic coating.
For Best Results: Polarizing Film should be used over the light source in conjunction with a Polarizing Filter over the camera lens.
MidOpt HT025 Part Numbers:
MidOpt HT025-R50MidOpt HT025-R100
MidOpt HT025-R150
MidOpt HT025-R215
MidOpt HT025-R330
MidOpt HT025-R330
MidOpt HT025-R420x304.8
MidOpt HT025-R420
