BP800-49 Broad Bandwidth NIR Bandpass Filter M49-0.75


Price:
Sale price$172.20 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

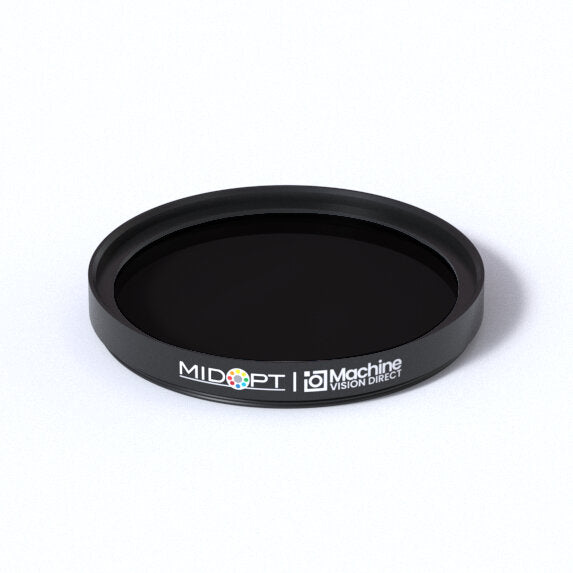

MidOpt BP800-49 Broad Bandwidth NIR Bandpass Filter

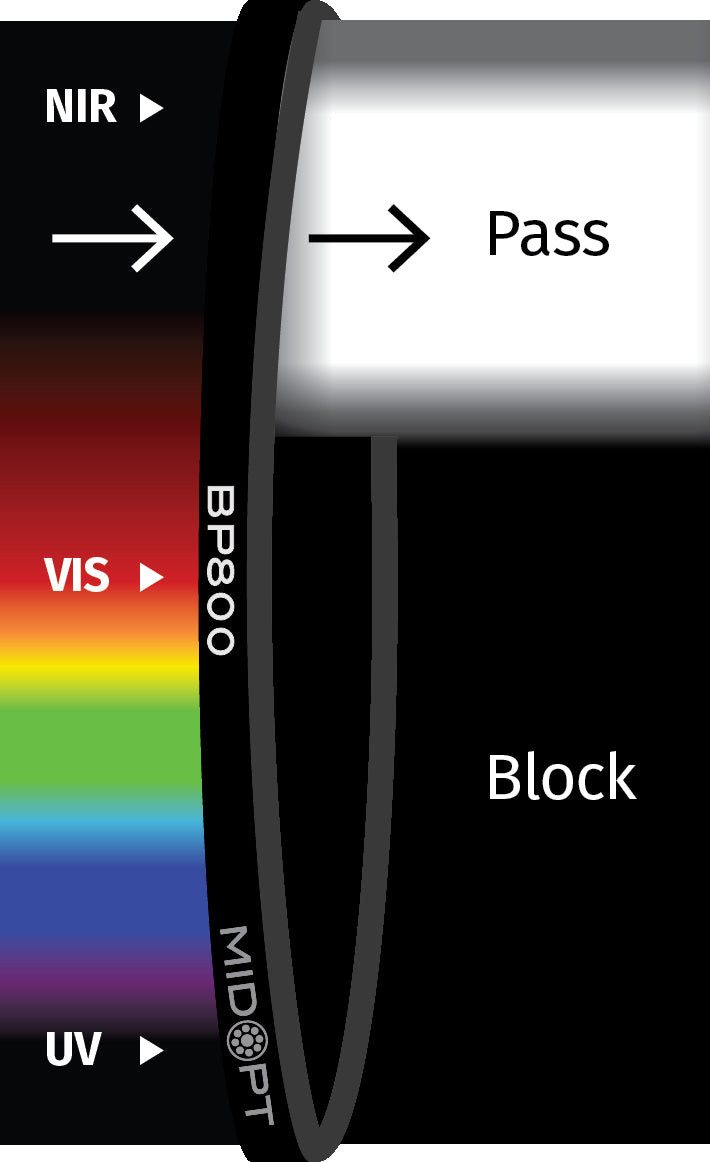

The BP800 NIR Bandpass Filter for Machine Vision is recommended for use with broadband (typically filtered) near-infrared lighting; this single substrate, anti-reflection coated filter is a comprehensive absorptive filter. Among all absorptive filter glasses, it is unique in its ability to retain its opacity at thicknesses of 1mm and below.

MidOpt BP800-49 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP800
Filter Type Broad Bandwidth NIR Bandpass
StablEDGE Yes

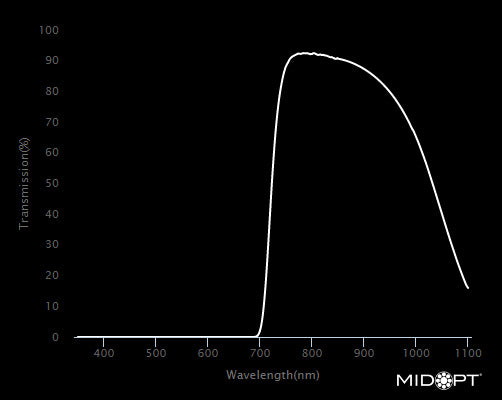

Useful Range 745nm - 950nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 49mm
Filter Thread M49-0.75
Outer Diameter 54mm
Clear Aperture 47mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 315nm
Compatible LED 800nm
Average Transmission Not Specified
Brand Midwest Optical Systems
