BP735-37.5 Broad Bandwidth NIR Bandpass Filter M37.5x0.5

Midwest Optical SystemsSKU: BP735-37.5

Price:
Sale price$138.85 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MidOpt BP735-37.5 Broad Bandwidth NIR Bandpass Filter

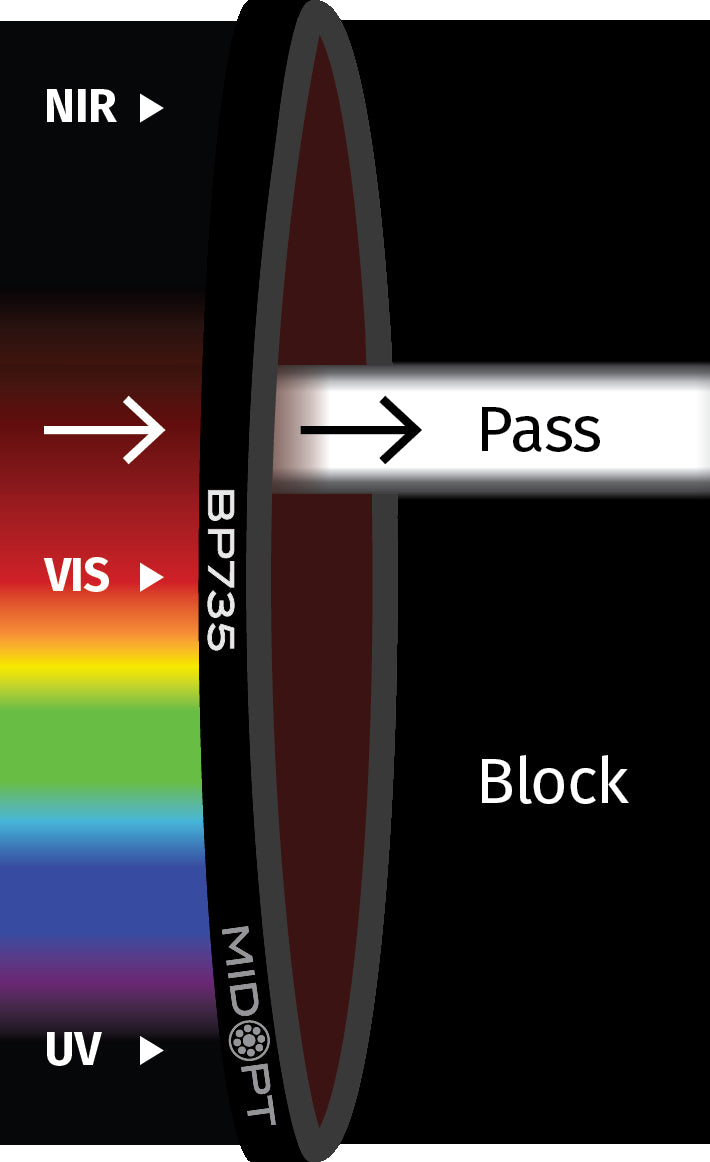

Recommended for use with near-infrared LEDs, BP735 filters are designed for viewing subjects in the 700-770nm range. Blocks all UV and visible light, optimizing results achieved with IR lighting used in traffic control and license plate recognition systems.

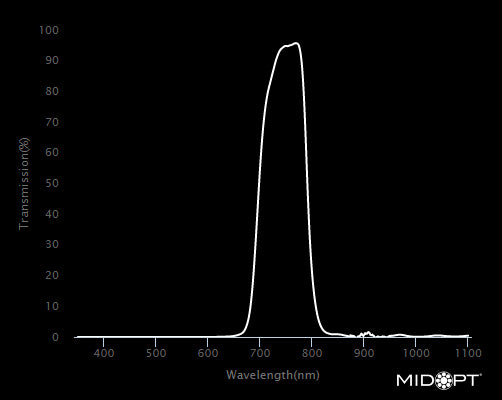

MidOpt BP735-37.5 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP735
Filter Type Broad Bandwidth NIR Bandpass
StablEDGE Yes
Useful Range 715nm - 780nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 37.5mm
Filter Thread M37.5x0.5
Outer Diameter 41mm
Clear Aperture 34mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 90nm
Compatible LED 740nm
Average Transmission Not Specified
Brand Midwest Optical Systems
