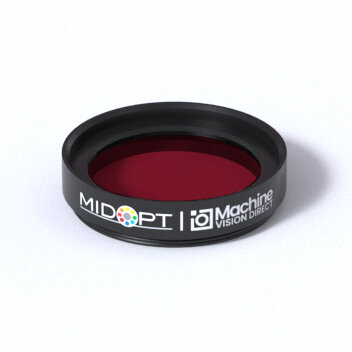

MidOpt BP660-27 Broad Bandwidth Dark Red Bandpass Filter

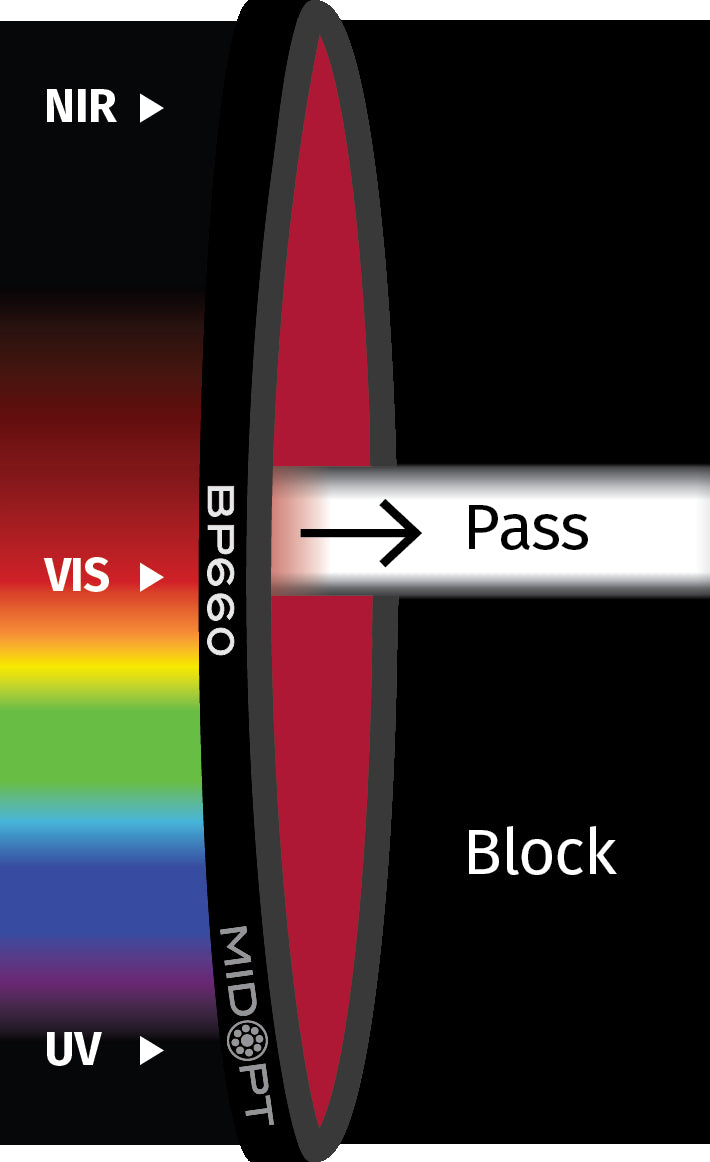

BP660 Dark Red Bandpass Filters are recommended for use with 650-680nm LED and laser diode lighting. Because of the ample passband and excellent in-band transmission work well with all camera-related applications in this range.

MidOpt BP660-27 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP660
Filter Type Broad Bandwidth Dark Red Bandpass
StablEDGE Yes
Useful Range 640nm - 680nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 27mm
Filter Thread M27x0.5
Outer Diameter 32.5mm
Clear Aperture 22.5mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 60nm
Compatible LED 660nm
Average Transmission Not Specified
Brand Midwest Optical Systems
