BP550-37.5 Broad Bandwidth NIR and UV Block Visible Bandpass Filter M37.5x0.5

Midwest Optical SystemsSKU: BP550-37.5

Price:
Sale price$138.85 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

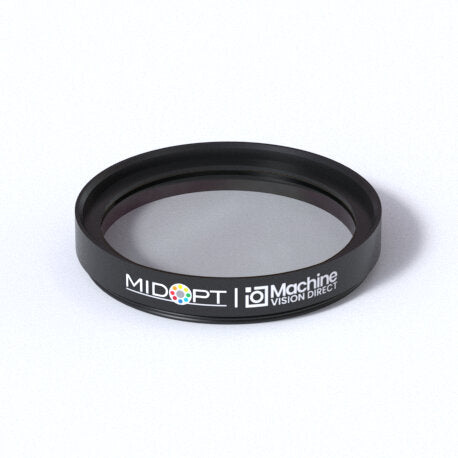

MidOpt BP550-37.5 Broad Bandwidth NIR and UV Block Visible Bandpass Filter

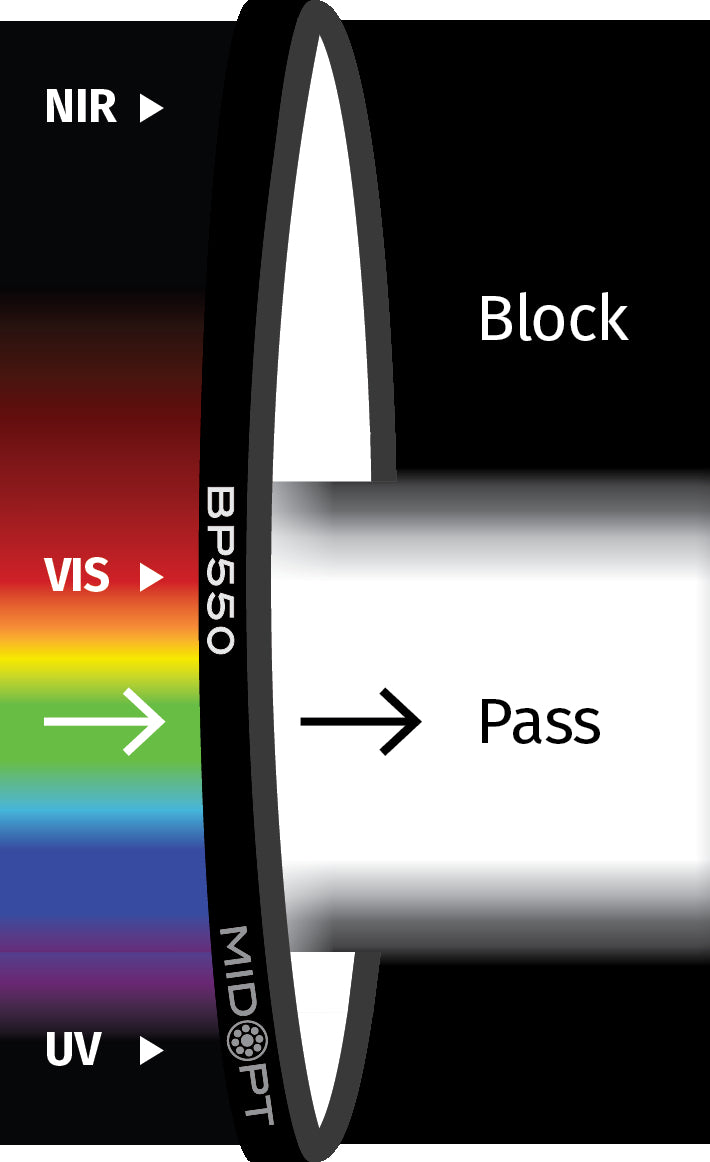

BP550 filters effectively pass all visible light and block all light outside the visible range without “discoloring” the image. This single substrate, hard-coated filter is designed for use in full-color, white light applications where either IR or UV light (or both) may be present. Made using a low-expansion glass substrate to withstand high temperatures.

Standard thickness is 2mm, but can also be supplied in 1mm thickness and a variety of custom, unmounted size, and substrate options, particularly for over-the-camera-sensor applications

MidOpt BP550-37.5 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP550
Filter Type Broad Bandwidth NIR and UV Block Visible Bandpass
StablEDGE No

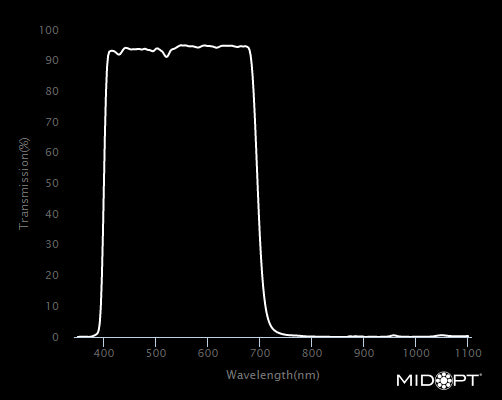

Useful Range 405nm - 690nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 37.5mm
Filter Thread M37.5x0.5
Outer Diameter 41mm
Clear Aperture 34mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 300nm
Average Transmission Not Specified
Brand Midwest Optical Systems
