BP485-25.5 Broad Bandwidth NIR Block Absorptive Visible Bandpass Filter M25.5x0.5

Midwest Optical SystemsSKU: BP485-25.5

Price:
Sale price$111.10 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

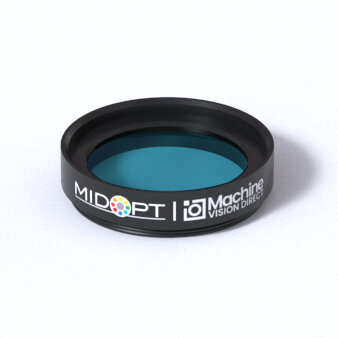

MidOpt BP485-25.5 Broad Bandwidth NIR Block Absorptive Visible Bandpass Filter

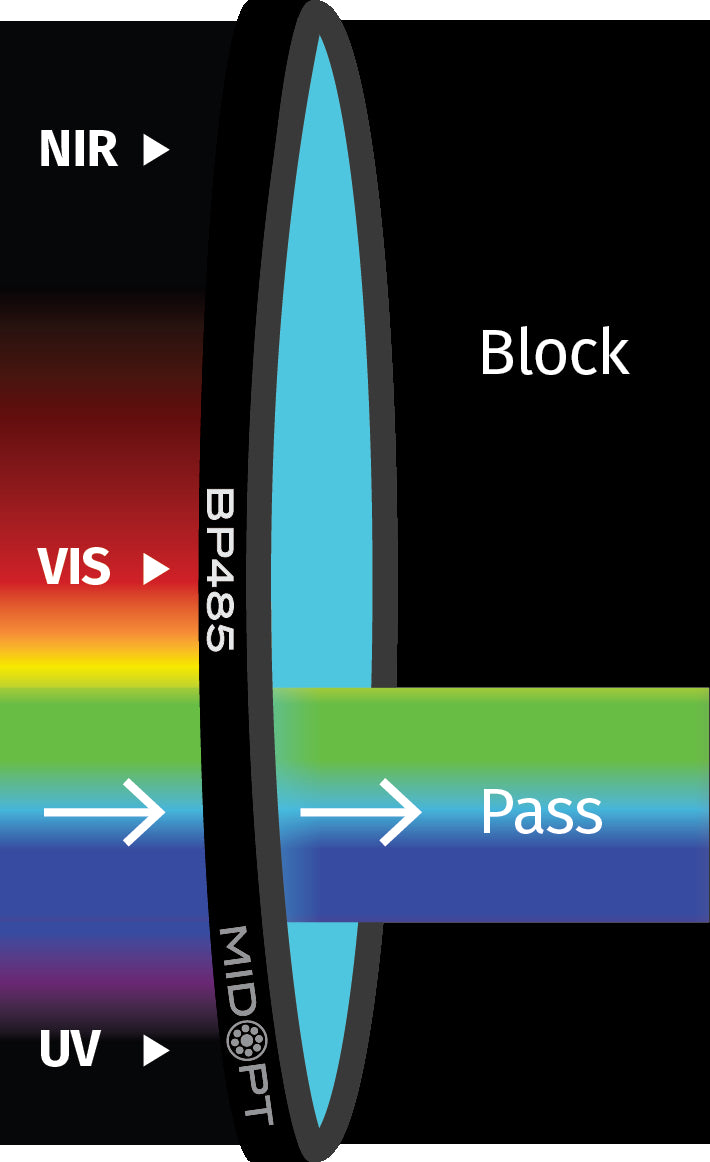

BP485 is commonly used as an internal infrared-blocking filter in cameras. When working with any camera that has had its internal filter removed, a mounted BP485 filter can also be considered to, when desired, allow it to once again work like the unmodified camera. BP485 is AR coated on both sides, and its spectral response in the blue portion of the spectrum is excellent compared to other porous IR-blocking filters.

MidOpt BP485-25.5 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP485
Filter Type Broad Bandwidth NIR Block Absorptive Visible Bandpass
StablEDGE Yes

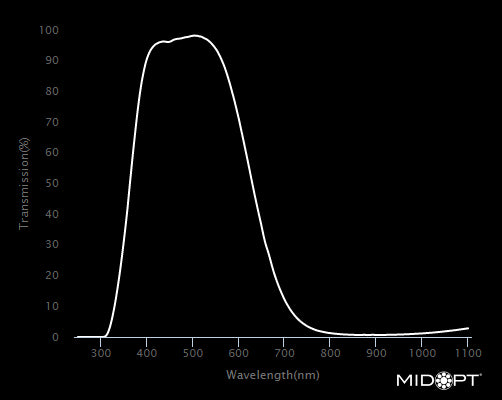

Useful Range 380nm - 585nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 25.5mm
Filter Thread M25.5x0.5
Outer Diameter 29mm
Clear Aperture 22.5mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 285nm
Average Transmission Not Specified
Brand Midwest Optical Systems
