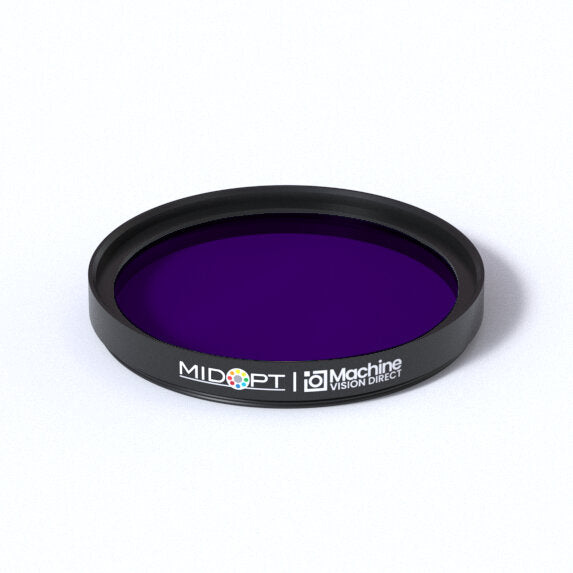

MidOpt BP450-49 Broad Bandwidth Indigo Bandpass Filter

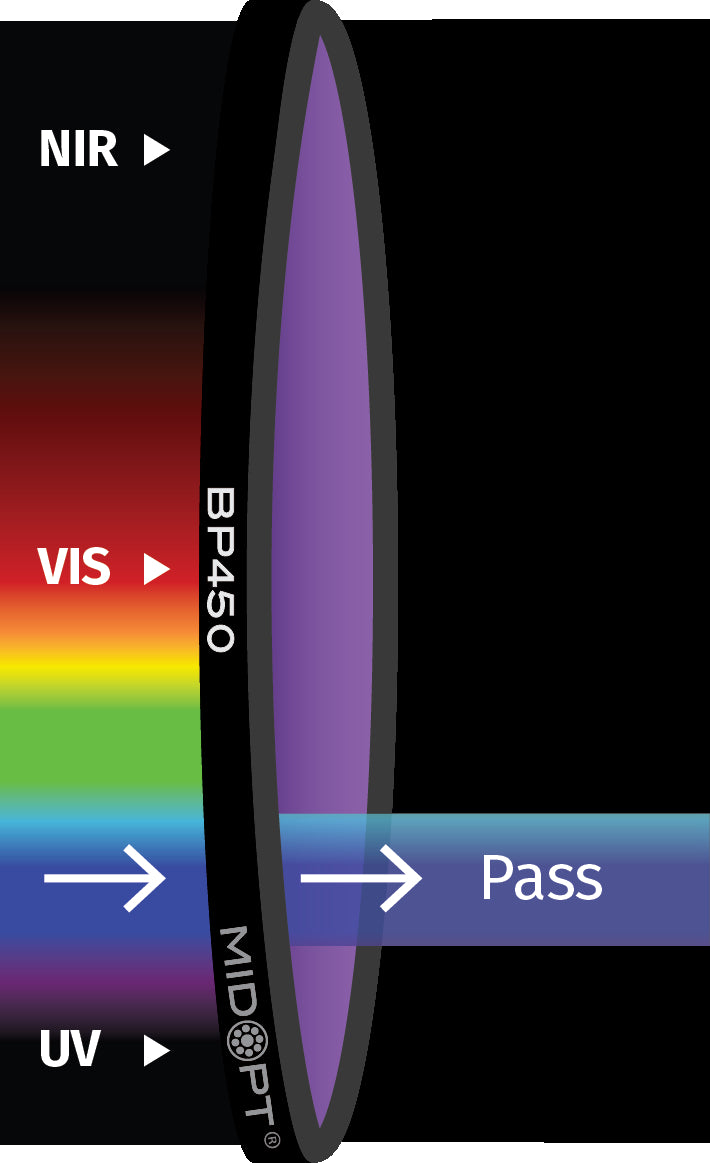

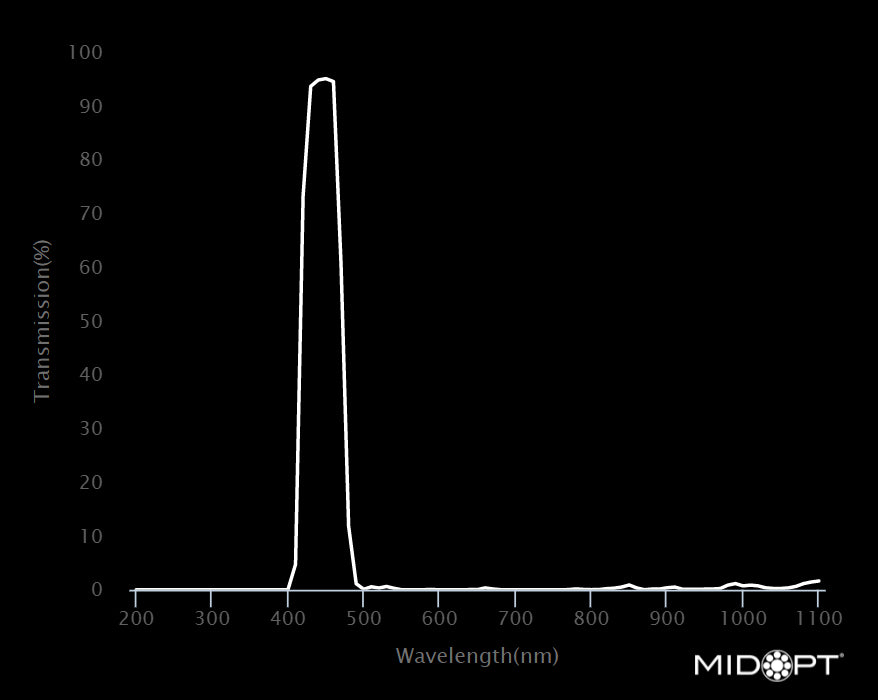

BP450 filters enhance viewing of subjects illuminated by a 450nm blue LED or laser light source and any UV- excited blue fluorescence emissions (420-470nm). Its broad bandwidth and high peak (T ≥90%) transmission result in significantly brighter, higher-contrast images. For most machine vision UV fluorescence applications, a Bandpass filter is necessary.

MidOpt BP450-49 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP450
Filter Type Broad Bandwidth Indigo Bandpass
StablEDGE Yes
Useful Range 425nm - 470nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 49mm
Filter Thread M49-0.75
Outer Diameter 54mm
Clear Aperture 47mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 60nm
Compatible LED 450nm
Average Transmission Not Specified
Brand Midwest Optical Systems
