BP365-37.5 Broad Bandwidth Near UV Bandpass Filter M37.5x0.5

Midwest Optical SystemsSKU: BP365-37.5

Price:
Sale price$154.40 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

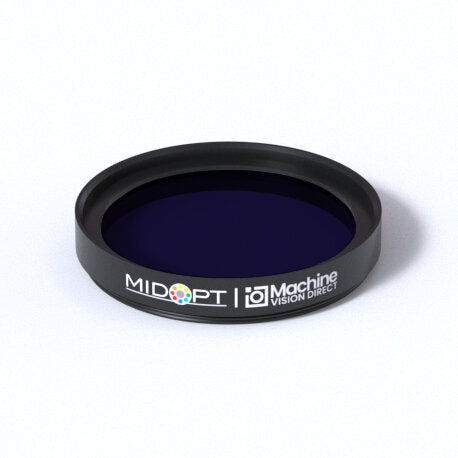

MidOpt BP365-37.5 Broad Bandwidth Near UV Bandpass Filter

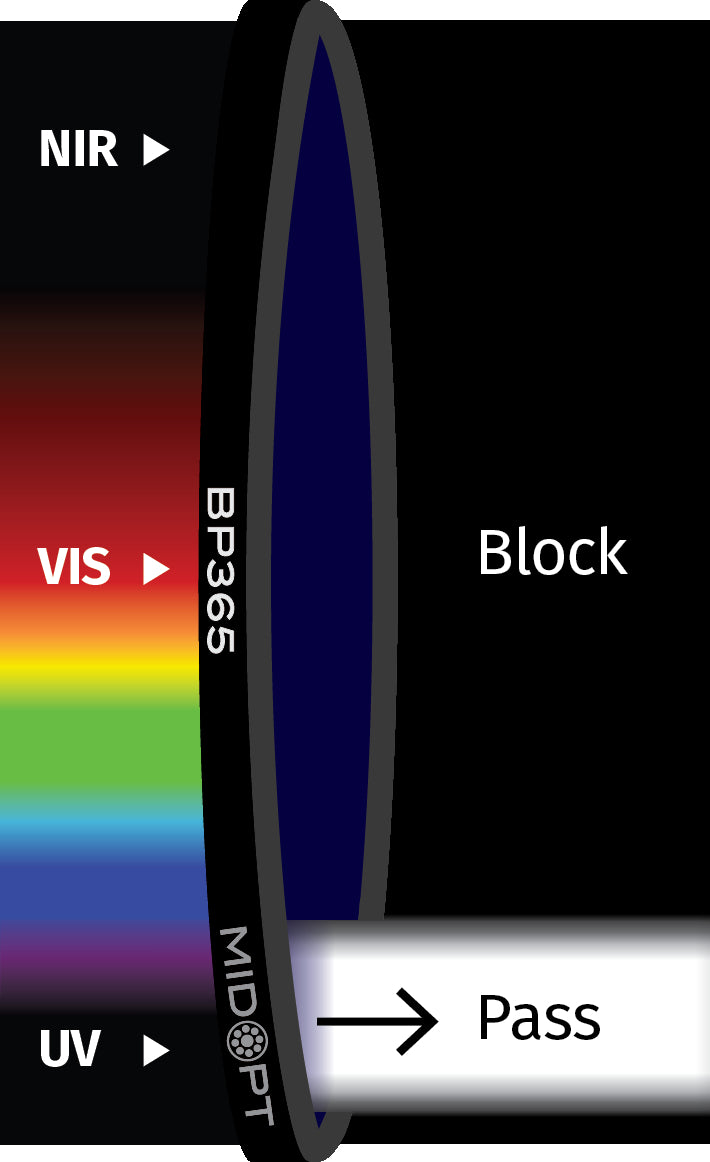

BP365 UV Bandpass dichroic filters can be used with all UV LED, UV fluorescent, and other UV-producing lamp-based lighting. BP365 filter material is designed to block the visible and pass UV light, including 395nm and all other popular UV LED wavelengths. It is also helpful for near-UV fluorescence imaging, blocking visible light and light from UVC LED excitation sources, allowing early removal of biofilms (for instance, in disinfection applications or biofouling of ship hulls) through tryptophan fluorescence detection. The substrate material is low-expansion Borofloat, making this filter particularly heat resistant.

MidOpt BP365-37.5 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP365
Filter Type Broad Bandwidth Near UV Bandpass
StablEDGE Yes

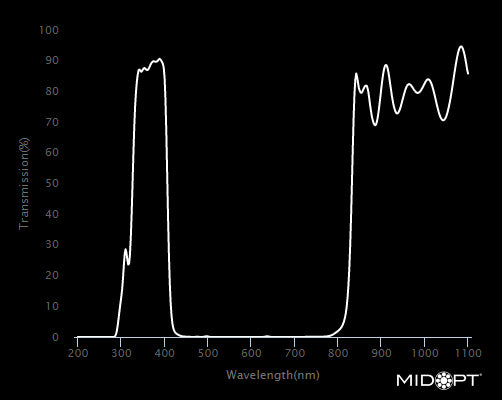

Useful Range 335nm - 400nm
Tolerance +/- 10nm
Peak Transmission ≥85%
Surface Quality 40/20
Filter Size 37.5mm
Filter Thread M37.5x0.5
Outer Diameter 41mm
Clear Aperture 34mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 80nm
Compatible LED 365nm
Average Transmission Not Specified
Brand Midwest Optical Systems
