BP324-52 Broad Bandwidth Near UV Bandpass Filter M52x0.75


Price:
Sale price$197.75 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

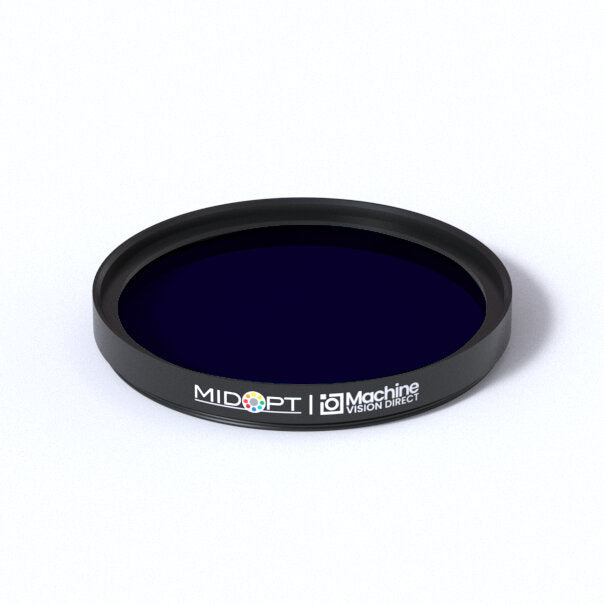

MidOpt BP324-52 Broad Bandwidth Near UV Bandpass Filter

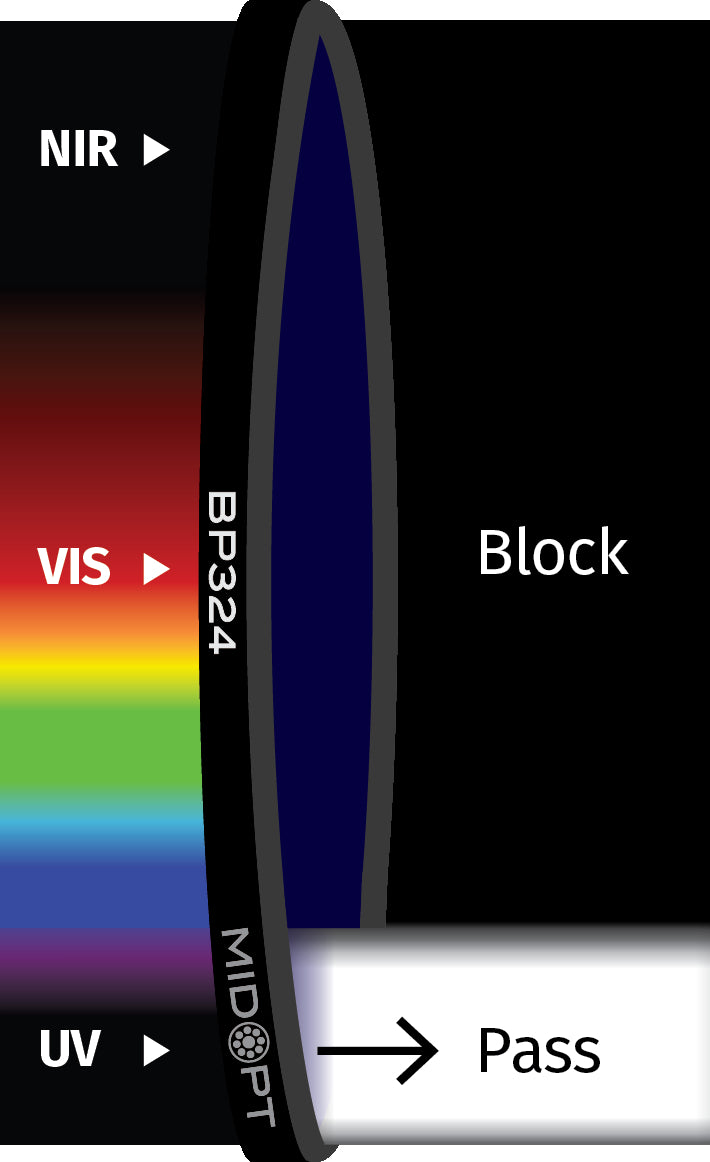

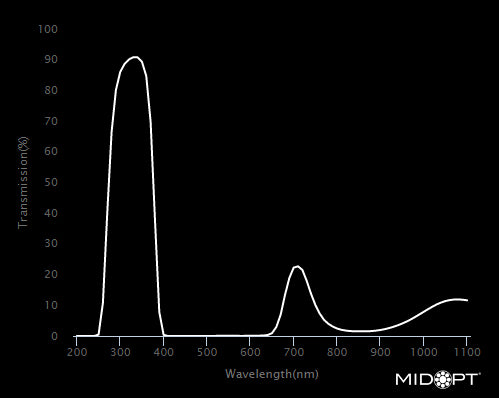

BP324 filters, with their broad spectral bandwidth in the UV and effective blocking of most visible and infrared light, are particularly useful in UV imaging applications. However, it's important to note a slight deep red/near IR leak that peaks at about 720nm. This filter absorbs all unwanted visible and/or infrared light, which is a great advantage. However, it's not recommended for placement in front of intense (white) light sources due to the risk of saturation.

MidOpt BP324-52 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP324
Filter Type Broad Bandwidth Near UV Bandpass
StablEDGE Yes
Useful Range 290nm - 365nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 52mm
Filter Thread M52x0.75
Outer Diameter 57mm
Clear Aperture 50mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 105nm
Average Transmission Not Specified
Brand Midwest Optical Systems
