AC389-13.25 AR Coated Acrylic Protective Window Visible and NIR Longpass Filter M13.25x0.5

Midwest Optical SystemsSKU: AC389-13.25

Price:
Sale price$59.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

MidOpt AC389-13.25 AR Coated Acrylic Protective Window Visible and NIR Longpass Filter

AC389 anti-reflection coated acrylic windows are optimized for visible and near-infrared transmission, making them ideal for security systems, 3D image capture, and some LIDAR applications. They are chemically and environmentally stable, resist solarization, and are cosmetically superb.

Durable antireflection coatings increase light transmission while limiting glare and other unwanted reflections. At the same time, the acrylic substrate is a lighter-weight, more impact-resistant alternative to glass. As an option, these windows can also be provided with oleophobic/hydrophobic top coatings.

MidOpt AC389-13.25 Technical Specifications:

Product Line / Series AC - Acrylic Longpass
Filter Model AC389
Filter Type AR Coated Acrylic Protective Window Visible and NIR Longpass
StablEDGE Yes

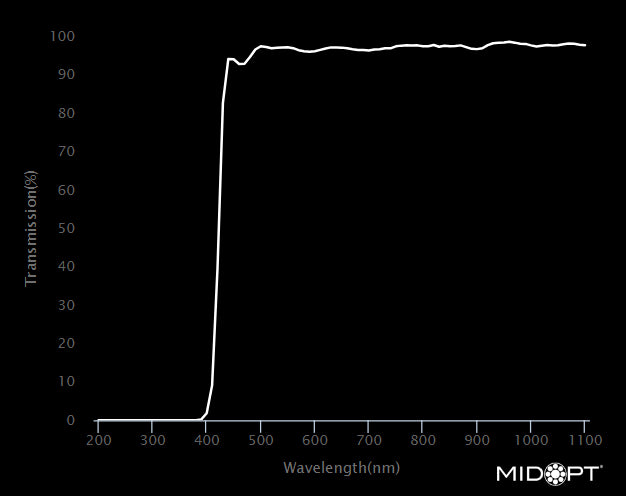

Useful Range 420nm - 1100nm
Tolerance +/- 10nm
Peak Transmission ≥98%
Surface Quality 80/50
Filter Size 13.25mm
Filter Thread M13.25x0.5
Outer Diameter 14.3mm
Clear Aperture 10.6mm
Overall Thickness 7.5mm
Exposed Thickness 5.7mm
FWHM Not Specified
Average Transmission Not Specified
Brand Midwest Optical Systems
