Description

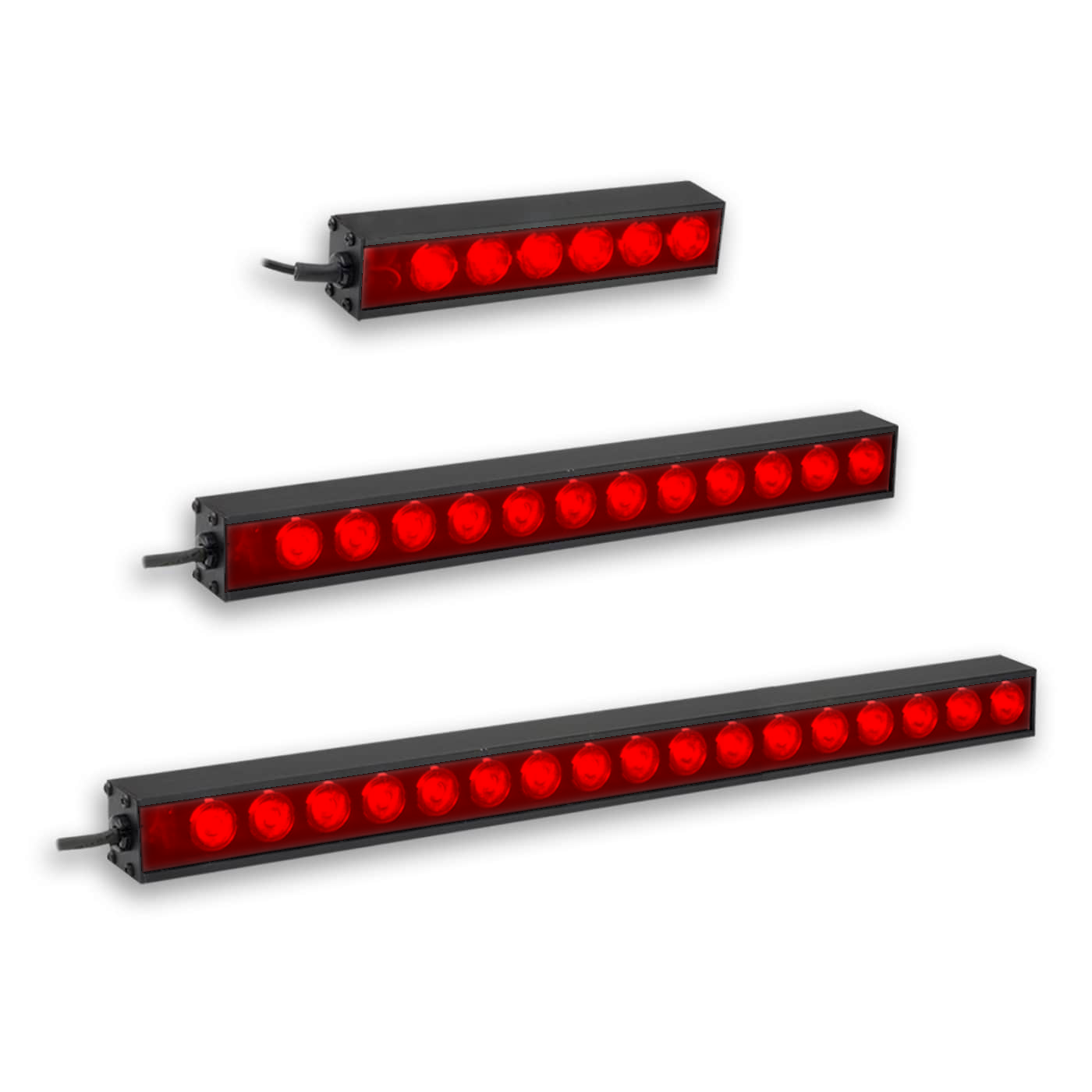

High Intensity Bar Lights - LL Series
LL174W48-66024 Specifications:
Brand | Advanced Illumination |
Series | LL174 |
Wavelength | 660 |
Color | Red |
Driver | 24 |
Ingress Protection | IP50 |
Length | 48 in |
Lens | WIDE |
Weight | 4657g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
High Intensity Bar Lights with a large degree of available customization:
“ 16 available wavelengths
“ Expandable in 6³ (150mm) increments up to 84³ (2.13m)
“ Optional heat sink for higher performance and/or high ambient temperatures
“ Optional light conditioning including polarization and diffusion
“ Optional IP65 rated sealing for washdown environments
“ 3 lens options for narrow, medium and wide beam spreads
All available with 2 week lead times
General Specs
Electrical Specifications |
0.35A per 6 inches 0.37A per 6 inches 0.38A per 6 inches 0.38A per 6 inches |
Normal Operating Temperature |
0 - 60°C |
Weight |
Sealed Per 6" - 195.10g (6.88oz) Nonsealed Per 6" - 193.26g (6.82oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 666, 730, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP65 Sealed, IP50 Nonsealed |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE |
![]() |
WHITE |
365 |
![]() |
365nm Ultra-Violet (UV) |
375 |
![]() |
375nm Ultra-Violet (UV) |
385 |
![]() |
385nm Ultra-Violet (UV) |
395 |
![]() |
395nm Ultra-Violet (UV) |
455 |
![]() |
455nm Royal Blue |
470 |
![]() |
470nm Blue |
505 |
![]() |
505nm Cyan |
530 |
![]() |
530nm Green |
590 |
![]() |
590nm Amber |
625 |
![]() |
625nm Red Orange |
660 |
![]() |
660nm Red |
730 |
![]() |
730nm Infra-Red (IR) |
850 |
![]() |
850nm Infra-Red (IR) |
940 |
![]() |
940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
![]() |
![]() |
Optical Specs
![]() |
![]() |
Electrical Specs
![]() |
Control Specs
![]() |
Part No Key
![]() |
