Description

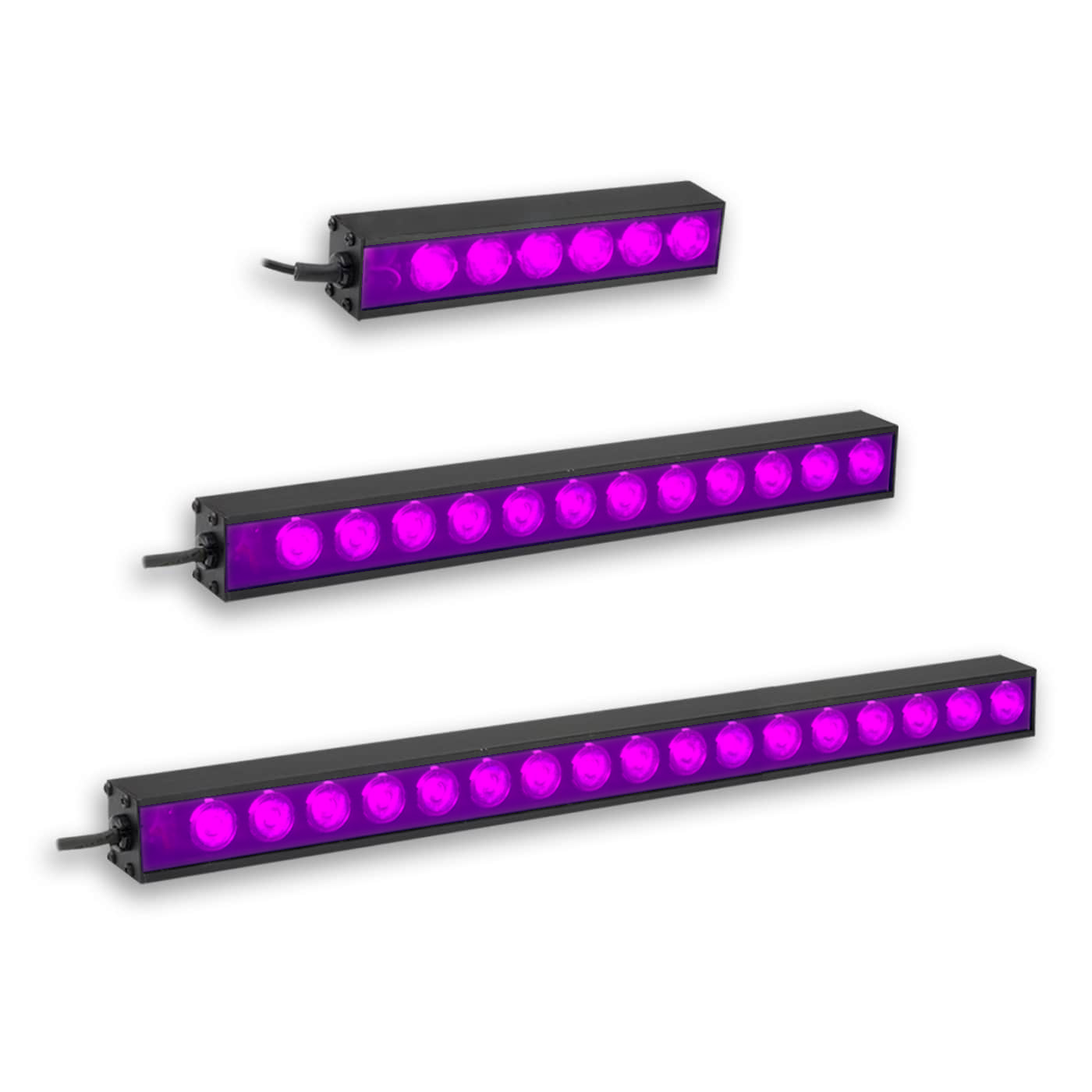

High Intensity Bar Lights - LL Series
LL174M18-39524 Specifications:
Brand | Advanced Illumination |
Series | LL174 |
Wavelength | 395 |
Color | Ultra-Violet (UV) |
Driver | 24 |
Ingress Protection | IP50 |
Length | 18 in |
Lens | MEDIUM |
Weight | 2555g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
High Intensity Bar Lights with a large degree of available customization:
“ 16 available wavelengths
“ Expandable in 6³ (150mm) increments up to 84³ (2.13m)
“ Optional heat sink for higher performance and/or high ambient temperatures
“ Optional light conditioning including polarization and diffusion
“ Optional IP65 rated sealing for washdown environments
“ 3 lens options for narrow, medium and wide beam spreads
All available with 2 week lead times
General Specs
Electrical Specifications |
0.35A per 6 inches 0.37A per 6 inches 0.38A per 6 inches 0.38A per 6 inches |
Normal Operating Temperature |
0 - 60°C |
Weight |
Sealed Per 6" - 195.10g (6.88oz) Nonsealed Per 6" - 193.26g (6.82oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 666, 730, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP65 Sealed, IP50 Nonsealed |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |
365 | 365nm Ultra-Violet (UV) | |
375 | 375nm Ultra-Violet (UV) | |
385 | 385nm Ultra-Violet (UV) | |
395 | 395nm Ultra-Violet (UV) | |
455 | 455nm Royal Blue | |
470 | 470nm Blue | |
505 | 505nm Cyan | |
530 | 530nm Green | |
590 | 590nm Amber | |
625 | 625nm Red Orange | |
660 | 660nm Red | |
730 | 730nm Infra-Red (IR) | |
850 | 850nm Infra-Red (IR) | |
940 | 940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
