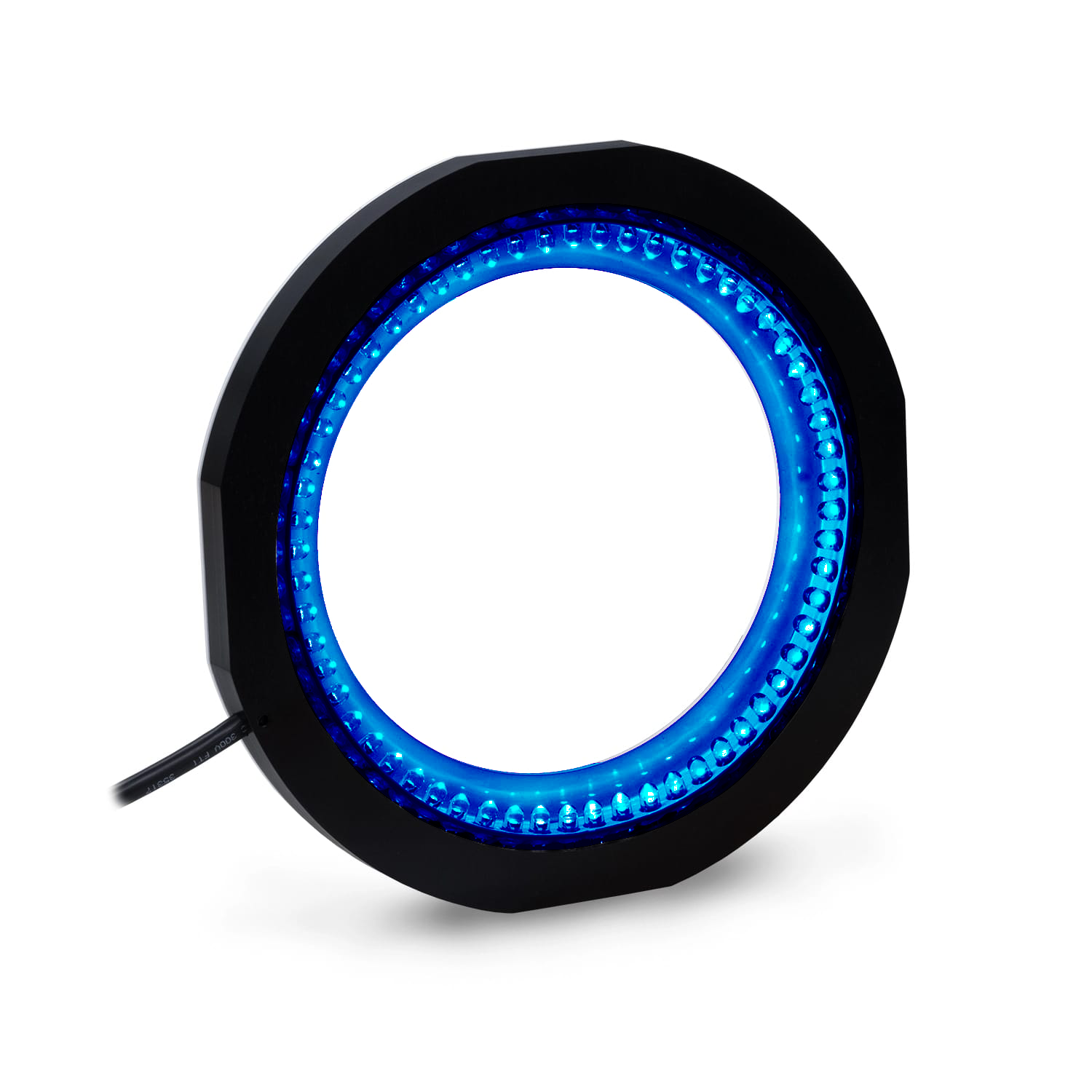

Large Low Angle Dark Field Lights - DF Series
DF242-4703524 Specifications:
Brand | Advanced Illumination |
Series | DF242 |
Wavelength | 470 |
Color | Blue |
Driver | 24 |
Ingress Protection | Not Rated |
Inner Diameter | 121.4 mm |
Outer Diameter | 183.4 mm |
Illuminated Field of View | 35.0 mm |
Weight | 548g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
The DF242 is characterized as a Large Low Angle Dark Field ring light.
Precisely aimed LEDs provide a very low angle of incidence, radial illumination pattern.
A scratch on a sheet of glass is a good example of a defect that can be detected easily with a low-angle dark field illuminator.
With a light intensity of 24kLux at a working distance of 1� (25mm), the DF242 is perfect for imaging problems with medium sized fields of view.
A 35mm field of view is standard with optional fields of view of 45 and 70mm.
Available in a range of wavelengths from UV to IR.
*Engineered to provide comparable optical characteristics to our previous RL1660.
General Specs
Electrical Specifications |
0.36A 0.24A |
Normal Operating Temperature |
0 - 60°C |
Weight | 646g (22.78 oz) (1.424 lb) |
Standard Cable Information | 2 M long -0/+150 mm (80" -0/+6") - 105°C RATED PVC JACKET, FOIL SHIELD WITH DRAIN. |
Photobiological Risk Factor |
EXEMPT APPLICABLE WAVELENGTHS: 880 GROUP 1 (LOW-RISK) APPLICABLE WAVELENGTHS: 470, 520, 625, 660, WHI GROUP 2 (MODERATE-RISK) APPLICABLE WAVELENGTHS: 395 |
Compliance | CE, ROHS, IEC 62471 |
IP Rating | NOT RATED |
Lumen Maintenance | L70 = 50,000 HOURS |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |
395 | 395nm Ultra-Violet (UV) | |
470 | 470nm Blue | |
520 | 520nm Green | |
625 | 625nm Red Orange | |
660 | 660nm Red | |
880 | 880nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
