Description
High Dispersion Wide Bar Lights - AL Series
AL11606 Specifications:
Brand | Advanced Illumination |
Series | AL116 |
Wavelength | VARIES |
Color | VARIES |
Driver | 24 |
Ingress Protection | IPIP50 |
Length | 06 in |
Weight | 943g |
Can Be Strobed | No |
Can Be Overdrive Strobed | No |
Can Be Constantly On | Yes |
Can Be Dimmed | Not Dimmable |
Connection | 2M Flying Lead |
Full Description
High dispersion for reflective surfaces and shorter working distances.
Provides a wider and more intense illumination area than the AL126.
IP65 compliant washdown option is available, as are a wide spectrum of wavelengths.
Available with polarization and diffusion light conditioning.
This expandable compact bar light is pre-engineered for custom lengths in 2³ increments up to 20³.
General Specs
Electrical Specifications | 0.12A per 2 inches |
Normal Operating Temperature |
0 - 60°C |
Weight |
Sealed Per 4" - 82.55g (2.91oz) Nonsealed Per 4" - 78.02g (2.75oz) |
Standard Cable Information | 2 m long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain. |
Photobiological Risk Factor |
Exempt Applicable Wavelengths: 850, 940 Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 530, 590, 625, WHI Group 2 (Moderate-Risk) Applicable Wavelengths: 365, 375, 385, 395, 405 |
Compliance | CE, RoHS, IEC 62471 |
IP Rating | IP65 Sealed, IP50 Nonsealed |
Lumen Maintenance | L70 = 50,000 Hours |
Available Wavelengths
Wavelength |
Color |
Description |
WHITE | WHITE | |

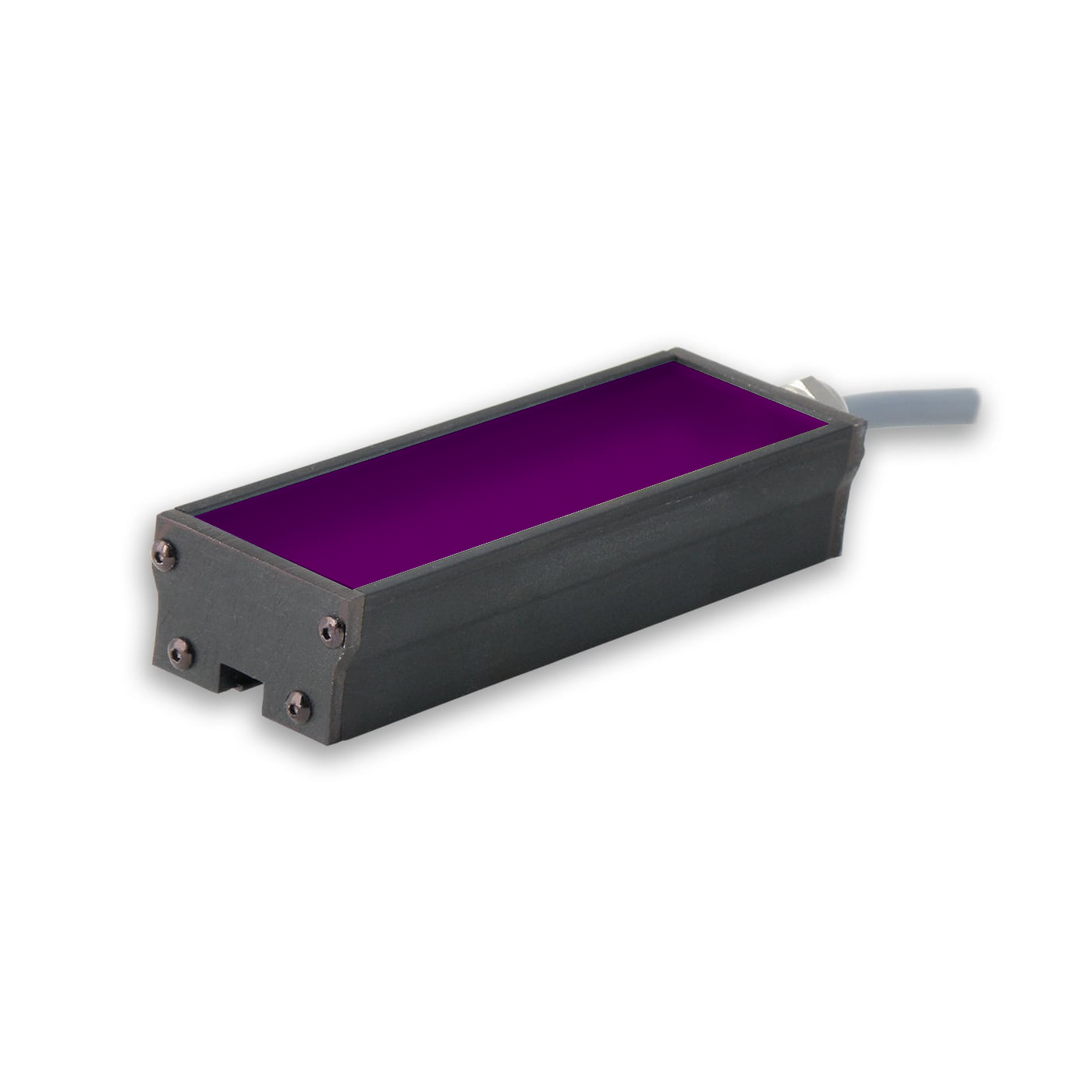

365 | 365nm Ultra-Violet (UV) | |
375 | 375nm Ultra-Violet (UV) | |

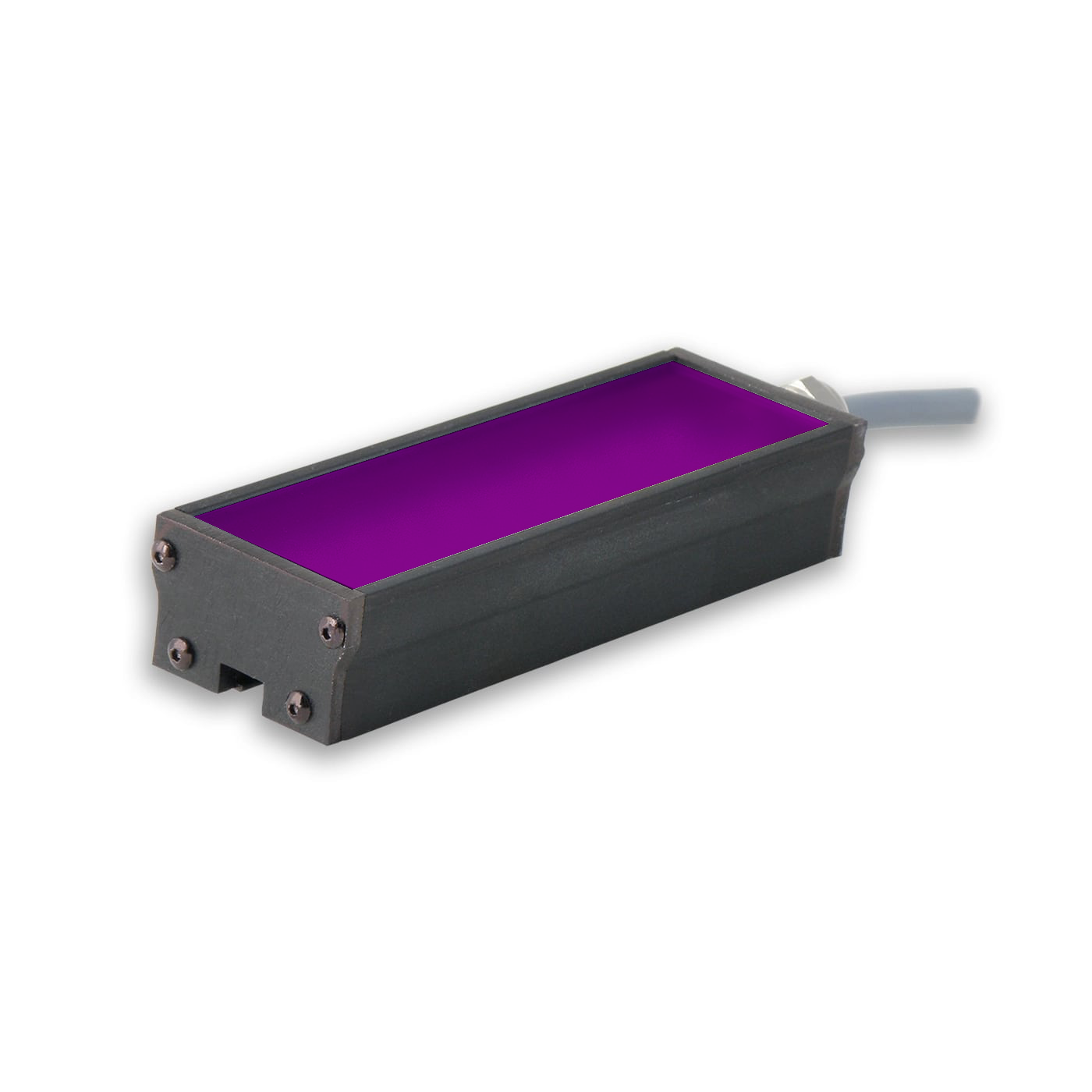

385 | 385nm Ultra-Violet (UV) | |
395 | 395nm Ultra-Violet (UV) | |

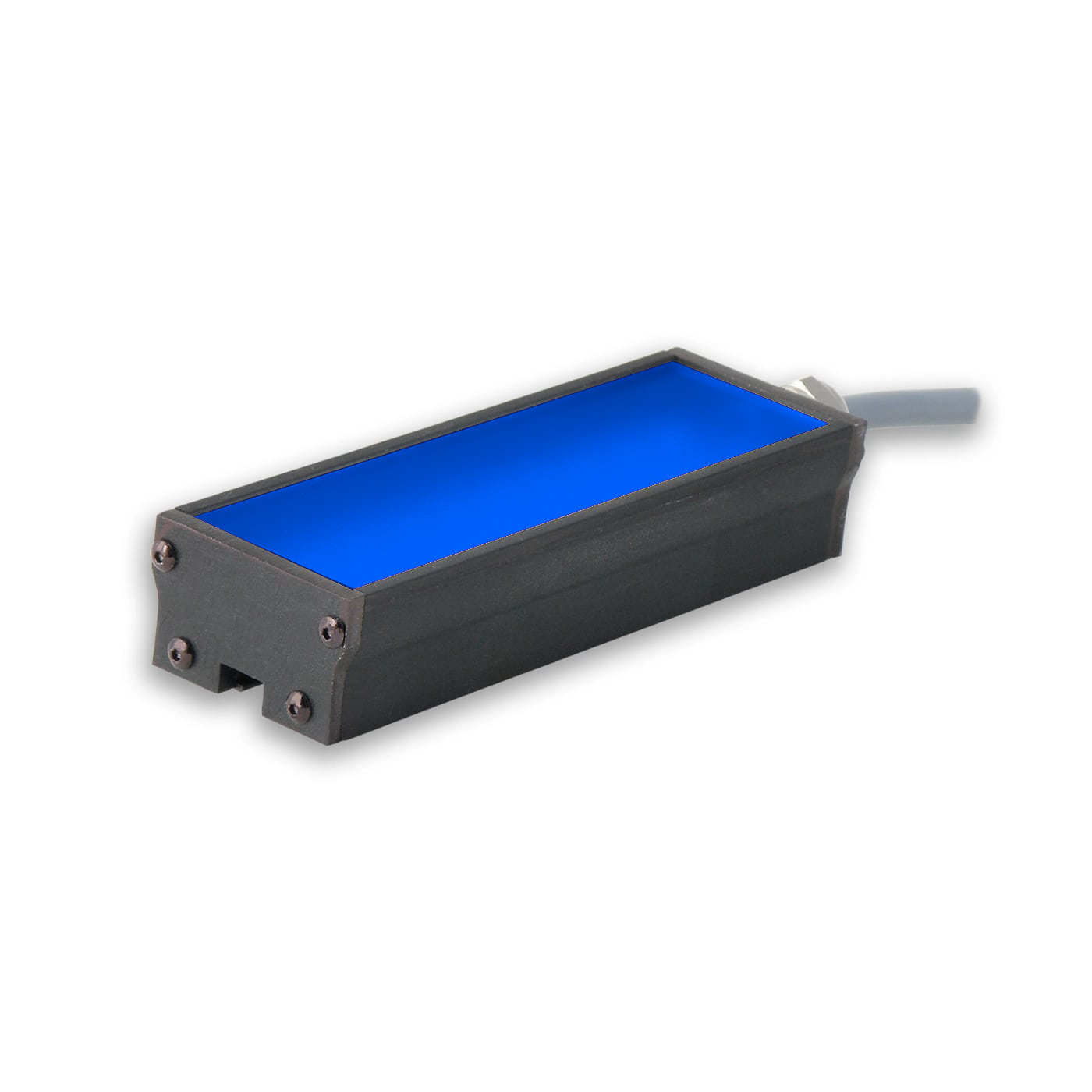

455 | 455nm Royal Blue | |
470 | 470nm Blue | |

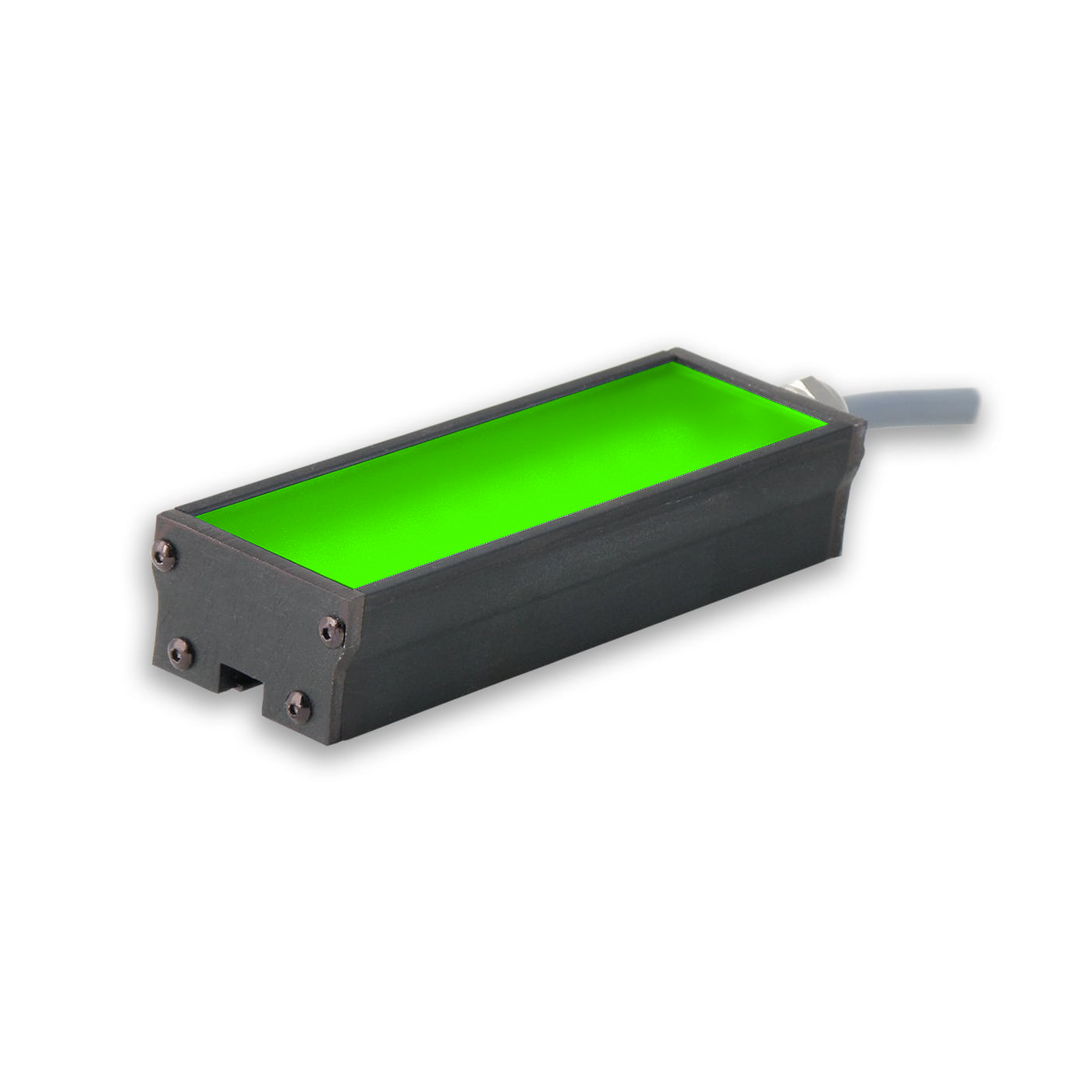

530 | 530nm Green | |

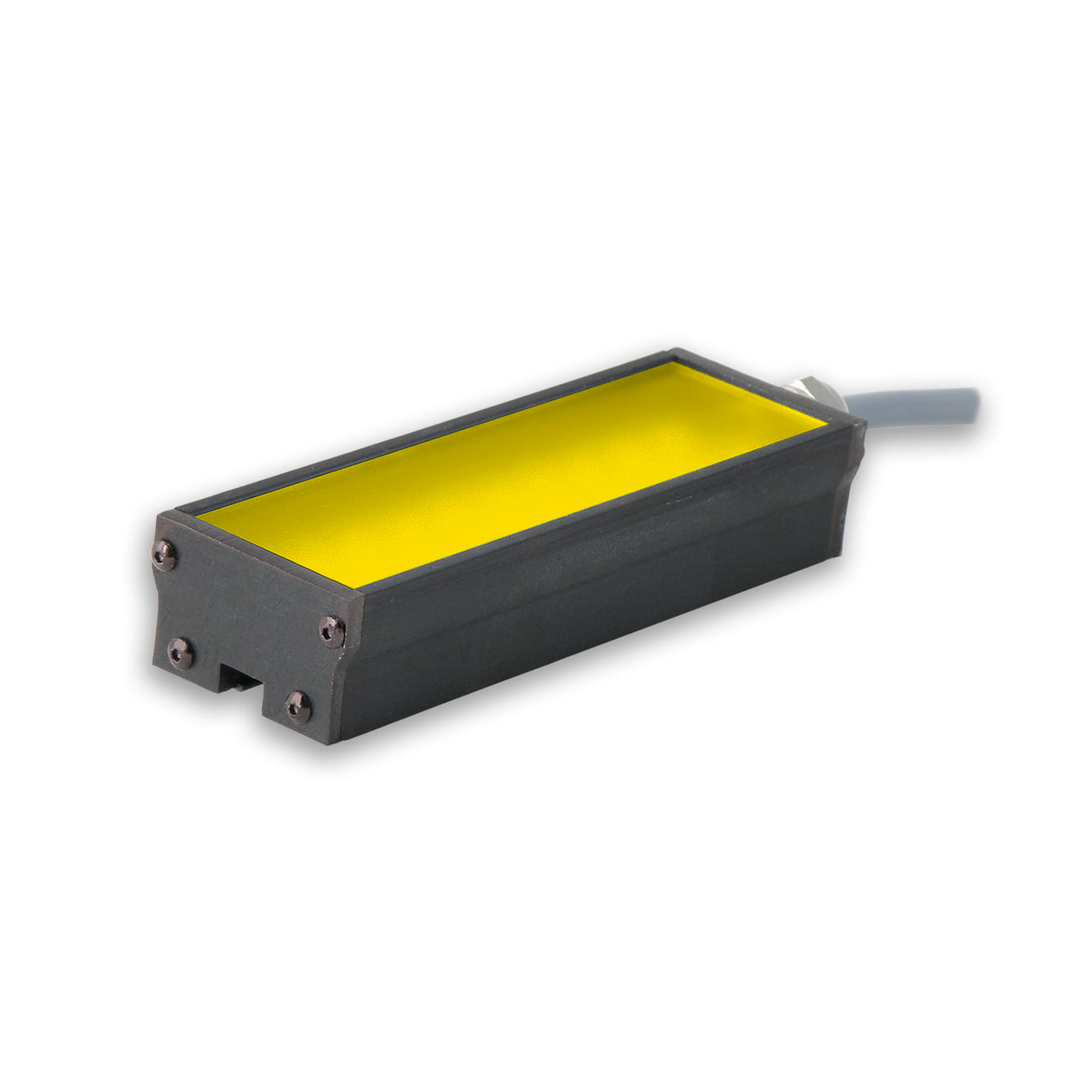

590 | 590nm Amber | |

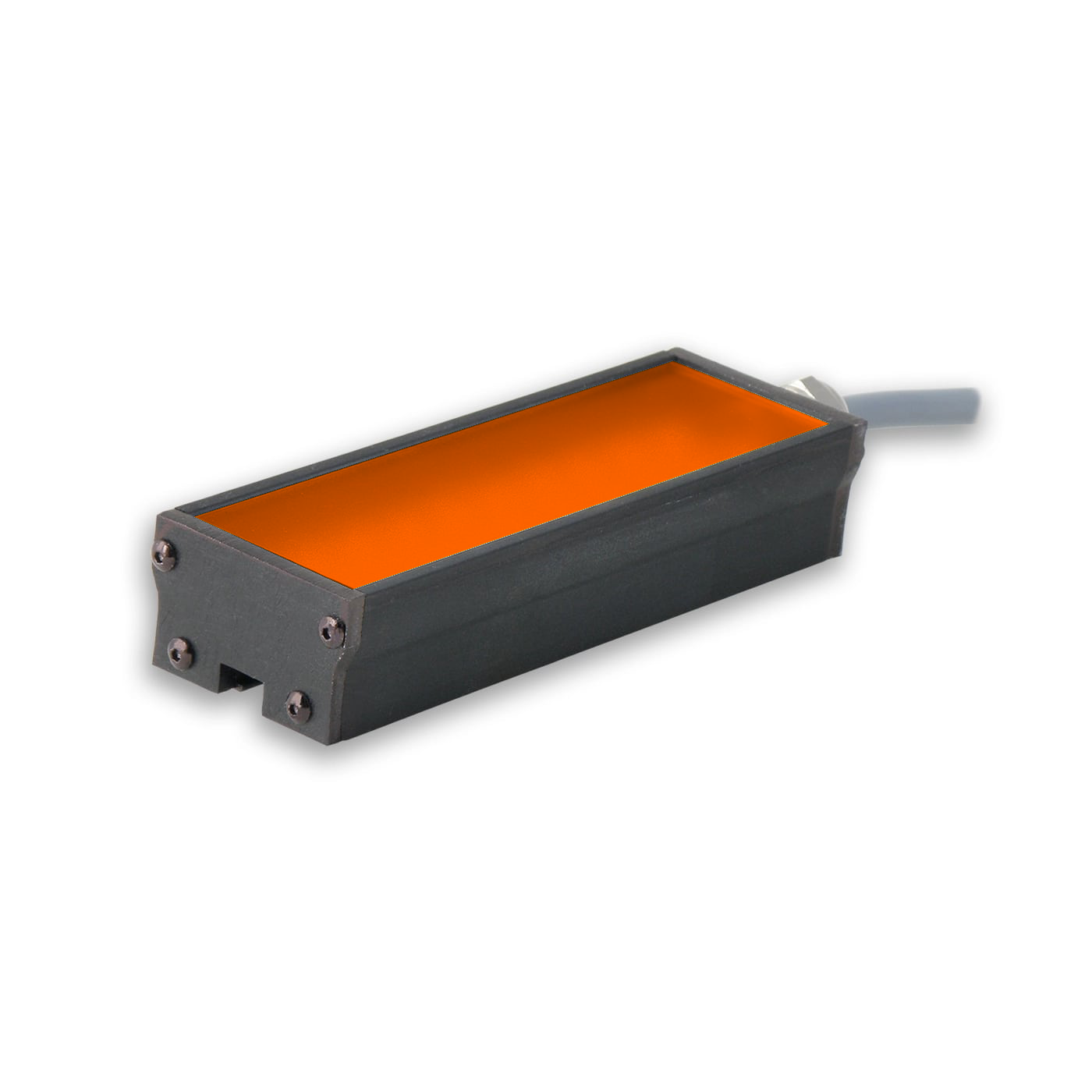

625 | 625nm Red Orange | |
850 | 850nm Infra-Red (IR) | |
940 | 940nm Infra-Red (IR) |
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Mechanical Specs
Optical Specs
Electrical Specs
Control Specs
Part No Key
