SXP Series Structured Lights Overview
Smart Vision Lights is pleased to release a new series of LED structured light projectors. LED projector uses patterns and optics to provide a focused structured light. SXP pattern projectors integrate precisely etched masks. Any kind of pattern shape can be easily supplied, integrated and projected. The size of the projection area can be easily modified by interchanging the projection optics. Projectors integrate standard C-mount 2/3" lenses. Telecentric lenses can also be used for telecentric pattern projection.
The 9mm² die size emits 9x the intensity as a standard high output LED. Multiple interchangeable pattern styles are available along with optional custom patterns.
PATTERNS
A Variety of Standard Patterns are available. Custom Patterns can be made, with a minimum order of 10 patterns. Contact sales@machinevisiondirect.com with custom inquiries
.
Any light pattern can be projected.
Standard patterns are available and custom patterns can be etched.
Standard and Sample Patterns
- Projector Pattern Selection Square [PDF]
- Projector Pattern Selection Circular [PDF]
- Projector Pattern Replacement [PDF]
- Pattern Spacer [PDF]
- SP PO FS [PDF]
- SP-PO-8x8GRID [PDF]
- SP PO HS [PDF]
- SP PO LN [PDF]
- SP PO RA [PDF]
- 100x100 Squares Checkerboard Pattern [PDF]
- SP CSM EPN Negative 8x8 GD [PDF]
- SP CSM EPN Sample 1 [PDF]
- SP CSM EPN Sample 2 [PDF]
- SP CSM EPN Sample 3 [PDF]
- SP CSM EPN Sample 4 [PDF]
Possible Product Configurations:
PART # | DESCRIPTION |
SP-PO-1LN | Standard Pattern Etching - SINGLE LINE (STANDARD) |
SP-PO-1LN-.05 | Standard Pattern Etching - SINGLE LINE (THIN) |
SP-PO-8LN | Standard Pattern Etching - 8 LINE |
SP-PO-HS | Standard Pattern Etching - HALF SPHERE |
SP-PO-FS | Standard Pattern Etching - FULL SPHERE |
SP-PO-8X8GRID | Standard Pattern Etching - 8X8 GRID |
SP-PO-CH | Standard Pattern Etching - CROSS HAIR |
SP-PO-RA | Standard Pattern Etching – RIGHT ANGLE LINE |
SP-PO-CB50 | Standard Pattern Etching - 50x50 Pixel Chess Board Pattern |

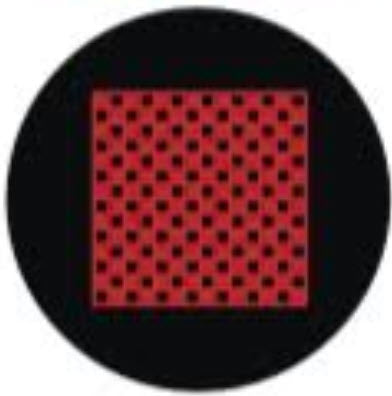

SP-PO-CB100 | Standard Pattern Etching - 100x100 Pixel Chess Board Pattern |
SP-PATTN-KIT | Standard Pattern Kit - Single Line(standard), 8 Line, Half Sphere, Full Sphere, 8x8 Grid, Cross Hair |
LENS SELECTION
Please Reference the following chart to determine the approximate mounting distance and correct lens reqruied to generate the needed pattern
PROJECTOR DIAGRAM CHART
