S75-SCB | S75-SCB Standard Test Color Box

Smart Vision LightsSKU: S75-SCB
Lead Time: 3 Business Days

Sale price$221.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

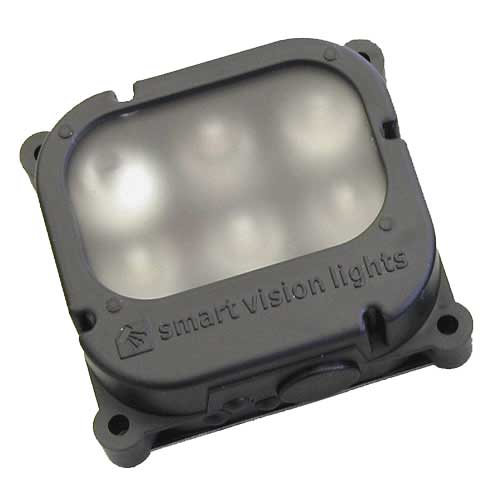

Smart Color Box Test Light Multicolor Tester

The Smart Color Box is an important tool for testing the different colors that work best on your vision application.

Great for field testing on a vision application or use in a Vision Lab. These lights are simple to use. Depress the button and receive your desired color. Smart Color Box works with standard CCD or CMOS cameras.

Materials respond to color in different ways. Sometimes the only way to know the color or wavelength that works the best is by testing different color lights. Purchasing each color LED light can be very expensive. The "Smart Color Box" is 1/10th the cost vs. buying six different LED light colors.

Product Details

  • 6 High Current LEDs - White, Red 625nm, Blue 470nm, Green 530nm, UV 395nm & IR 850nm
  • Li-ion battery with integrated charger / Up to 2 hours of operation before recharging
  • Recharges in 6 hours / Includes recharging power adapter
  • Push button testing for LED on/off
  • High Power, High Current LEDs

Smart Vision Lights S75-SCB Technical Specifications

S75-SCB Continuous Operation Specifications

Battery Power  Integrated Li-ion Rechargeable
Led Wavelengths 395, 470, 530, 625, 850, White
Standard Power Adapter  100-130-VAC 50/60 HZ
Universal Power Adapter

100-240 VAC 50/60 HZ Interchangeable Input Pins-UL, UK, VDE, SAA

S75-SCB Downloads

S75-SCB Datasheet | Smart Vision Lights S75-SCB 3D STEP Model | Smart Vision Lights
S75-SCB 2D DXF Drawing | Smart Vision Lights S75-SCB PDF Dimension Drawing | Smart Vision Lights
