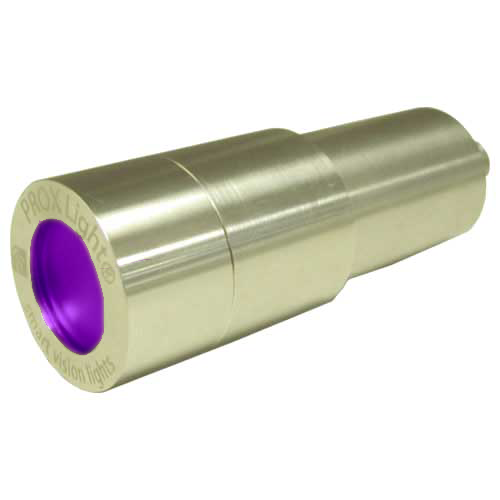

ODSXW30-395 | ODSXW30 IP68 Washdown 30mm Barrel Spot Light | 395nm UV Light, Narrow 14 Degree (Standard) Lens

Smart Vision LightsSKU: ODSXW30-395
Lead Time: 3 Business Days

Price:
Sale price$707.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

ODSXW30 Prox Spot Light

The Prox Light series of spotlights feature single 5W LEDs housed in small 30mm barrels sensor housings. The housings are industry standard threaded barrel M30x1.5 style used for proximity and photoelectric sensors. The lights are available in white, red, amber, blue, green cyan, IR and UV light output. Like the entire line of Smart Vision Lights, the Prox Light series includes an integrated constant current driver inside every light along with built-in strobe input with option for PNP or NPN trigger control. The integrated driver eliminates the need for wiring between the light and external driver and limits current to the LED while providing constant stable power. The light's PNP or NPN strobe triggers control light pulse timing.

Product Details

  • 30mm barrel style housing
  • M12 quick disconnect
  • Driver built in - No external wiring to a driver
  • PNP and NPN strobe input
  • OverDrive/Strobe only
  • Analog intensity 0-10VDC signal
  • Washdown IP68 Rating

Smart Vision Lights ODSXW30 Technical Specifications

ODSXW30 Continuous Operation Specifications

Electrical Input 24 V DC +/- 5%
Input Current Peak 1.25 A during strobe.
Input Power  Peak 30 W during strobe.
PNP Trigger 2.8 mA @ 4 V DC | 8.8 mA @ 12 V DC | 20 mA @ 24 V DC
NPN Trigger 14.4 mA @ Ground (0VDC)
Trigger Input  PNP > +4 VDC (24 VDC max.) to activate or NPN ‰¥ GND <1VDC to activate (not both)
Duty Cycle  Max 10%
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less.*
Red Indicator Led LED Strobe Indicator ON = Light Active
Green Indicator Led  ON = Power
Analog Intensity The output is adjustable from 10€“100% of brightness by a 1€“10 V DC signal.
(Jumpering pin 5 to pin 1 will provide maximum intensity)
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14°-104° F) | RH max 80% non-condensing humidity
Storage Temperature -20° - 70° C (-4°-158° F) | RH max 80% non-condensing humidity
IP Rating IP68
Weight  ~266g
Compliances  CE, RoHS, IEC 62471
Warranty 10 years**



ODSXW30 Prox Spot Light OVERVIEW

The ODSXW30 Series of Prox Lights feature a single high current LED enclosed in a 30mm Washdown IP68 Barrel Style Housing. The ODSXW30 Series feature an NPN and PNP strobe signal with a 0-10 VDC analog intensity control signal for added versatility. The ODSXW30 Series has multiple mounting options allowing for ease of install.

Wavelength Colors
ODSXW30 Wavelength Colors Smart Vision Lights

WIRING
Wiring Configuration for operation

MOUNTING
Multiple mounting brackets are available. All standard Prox Lights utilize an M30x1.5 Thread for mounting.

ODSXW30 Downloads

ODSXW30 Datasheet | Smart Vision Lights ODSXW30 3D STEP Model | Smart Vision Lights
ODSXW30 2D DXF Drawing | Smart Vision Lights ODSXW30 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:
ODSXW30-365
ODSXW30-395
ODSXW30-470
ODSXW30-505
ODSXW30-530
ODSXW30-625
ODSXW30-850
ODSXW30-940
ODSXW30-WHI
ODSXW30-365-W
ODSXW30-395-W
ODSXW30-470-W
ODSXW30-505-W
ODSXW30-530-W
ODSXW30-625-W
ODSXW30-850-W
ODSXW30-940-W
ODSXW30-WHI-W
