LW300-WHI-L | LW300 IP68 Washdown Bar Light (12") | White Light, Line 10 Degree x 50 Degree Lens

Smart Vision LightsSKU: LW300-WHI-L
Lead Time: 3 Business Days

Price:
Sale price$1,106.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

The LW300 series features a waterproof stainless-steel enclosure specially designed for the food industry and washdown (harsh environment) where water and harsh detergents are present. The LW300 features an integrated constant current driver built into the light. NPN or PNP on/off triggers can be used to control the pulse of the light. The intensity of the light can be controlled via 1-10V analog signal line or manual potentiometer. The light is rated for IP68. Recommended illumination usage: Bright Field, Direct Lighting and Dark Field Product Details:
  • IP68 rated stainless-steel housing
  • Designed to operate in food applications
  • Meets FDA compliance
  • 5-Pin M12 quick disconnect

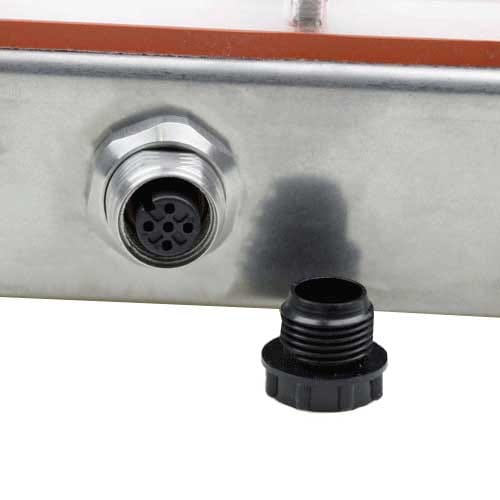

  • Daisy- chain up to six LW300 linear lights using a standard 5-pin M12 jumper cable
  • Driver built-in
  • PNP and NPN trigger signal input
  • Dimmable via built in potentiometer
  • Analog intensity 1-10V DC signal line

Smart Vision Lights LW300 Technical Specifications

LW300 Specifications

Electrical Input 24VDC +/€“5%
 Input Current Max. 700 mA
Wattage Max. 17 W
On/Off Input PNP: +4VDC or greater to activate | NPN: GND (<1VDC) to activate
PNP Line 4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC
NPN Line 15 mA @ Ground (0VDC)
Continuous Mode NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
Potentiometer 270º turn pot€”Intensity control of 10%€“100%. Turn clockwise to increase intensity.
Analog Intensity Brightness output adjustable from 10%€“100% via a 1€“10VDC signal

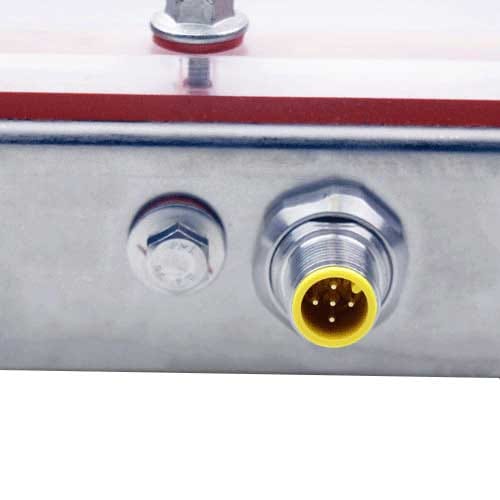

Connection 5-pin M12 connector
Ambient Temperature -18º€“40ºC(0º€“104ºF)
IP Rating IP68
Weight ~1430 g
Compliances CE, RoHS, IEC 62471
Warranty UV LEDs have a 2 year warranty, all other LEDs have a 10 year warranty.
For complete warranty information, visit smartvisionlights.com/warranty.



LW300 Downloads

LW300 Datasheet | Smart Vision Lights LW300 3D STEP Model | Smart Vision Lights
LW300 2D DXF Drawing | Smart Vision Lights LW300 PDF Dimension Drawing | Smart Vision Lights



Possible Part Configurations:

LW300-365
LW300-395
LW300-470
LW300-505
LW300-530
LW300-625
LW300-850
LW300-WHI
LW300-365-W
LW300-395-W
LW300-470-W
LW300-505-W
LW300-530-W
LW300-625-W
LW300-850-W
LW300-WHI-W
LW300-470-L
LW300-505-L
LW300-530-L
LW300-625-L
LW300-850-L
LW300-WHI-L
LW300-470-LPI
LW300-505-LPI
LW300-530-LPI
LW300-625-LPI
LW300-WHI-LPI
LW300-470-W-LPI
LW300-505-W-LPI
LW300-530-W-LPI
LW300-625-W-LPI
LW300-WHI-W-LPI
LW300-470-L-LPI
LW300-505-L-LPI
LW300-530-L-LPI
LW300-625-L-LPI
LW300-WHI-L-LPI
