Description

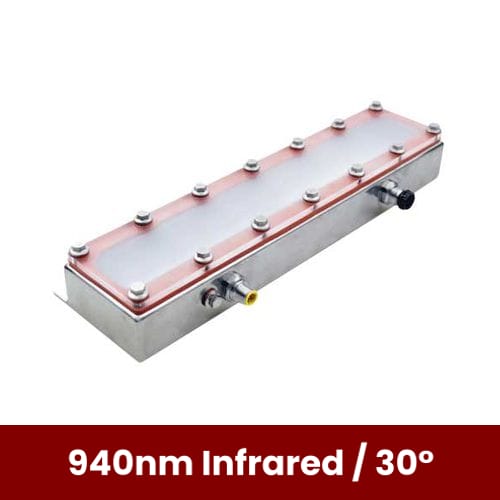

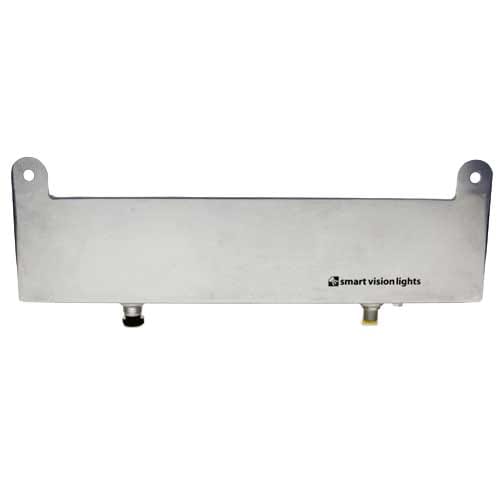

The LW300-940-W Bar light from Smart Vision Lights is their classic linear light in 300mm (12") Length, however this variation is IP68 rated and fully waterproof for use in the food industry and other applications requiring washdown with water or detergents. This machine vision light series incorporates SVL's Smart-Drive driver which allows for operation in both Constant-On and Strobe operation modes, however this light cannot be Overcurrent Strobed. For Overcurrent Strobe, we recommend the ODLW300 (Overdrive Driver). This model is 300mm long and is in the 940nm Infrared color. The LW300-940-W is Not Diffused and Not Polarized. The LW300 series is available in 470nm Blue, 530nm Green, 625nm Red, 850nm IR, and 940nm IR as standard variants. Further customizations can be performed upon request from Machine Vision Direct. The LW300-940-W has its front window replaced at the factory with a diffuser.
The LW300-940-W can be dimmed using the IVP-C1 dimming accessory, or with the analog input on Pin 5 (Gray Wire, 0-10VDC)

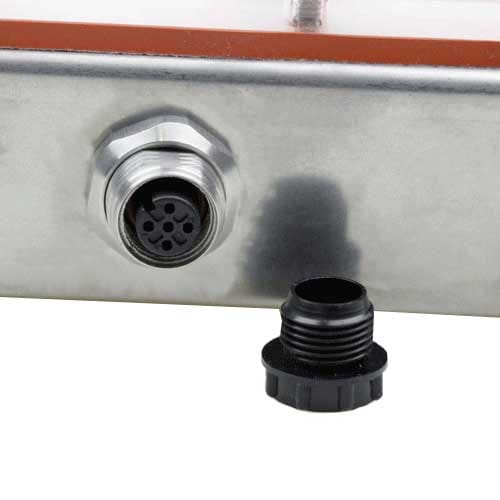

The light features a 5 Pin M12 Male Connector that exits from the side of the light. We recomend our W5PM12 series of cables for washdown applications, such as the W5PM12-15 cable. For daisy chaining lights, we recommend the W5PM12-J300 or W5PM12-J2000 cable.
For new applications, machine vision direct recommends the use of the LZEW300 washdown series of lights. The LZEW300 features the SVL Multi-Drive driver, which is the latest and greatest full featured driver that Smart Vision Lights offers. The LZEW300 is available in 4 variants.
For applications where the lights will not be daisy chained, we recommend the LZEW300-NS-SC (Non-stick coated Aluminum, Single Connector), and the LZEW300-SS-SC (Stainless Steel, Single Connector).
For applications where the lights will be daisy chained, we recommend the LZEW300-NS-DC (Non-stick coated Aluminum, Daisy Chainable Dual Connectors), and the LZEW300-SS-DC (Stainless Steel, Daisy Chainable Dual Connectors).
Technical Specifications
