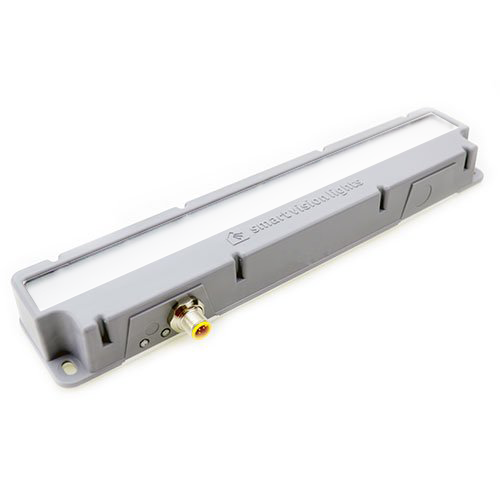

LC300 Low Cost Linear Light (12")

Smart Vision LightsSKU: LC300-WHI
Lead Time: 3 Business Days

Color: WHITE
Lens: Narrow 16 Deg (Standard)
Price:
Sale price$443.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Smart Vision Lights now offers a series of competitively priced, Grey Series Lighting. The LC300 Linear Light & the SC75 Brick Light are low cost alternatives for the Vision Industry. This line features all high bright LEDs, can operate in strobe mode or constant on, and features a built-in driver. SVL's Grey Series Lighting Series is available in Red 625nm, Blue 470nm, Green 530nm, IR 850nm and White only. The option for standard tight, wide angle expanded, or line generating optics are available as well. Grey Series Lights do not offer the ability to adjust the light intensity remotely or through an integrated potentiometer. The LC300 Linear Light does not offer the ability to "daisy-chain" additional lights.

Product Details:

  • Grey Series Machine Vision Light
  • Driver built in - No External wiring to a driver
  • PNP and NPN Strobe input
  • Continuous operation or Strobe
  • Illumination patterns available in standard tight, wide expanded, and line

Smart Vision Lights LC300 Technical Specifications

LC300 Specifications

Electrical Input 24 VDC +/- 5%
Input Current Max. 700 mA
Input Power Max. 17 W
PNP Trigger 2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC
NPN Trigger 14.4 mA @ Common (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both)
Strobe Duration Min. 1 μs | Max. ∞
Power Indicator Turns green when powered up
Status Indicators Strobe indicator will turn yellow when on
Connection 5-pin M12 connector
Operating Temperature -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature -20° to 70° C (-4° to 158° F) | RH max 80% non-condensing humidity
IP Rating IP50
Weight ~370 g
Compliances CE, IEC 62471, RoHS
Warranty 10 years*



LC300 Downloads

LC300 Datasheet | Smart Vision Lights LC300 3D STEP Model | Smart Vision Lights
LC300 2D DXF Drawing | Smart Vision Lights LC300 PDF Dimension Drawing | Smart Vision Lights


Possible Part Combinations:

LC300-470
LC300-530
LC300-625
LC300-850
LC300-WHI
LC300-470-W
LC300-530-W
LC300-625-W
LC300-850-W
LC300-WHI-W
LC300-470-L
LC300-530-L
LC300-625-L
LC300-850-L
LC300-WHI-L
