Description
- 5 Pin M12 quick disconnect
- Option of connecting lights together

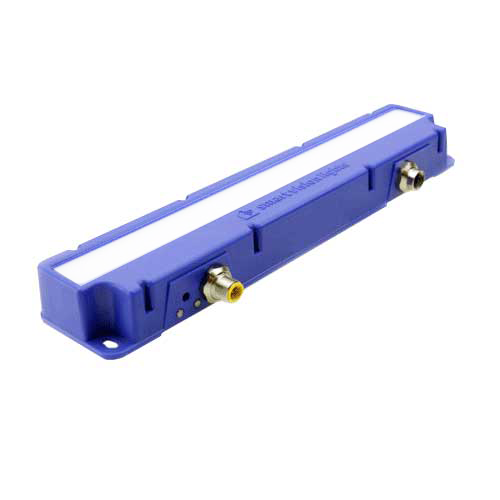

- Backlight version of L300
- PNP and NPN strobe input
- Continuous operation or strobe mode
- Dimmable via built in potentiometer
- Analog intensity 0-10VDC signal
- Twelve, 1mm² die high current LEDs
Smart Vision Lights LB300 Technical Specifications
LB300 Specifications
| Electrical Input | 24 VDC +/- 5% |
| Input Current | Max. 700 mA |
| Input Power | Max. 17 W |
| PNP Trigger | 2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC |
| NPN Trigger | 14.4 mA @ Common (0VDC) |
| Trigger Input | PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both) |
| Strobe Duration | Min. 1 μs | Max. ∞ |
| Power Indicator | Turns green when powered up |
| Status Indicators | Strobe indicator will turn yellow when on |
| Analog Intensity | The output is adjustable from 10% - 100% by a 1 - 10 VDC signal or front potentiometer. Jumpering pin 5 to pin 1 will provide maximum intensity |
| Connection | 5-pin M12 connector |
| Operating Temperature | -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity |
| Storage Temperature | -20° to 70° C (-4° to 158° F) | RH max 80% non-condensing humidity |
| IP Rating | IP50 |
| Weight | ~370 g |
| Compliances | CE, IEC 62471, RoHS |
| Warranty | 10 years* |
LB300 Downloads
|  |  |
|  |  |
Possible Part Combinations:
LB300-365LB300-395
LB300-470
LB300-505
LB300-530
LB300-625
LB300-850
LB300-940
LB300-WHI
LB300-365-W
LB300-395-W
LB300-470-W
LB300-505-W
LB300-530-W
LB300-625-W
LB300-850-W
LB300-940-W
LB300-WHI-W
LB300-470-L
LB300-505-L
LB300-530-L
LB300-625-L
LB300-850-L
LB300-940-L
LB300-WHI-L
LB300-470-LPI
LB300-505-LPI
LB300-530-LPI
LB300-625-LPI
LB300-WHI-LPI
LB300-470-W-LPI
LB300-505-W-LPI
LB300-530-W-LPI
LB300-625-W-LPI
LB300-WHI-W-LPI
LB300-470-L-LPI
LB300-505-L-LPI
LB300-530-L-LPI
LB300-625-L-LPI
LB300-WHI-L-LPI
