Description
DFL-12 Darkfield Light Assembly
The Adjustable Dark Field Ring acts as a mount to daisy chain linear lights together in a square pattern. Users can attach up to 4 linear lights. Light features a 360 illumination field with two available sizes. In strobing application, all lights will pulse at the same time with either the NPN or PNP signal input. Each individual light has a manual intensity adjustment or automatically dim all four via the 0-10V analog intensity control.
Product Details
- Adjustable lights on aluminum extrusion
- 300x300 mm and 600x600 mm Area
- Lights can be strobed together or separate
- PNP and NPN Strobe input
- Continuous operation or Strobe mode
- Dimmable via built in potentiometer
- Analog intensity 0-10VDC signal
- Standard optics provide tight light pattern
Smart Vision Lights DFL-12 300x300 Technical Specifications
DFL-12 300x300 Specifications
Electrical Input | 24VDC +/- 5% |
Input Current | Max. 2A |
Input Power | Max. 48 W |
PNP Trigger | 2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC |
NPN Trigger | 14.4 mA @ Ground (0VDC) |
Trigger Input | PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both) |
Strobe Duration | Min. 30 μs | Max. ∞ |
Power Indicator | Turns green when powered up |
Status Indicators | Strobe indicator will turn yellow when on |
Intensity Limit | 270º turn pot – Turn clockwise to increases intensity limit |
Analog Intensity | The output is adjustable from 10–100% of intensity limit by a 1–10VDC signal. Jumpering pin 5 to pin 1 will provide maximum intensity |
Connection | 5-pin M12 connector |
Operating Temperature | -10° to 40° C (14° to 104 ° F) | RH max 80% non-condensing humidity |
Storage Temperature | -20° to 70° C (-4° to 158° F) | RH max 80% non-condensing humidity |
IP Rating | IP50 |
Weight | ~455g |
Compliances | CE, RoHS, IEC 62471 |
Wavelength Colors
WIRING
Wiring Configuration for operation
MOUNTING
Lights adjustable 90 degrees - Full vertical to horizontal swing
DFL-12 Downloads
![]() |
![]() |
![]() |
![]() |
Possible Product Configurations:
DFL-12-365

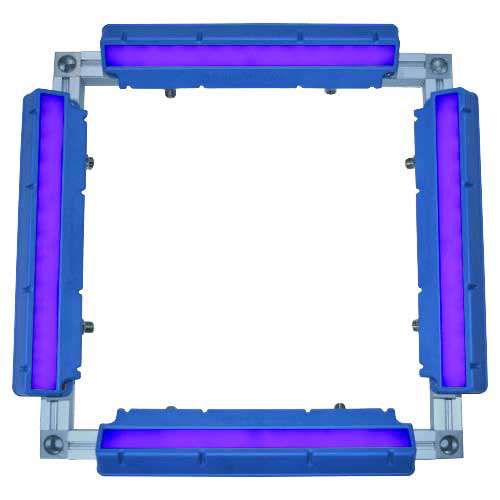

DFL-12-395
DFL-12-470

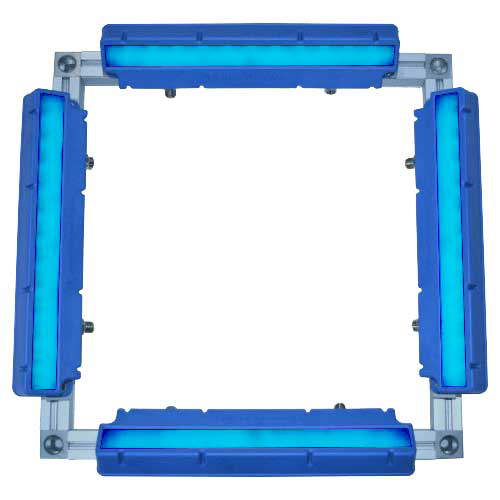

DFL-12-505
DFL-12-530
DFL-12-625
DFL-12-850
DFL-12-940
DFL-12-WHI
