ODSXA30 30mm Barrel Adjustable Spot Light 2nd Generation "Prox Light"

Smart Vision LightsSKU: SVL ODSXA30-WHI
Lead time: 3 Business Days

Color: White
Price:
$329

Description

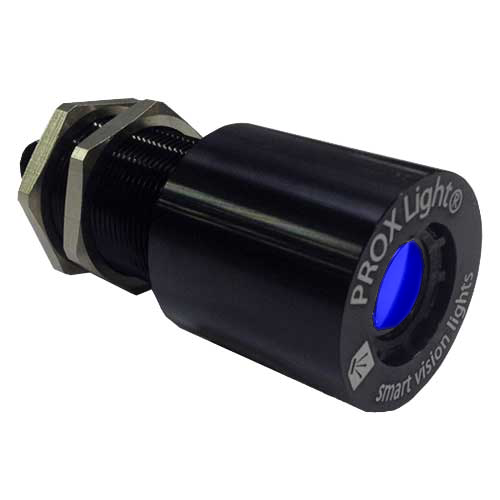

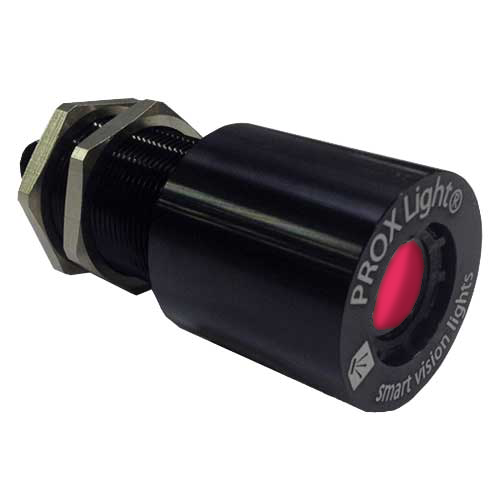

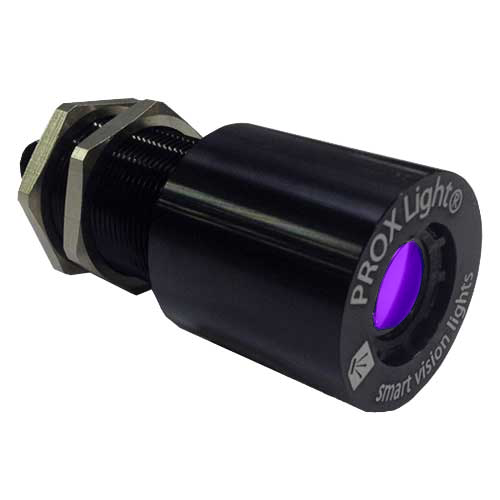

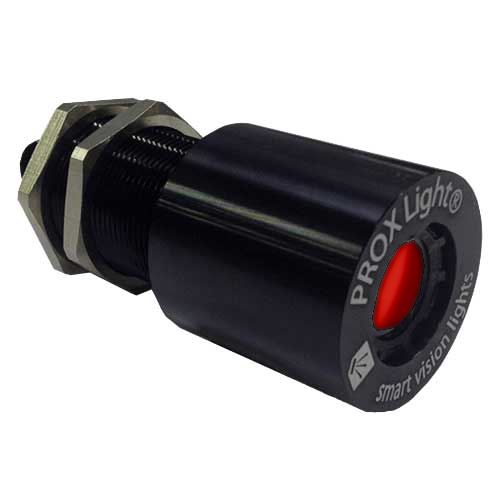

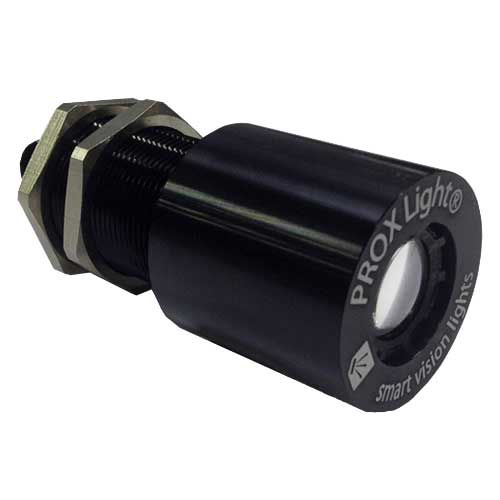

30mm Overdrive Barrel Adjustable Spot Light 2nd Generation - "Prox Light"
The Prox Light series of spotlights feature single 5W LEDs housed in small 30mm barrels sensor housings. The housings are industry standard threaded barrel M30x1.5 style used for proximity and photoelectric sensors. The lights are available in white, red, amber, blue, green cyan, IR and UV light output. Like the entire line of Smart Vision Lights, the Prox Light series includes an integrated constant current driver inside every light along with built-in strobe input with option for PNP or NPN trigger control. The integrated driver eliminates the need for wiring between the light and external driver and limits current to the LED while providing constant stable power. The light's PNP or NPN strobe triggers control light pulse timing.

Product Details

  • 30mm barrel style housing
  • Compact 30mm diameter design
  • SafeStrobe Technology ensures protected operation
  • Driver built in - No external wiring to a driver
  • Homogeneous light pattern
  • Analog intensity 0-10VDC signal
  • Maximum strobe pulse 125mS
  • Up to 2000 strobes per second

ODSXA30 Light Series OVERVIEW
The ODSXA30 Series of Adjustable Prox Lights feature a telescoping lens for full control of projected spot size. Light projected has a homogeneous pattern that is about 3-4 times brighter than the standard SXA30 and is great for applications where very diffuse and even lighting is required. The ODSXA30 also features a compact yet robust 30mm diameter threaded housing that allows for simple mounting and ultimate versatility. Built in SafeStrobe Technology ensures protection of the LED while providing maximum output. NPN and PNP strobe inputs and a 0-10VDC analog intensity control make this series of spot lights a very dependable and versatile light.

Wavelength Colors
ODSXA30 Wavelength Colors Smart Vision Lights

NOTE: This Light is also available in the following SWIR wavelengths: 1050nm, 1150nm, 1200nm, 1300nm, 1450nm, and 1550nm. Please contact us for pricing for these wavelengths.

WIRING
Wiring Configuration for operation

MOUNTING
Multiple mounting brackets are available. All standard Prox Lights utilize an M30x1.5 Thread for mounting.

ODSXA30

Possible Product Configurations:
ODSXA30-365
ODSXA30-395
ODSXA30-470
ODSXA30-505
ODSXA30-530
ODSXA30-625
ODSXA30-850
ODSXA30-940
ODSXA30-1050
ODSXA30-1150
ODSXA30-1200
ODSXA30-1300
ODSXA30-1450
ODSXA30-1550
ODSXA30-WHI
