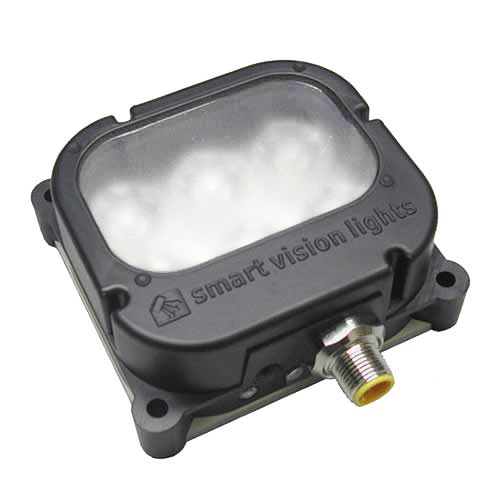

ODSB75 Brick Backlight

Smart Vision LightsSKU: ODSB75-WHI
Lead Time: 3 Business Days

Color: WHITE
Price:
Sale price$463.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

ODSB75 Brick Spot Light (Backlight) Product Details
  • 4-5 Times Brighter Than Standard High Current LEDs
  • PNP and NPN Strobe Input
  • OverDrive/Strobe Only
  • Dimmable Via Built In Potentiometer
  • Analog Intensity 0-10VDC Signal
  • Maximum Strobe Time - 125mS
  • Up to 5000 Strobes Per Second
  • 2447 Acrylic Backlight Lens

Smart Vision Lights ODSB75 Technical Specifications

ODSB75 Specifications

Electric Input 24VDC +/5%
Input Current Peak 3 A draw during strobe
Input Power  Peak 72 W during strobe
PNP Trigger  2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC
NPN Trigger  14.4 mA @ Common (0VDC)
Trigger Input  PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both)
Strobe Duration Min. 1 μs | Max. 50 ms
Strobe Frequency Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less*
Duty Cycle  Max 10%*
Red Indicator Led  ON = Light Rest (LED inactive) | OFF = LED/Light Ready
Green Indicator Led  ON = Power
Intensity Limit  270º turn pot — intensity control of 10%–100%. Turn clockwise to increases intensity.
Analog Intensity The output is adjustable from 10%–100% of intensity limit by a 1–10 V DC signal.
Conection 5-pin M12 connector
Ambient Temperature  -10° to 40° C (14° to 104° F) | RH max 80% non-
Storage Temperature  -20° to 70° C (-4° to 158° F) | RH max 80% non-condensing humidity
IP Rating IP50
Weight ~155 g
Compliances CE, RoHS, IEC 62471
Warranty UV LEDs have a 2 year warranty, all other LEDs have a 10 year warranty.
For complete warranty information, visit
smartvisionlights.com/warranty.



BRICK LIGHT OVERVIEW
The Brick Light® has 6 high output, high current LED's in a small housing. Brick Light® is available in light output of White, Red, Amber, Blue, Green, Cyan IR and UV. Brick Light® includes an integrated constant current driver with a built in strobe input with option for PNP or NPN trigger control. No need for an external driver to control the light. The integrated driver also includes variable light intensity control. Light can be controlled by a manual potentiometer or a 0-10VDC analog signal.

SB75 & ODSB75 Brick Spot Light (Backlight)
Six high current LED's and a 75mm active light area provide not only an intense but diffuse light pattern at any given working distance. These series of lights also offers a manual potentiometer intensity control as well as a 0-10 VDC analog intensity control. Heat is dissipated through the aluminum back plate which allows the SB75 Series to be run at a higher current and hence greater intensity. The ODSB75 Series of brick light features an OverDrive Driver with NPN or PNP signal options.

Wavelength Colors
ODSB75 Wavelength Colors Smart Vision Lights

NOTE: This Light is also available in the following SWIR wavelengths: 1050nm, 1150nm, 1200nm, 1300nm, 1450nm, and 1550nm. Please contact us for pricing for these wavelengths.

WIRING
MOUNTING
Mounting is done by use of 4 through holes. Use M4 or 8-32 Hardware. Optional PB75-M5 Mounting Bracket is available.

ACCESSORIES

ODSB75 Downloads

ODSB75 Datasheet | Smart Vision Lights ODSB75 3D STEP Model | Smart Vision Lights
ODSB75 2D DXF Drawing | Smart Vision Lights ODSB75 PDF Dimension Drawing | Smart Vision Lights


Possible Product Configurations:

ODSB75-365
ODSB75-395
ODSB75-470

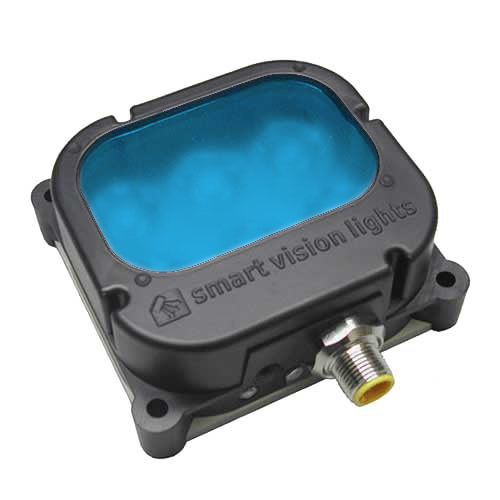

ODSB75-505
ODSB75-530

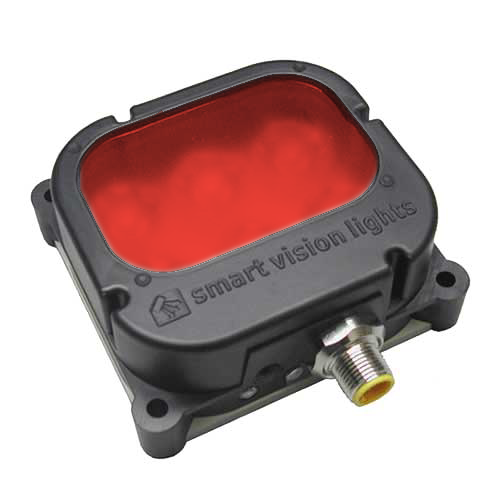

ODSB75-625

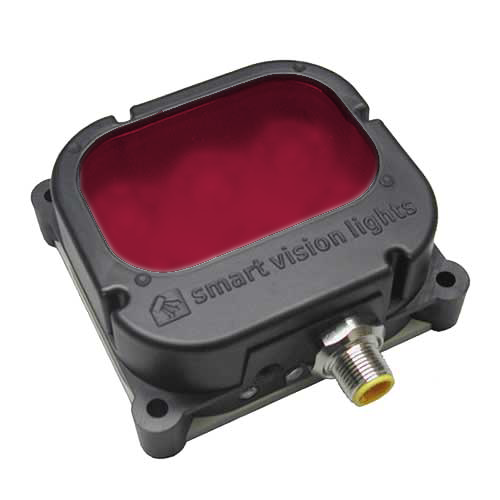

ODSB75-850
ODSB75-940
ODSB75-1050
ODSB75-1150
ODSB75-1200
ODSB75-1300
ODSB75-1450
ODSB75-1550
ODSB75-WHI
