Description

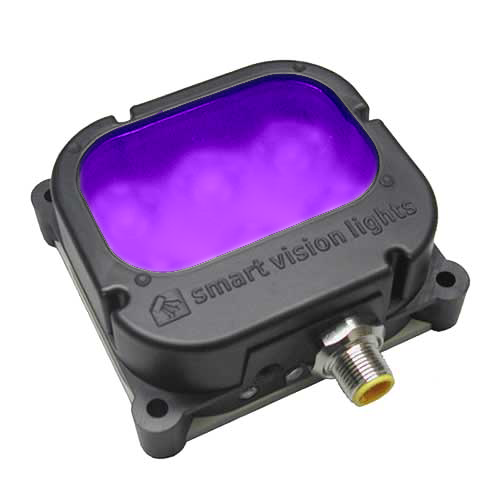

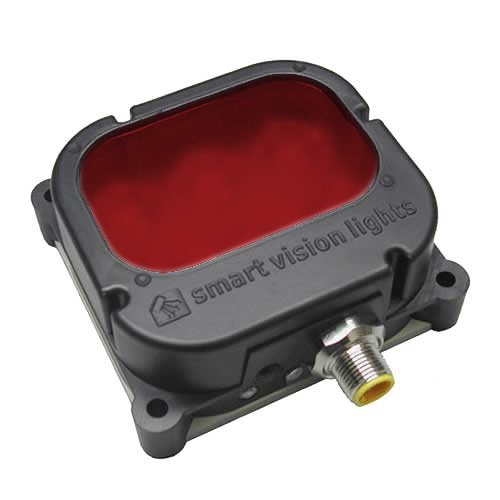

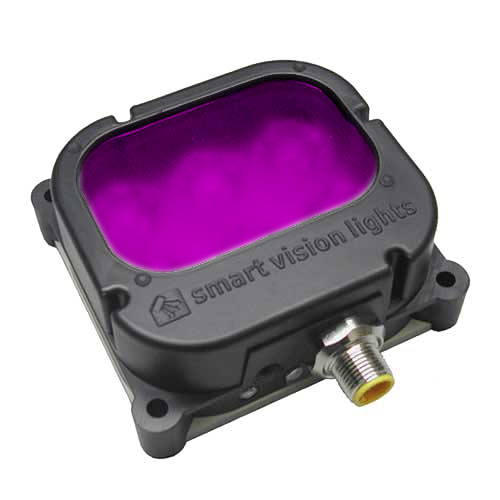

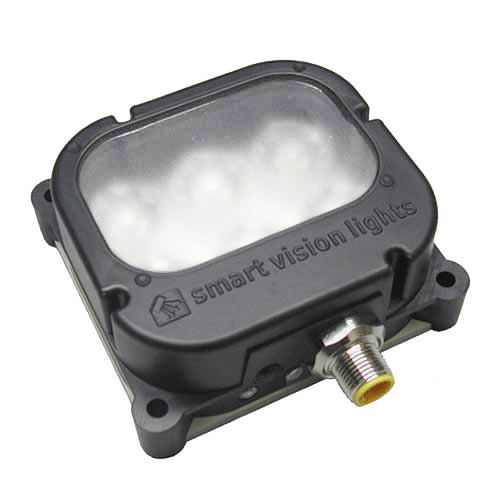

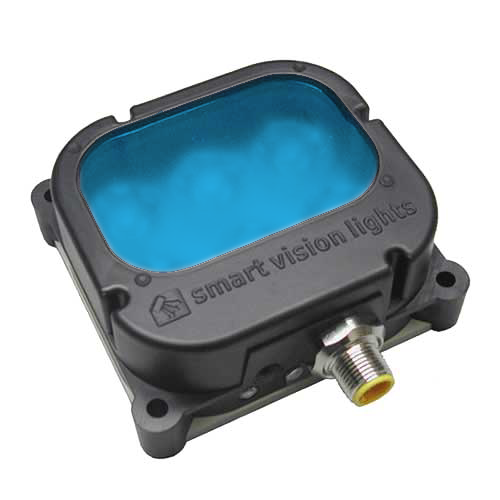

Smart Vision Lights ODS75 Technical Specifications
ODS75 Continuous Operation Specifications
Electrical Input |
24VDC +/–5% |
Input Current | Peak 3 A draw during strobe |
Input Power | Peak 72 W during strobe |
PNP Trigger | 2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC |
NPN Trigger | 14.4 mA @ Common (0VDC) |
Trigger Input | PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both) |
Strobe Duration | Min. 1 μs | Max. 50 ms |
Strobe Frequency | Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less* |
Duty Cycle | Max 10%* |
Red Indicator Led | ON = Light Rest (LED inactive) | OFF = LED/Light Ready |
Green Indicator Led | ON = Power |
Intensity Limit | 270º turn pot — intensity control of 10%–100%. Turn clockwise to increases intensity. |
Analog Intensity | The output is adjustable from 10%–100% of brightness by a 1–10 V DC signal. |
Connection | 5-pin M12 connector |
Operating Temperature | -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity |
Storage Temperature | -20° to 70° C (-4° to 158° F) | RH max 80% non-condensing humidity |
IP Rating | IP50 |
Weight | ~155 g |
Complainces | CE, RoHS, IEC 62471 |
Warranty | UV LEDs have a 2 year warranty, all other LEDs have a 10 year warranty. For complete warranty information, visit smartvisionlights.com/warranty. |
ODS75: Strobe Only Spot Lights using OverDrive
Product Details
- Highest Power LED Lights in the Vision Industry
- SafeStrobe Technology ensures protected operation of LED's
- 5 times brighter than standard high current LED Lights
- Precise current provides stable Light Intensity
- High Speed - Fast Response
- NPN and PNP strobe control
BRICK LIGHT OVERVIEW
The Brick Light® has 6 high output, high current LED's in a small housing. Brick Light® is available in light output of White, Red, Amber, Blue, Green, Cyan IR and UV. Brick Light® includes an integrated constant current driver with a built in strobe input with option for PNP or NPN trigger control. No need for an external driver to control the light. The integrated driver also includes variable light intensity control. Light can be controlled by a manual potentiometer or a 0-10VDC analog signal.
Wavelength Colors
NOTE: This Light is also available in the following SWIR wavelengths: 1050nm, 1150nm, 1200nm, 1300nm, 1450nm, and 1550nm. Please contact us for pricing for these wavelengths.
WIRING
MOUNTING
Mounting is done by use of 4 through holes. Use M4 or 8-32 Hardware. Optional PB75-M5 Mounting Bracket is available.
ACCESSORIES
ODS75 Downloads
Possible Product Configurations:
ODS75-365
ODS75-395
ODS75-470
ODS75-505
ODS75-530
ODS75-625
ODS75-850
ODS75-940
ODS75-1050
ODS75-1150
ODS75-1200
ODS75-1300
ODS75-1450
ODS75-1550
ODS75-WHI
ODS75-365-L
ODS75-395-L
ODS75-470-L
ODS75-505-L
ODS75-530-L
ODS75-625-L
ODS75-850-L
ODS75-940-L
ODS75-1050-L
ODS75-1150-L
ODS75-1200-L
ODS75-1300-L
ODS75-1450-L
ODS75-1550-L
ODS75-WHI-L
ODS75-365-W
ODS75-395-W
ODS75-470-W
ODS75-505-W
ODS75-530-W
ODS75-625-W
ODS75-850-W
ODS75-940-W
ODS75-1050-W
ODS75-1150-W
ODS75-1200-W
ODS75-1300-W
ODS75-1450-W
ODS75-1550-W
ODS75-WHI-W
