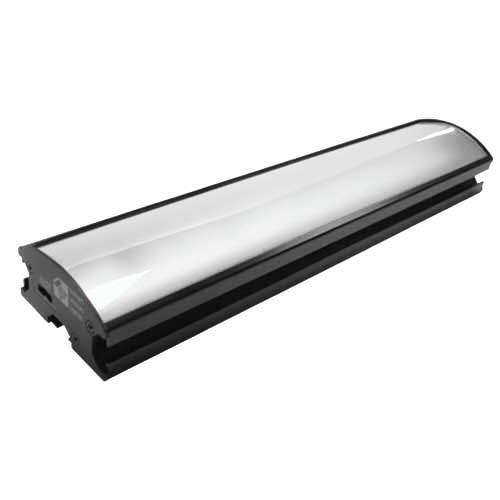

ODLHF300 Overdrive Fluorescent Replacement Light (12")

Smart Vision LightsSKU: ODLHF300-WHI
Lead Time: 3 Business Days

Color: WHITE
Connector: 4 Pin Terminal (Standard)
Polarizer: None (Standard)
Price:
Sale price$472.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

The LHF300 Series of lights was designed as a direct LED replacement for standard fluorescent lighting and provides a homogeneous output. The plug and play design of the Direct-Connect Linear Light Series gives users tremendous flexibility without the concern for additional wiring. The LHF300 array utilizes 30 high intensity LEDs and features a diffuse lens cover designed to disperse the light in the same fashion as a fluorescent light of equivalent length and provides an even distribution. It also features an integrated constant current driver built into the light. Direct-Connect Series Linear Lights utilize 24VDC and can operate in continuous or strobe mode. NPN or PNP strobe triggers can be used to control the pulse of the light.
  • Direct-Connect - Daisy Chain Up To 8 Units
  • T-Slot for Mounting and Connecting Together
  • 3-5x the Intensity of Constant ON
  • Constant Current Driver Built In
  • NPN and PNP Strobe Input
  • OverDrive Mode Only
  • Homogenous Light Pattern

Smart Vision Lights ODLHF300 Technical Specifications

LDHF300 Specifications

Electrical Input 24 V DC +/- 5%
Input Current Max. 2A
Wattage Max. 48 W
On/Off Input  PNP > +4 V DC or greater to activate | NPN > GND (<1 V DC) to activate
PNP Line  4 mA @ 4 V DC | 10 mA @ 12 V DC | 20 mA @ 24 V DC
NPN Line  15 mA @ Ground (0VDC)
Yellow Indicator Led  LED Strobe Indicator ON = Light Active
Green Indicator Led  ON = Power
Continuous Mode  NPN can be tied to ground OR PNP can be tied to 24 V DC (not both)
Potentiometer 270º turn pot – Intensity control of 10% to 100%. Turn clockwise to increases intensity
Analog Intensity The output is adjustable from 10–100% of brightness by a 1–10 V DC signal.
(Jumpering pin 5 to pin 1 will provide maximum intensity)
Connection 5-pin M12 connector
Ambient Temperature  -18º–40º C (0º–104º F)
IP Rating  IP50
Weight  ~455g
Compliances CE, RoHS, IEC 62471



ODLHF300 Downloads

ODLHF300 Datasheet | Smart Vision Lights ODLHF300 3D STEP Model | Smart Vision Lights
ODLHF300 2D DXF Drawing | Smart Vision Lights ODLHF300 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:
ODLHF300-M12-470
ODLHF300-M12-625
ODLHF300-M12-850
ODLHF300-M12-WHI
ODLHF300-470
ODLHF300-625
ODLHF300-850
ODLHF300-WHI
ODLHF300-M12-470-LPI
ODLHF300-M12-625-LPI
ODLHF300-M12-WHI-LPI
ODLHF300-470-LPI
ODLHF300-625-LPI
ODLHF300-WHI-LPI
