LP830-72 NIR Longpass Filter M72x0.75


Price:
Sale price$305.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

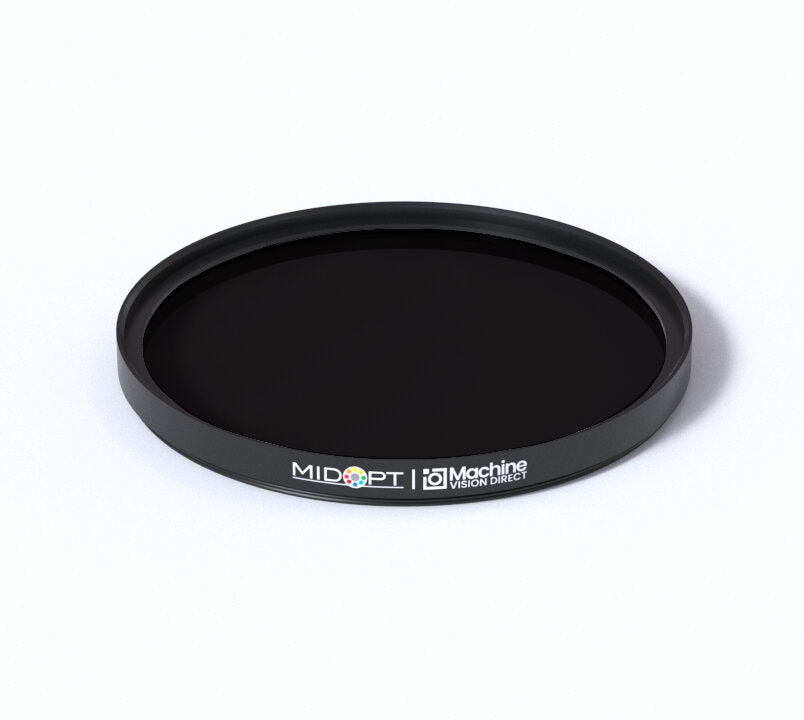

MidOpt LP830-72 NIR Longpass Filter

LP830 is suggested for use with infrared LED lighting emitting at 880nm or 850nm when it is also desirable to transmit other longer infrared wavelengths as well. Otherwise we recommend BP880 or BP850 filters for their longer wavelength blocking and their overall higher peak transmissions.

MidOpt LP830-72 Technical Specifications:

Product Line / Series LP - Longpass
Filter Model LP830

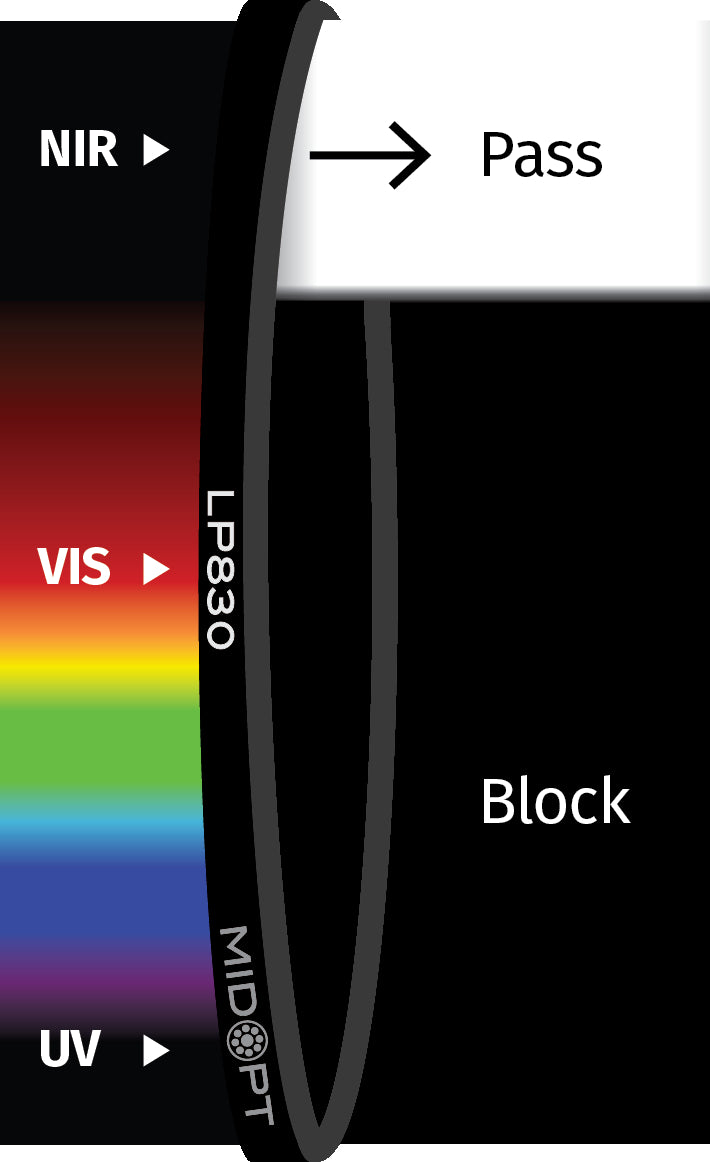

Filter Type NIR Longpass
StablEDGE Yes
Useful Range 845nm - 1100nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 72mm
Filter Thread M72x0.75
Outer Diameter 80mm
Clear Aperture 71.9mm
Overall Thickness 6.5mm
Exposed Thickness 4.5mm
FWHM Not Specified

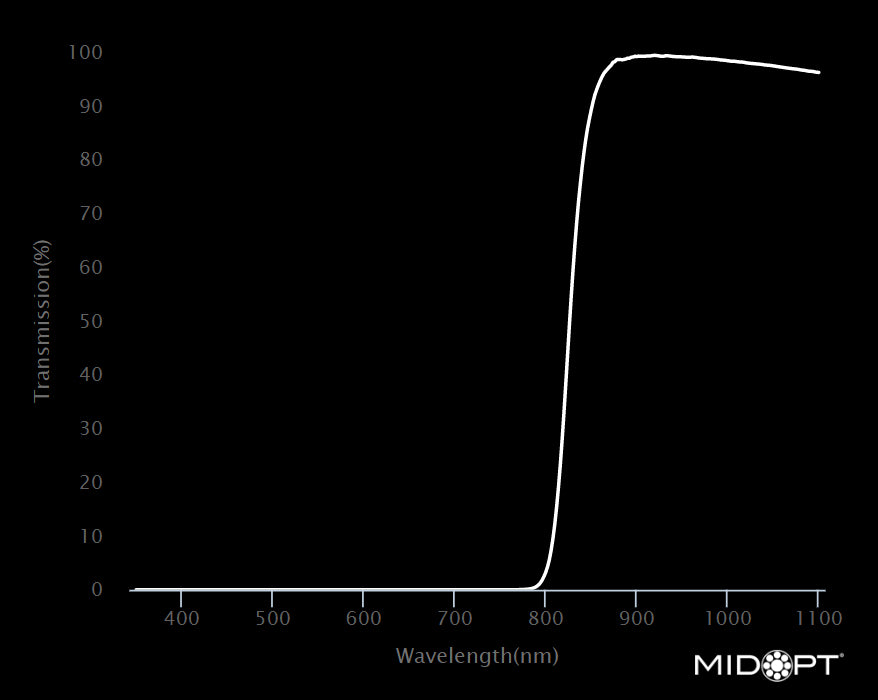

Cut-on Wavelength 50% T 830nm
Average Transmission Not Specified
Brand Midwest Optical Systems
