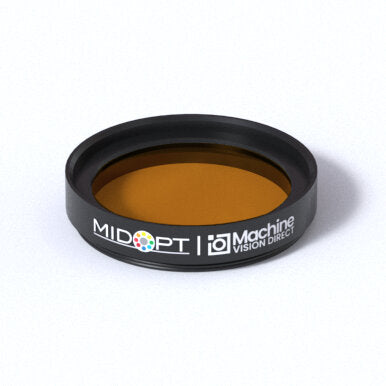

BP590-30.5 Broad Bandwidth Orange Bandpass Filter M30.5x0.5

Midwest Optical SystemsSKU: BP590-30.5

Sale price$132.75 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


MidOpt BP590-30.5 Broad Bandwidth Orange Bandpass Filter

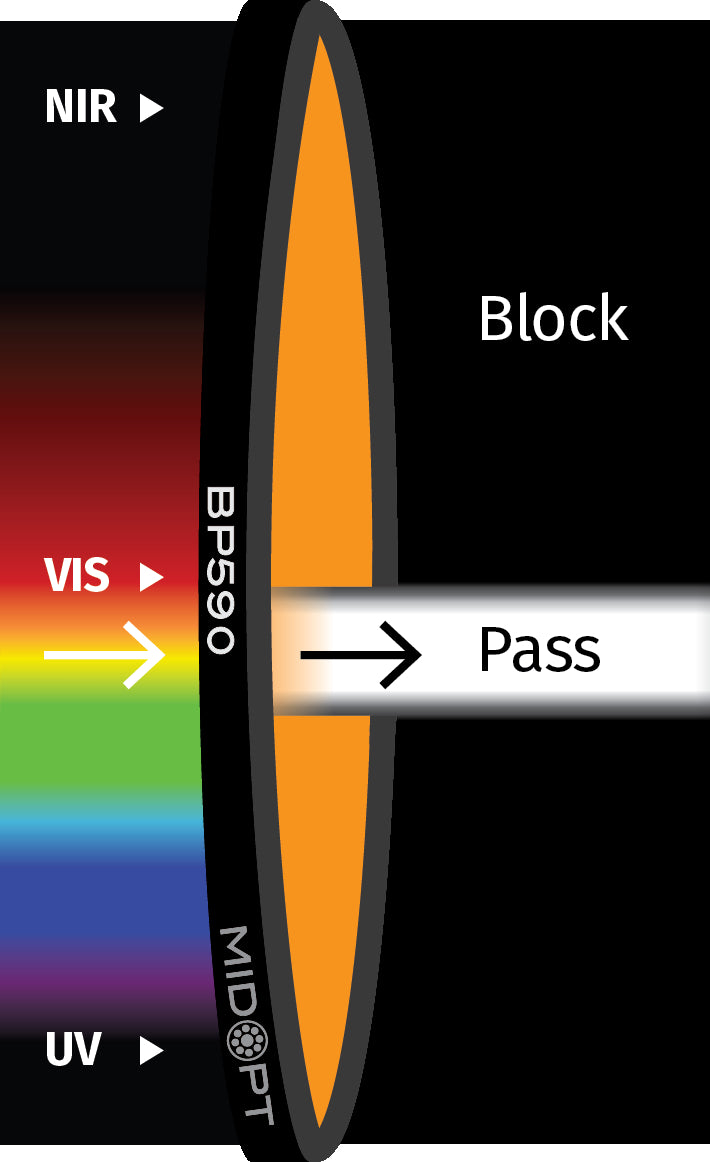

BP590 filters are recommended for use in amber or orange LED lighting systems. These filters are also widely used in fluorescence imaging applications, particularly with dyes such as ethidium bromide or when working with Qdot 565, 585, or 605.

MidOpt BP590-30.5 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP590
Filter Type Broad Bandwidth Orange Bandpass
StablEDGE Yes

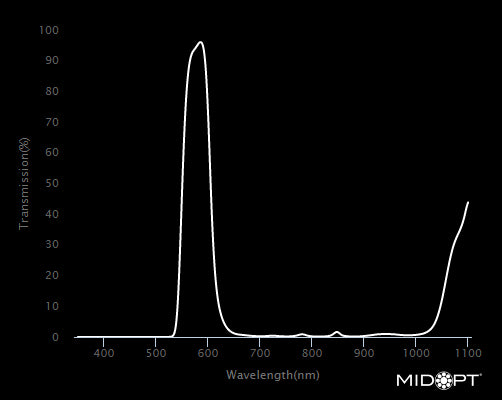

Useful Range 560nm - 600nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 30.5mm
Filter Thread M30.5x0.5
Outer Diameter 36mm
Clear Aperture 29mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 75nm
Compatible LED 590nm
Average Transmission Not Specified
Brand Midwest Optical Systems
