BP505-30.5 Broad Bandwidth Cyan Bandpass Filter M30.5x0.5

Midwest Optical SystemsSKU: BP505-30.5

Price:
Sale price$132.75 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

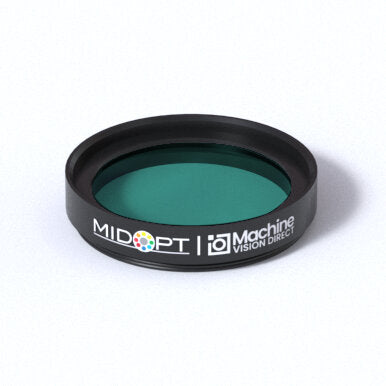

MidOpt BP505-30.5 Broad Bandwidth Cyan Bandpass Filter

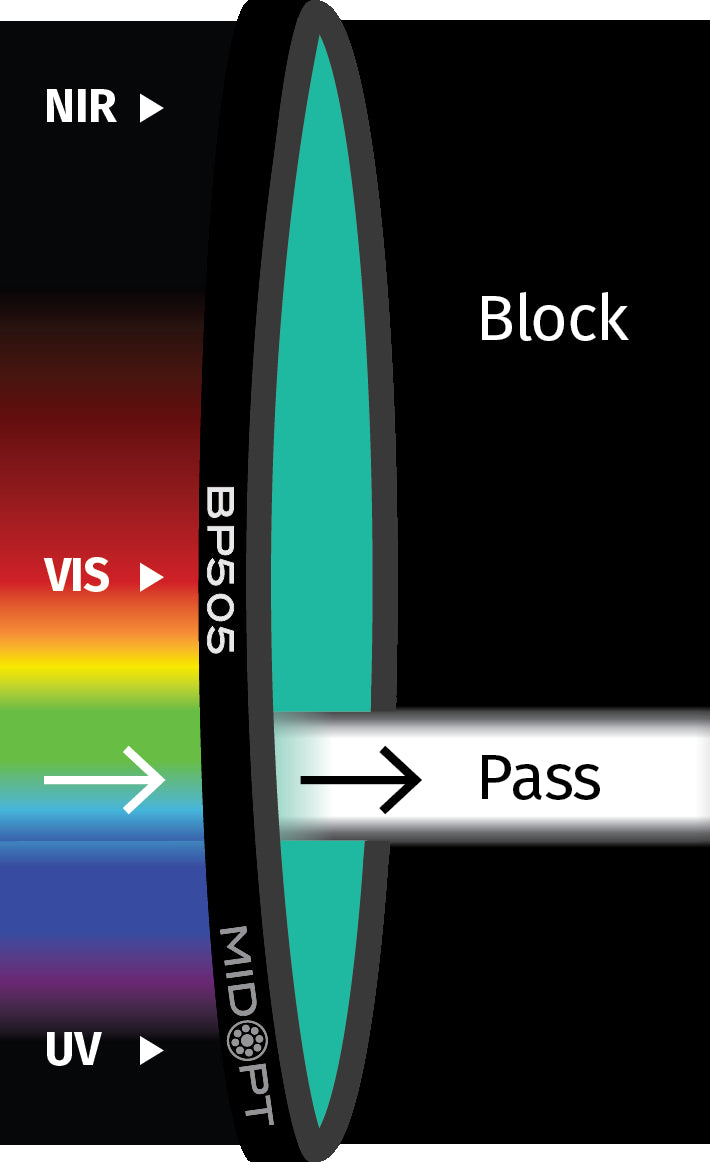

MidOpt BP505 Cyan Blue Bandpass Filters for Machine Vision are single-substrate, hard-coated filters designed to match the output of most cyan LEDs. Coupled with the spectral sensitivity of most CCD/CMOS sensors in use today, which also peaks in this range, this filter can result in incredibly bright images and very high contrast. It is beneficial for line scan/wide-angle applications.

MidOpt BP505-30.5 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP505
Filter Type Broad Bandwidth Cyan Bandpass
StablEDGE Yes

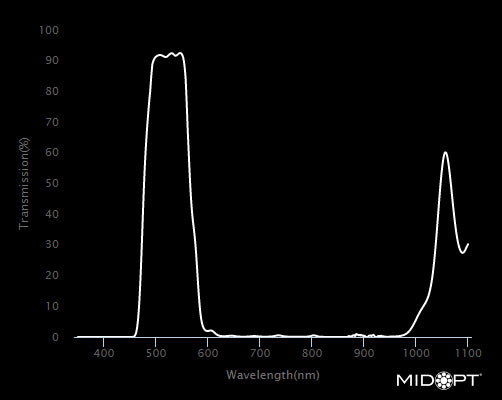

Useful Range 485nm - 550nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 30.5mm
Filter Thread M30.5x0.5
Outer Diameter 36mm
Clear Aperture 29mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 90nm
Compatible LED 505nm
Average Transmission Not Specified
Brand Midwest Optical Systems
