BP450-30.5 Broad Bandwidth Indigo Bandpass Filter M30.5x0.5

Midwest Optical SystemsSKU: BP450-30.5

Price:
Sale price$132.75 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

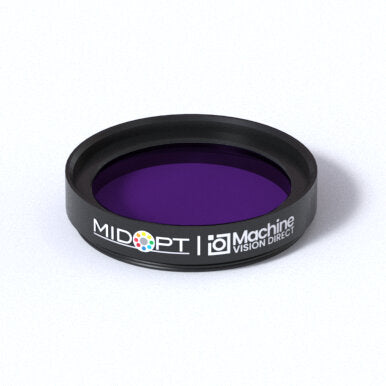

MidOpt BP450-30.5 Broad Bandwidth Indigo Bandpass Filter

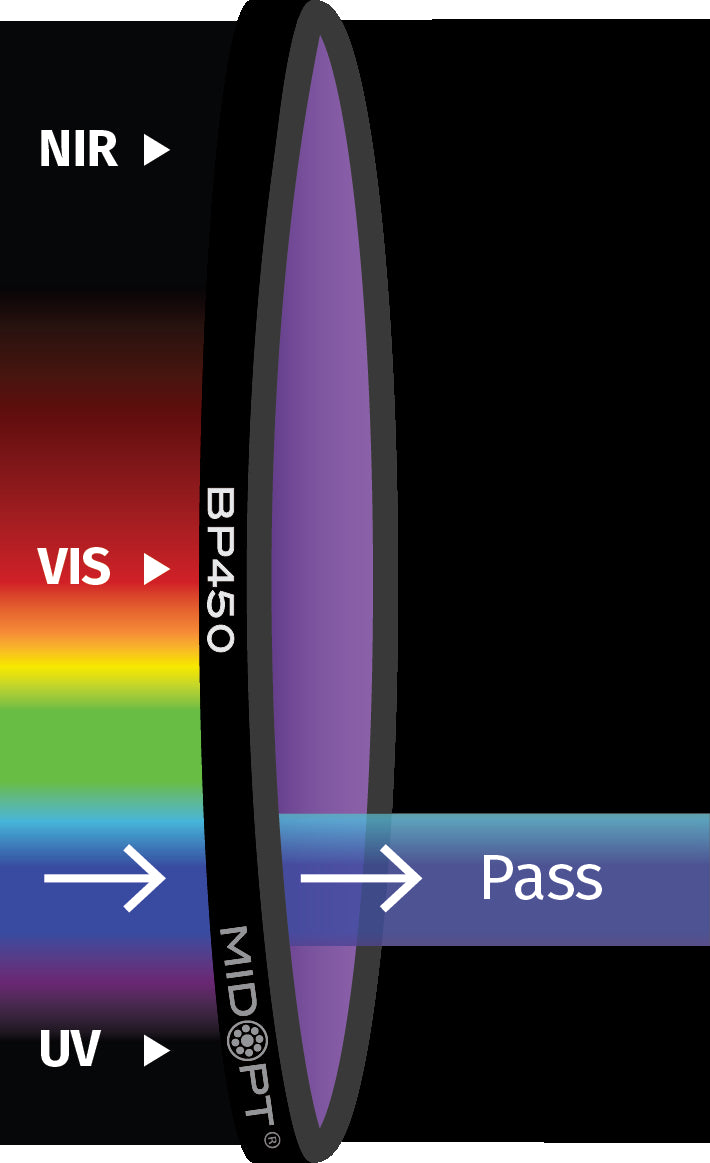

BP450 filters enhance viewing of subjects illuminated by a 450nm blue LED or laser light source and any UV- excited blue fluorescence emissions (420-470nm). Its broad bandwidth and high peak (T ≥90%) transmission result in significantly brighter, higher-contrast images. For most machine vision UV fluorescence applications, a Bandpass filter is necessary.

MidOpt BP450-30.5 Technical Specifications:

Product Line / Series BP - Broad Bandwidth
Filter Model BP450
Filter Type Broad Bandwidth Indigo Bandpass
StablEDGE Yes

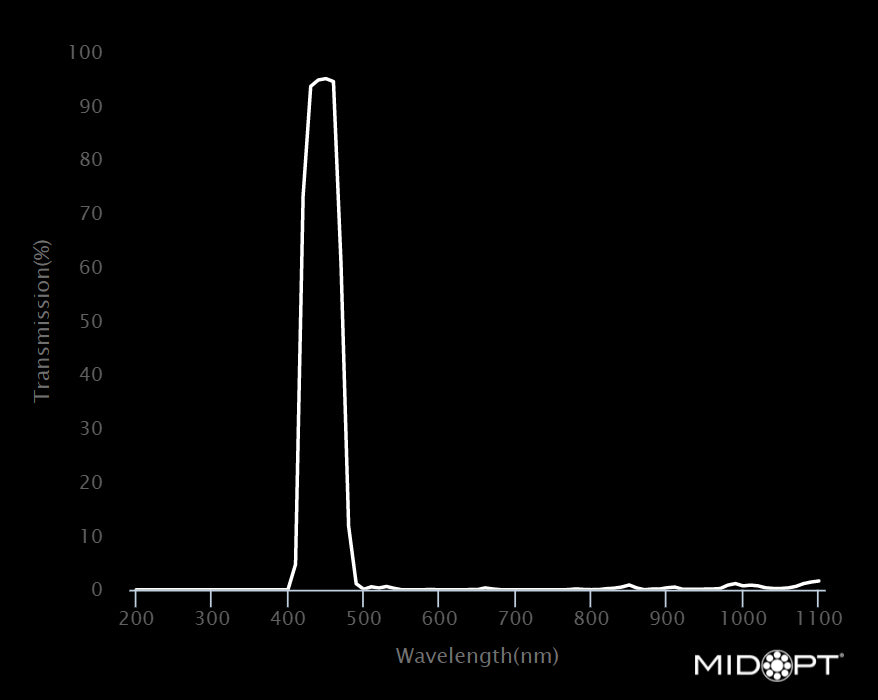

Useful Range 425nm - 470nm
Tolerance +/- 10nm
Peak Transmission ≥90%
Surface Quality 40/20
Filter Size 30.5mm
Filter Thread M30.5x0.5
Outer Diameter 36mm
Clear Aperture 29mm
Overall Thickness 7mm
Exposed Thickness 5.2mm
FWHM 60nm
Compatible LED 450nm
Average Transmission Not Specified
Brand Midwest Optical Systems
