BF590 Backlight fluoreSHEET 356mm x 280mm (11" x 17") | BF590-R432x280

Midwest Optical SystemsSKU: BF590-R356x280

Sale price$750.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

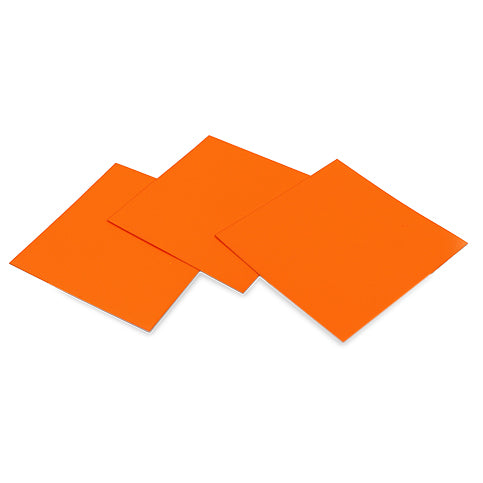

Achieve a backlight effect using front illumination with the Backlight fluoreSHEET™ by MidOpt®.

Backlights provide sharp contrast to outline a shape, edges or an opening. But applications with space constraints may dictate backlight utilization. MidOpt introduces the backlight fluoreSHEET™ (BF590). When the fluoreSHEET™ is illuminated from the front with a blue LED light, it emits an orange fluorescence. A backlight effect can be created by using a MidOpt Orange Bandpass Filter (BP590) to capture the orange emission and block the blue LED excitation, giving the appearance of a bright white diffuse background in a monochrome image.

  • Adhesive Backing
  • Repels water
  • Tear-resistant
  • Flexible

Available Sizes:

MidOpt Backlight Fluoresheet Sizes

To achieve a backlight effect, pair the Backlight fluoreSHEET™ with MidOpt Orange Bandpass Filter

BP590 Orange Bandpass Filter

The BP590 Orange Bandpass Filter is necessary to capture the orange wavelength that is being emitted from the fluoreSHEET™, while blocking the blue excitation from the LED light source. The result is a bright white diffuse background similar to the effect of backlight illumination.

MidOpt BF590 Backlight Fluoresheet

Image Results:

MidOpt Backlight Fluoresheet images

MidOpt Backlight Fluoresheet Images 2

MidOpt Backlight Fluoresheet Images 3
