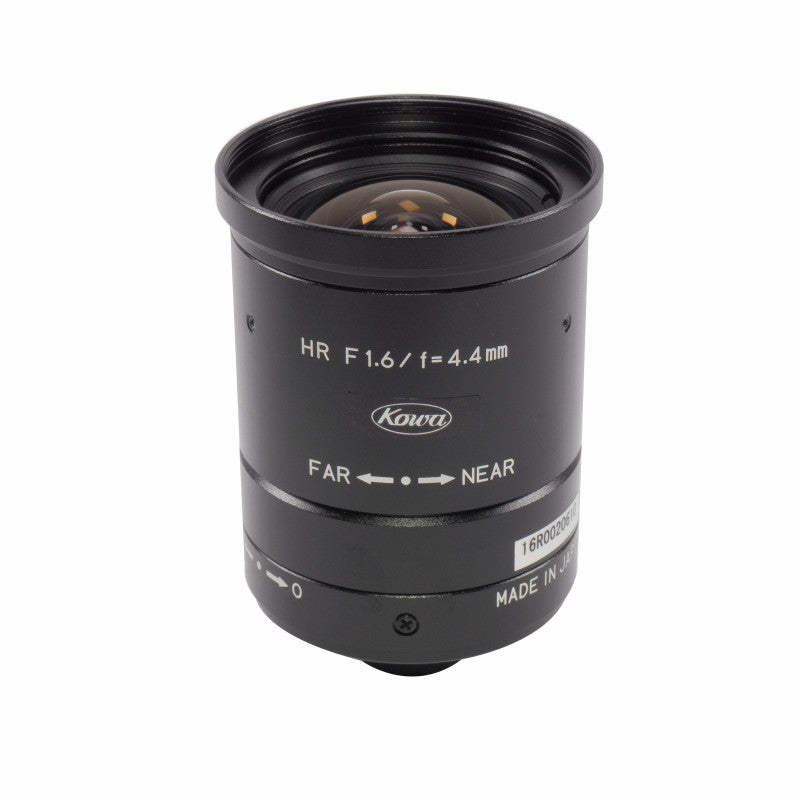

Kowa LM4NCM 4.4 mm 1/1.8″ f/1.6 - f/16 C-Mount Fixed Focal Length Lens

Save $156.70
KowaSKU: LM4NCM
Lead Time: Not Specified

Price:
Sale price$313.30 USD Regular price$470.00 USD

Shipping calculated at checkout

Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Kowa LM4NCM

With a metal body and locking screws, the Kowa 1/1.8″ LM4NCL series lenses can be used in various machine vision and robotics applications where high resolution is required.

LM4NCM Technical Specifications:

Product Line / Series NCM/JCM
Lens Type Fixed Focal Length
IP Rating Not Specified
Focal Length 4.4 mm
ƒ/N ƒ/1.6 - ƒ/16
Image Circle Diameter 9 mm
Image Size Dimensions 5.4 mm x 7.2 mm
Imager Format 1/1.8″
Light Spectrum Visible
Resolution (MP) 2
Resolution (Pixel Size) 4.5 μm
Resolution (Line Pairs per mm @ Center) 120
Resolution (Line Pairs per mm @ Corner) 100
Weight 150 Grams
Mount C-Mount
Filter Thread M43-0.75
Minimum Object Distance 100 mm
Front Diameter 30 mm
Rear Effective Diameter 8 mm
Focus Control Manual
Iris Control Manual
Focus Range 0.1 m - ∞
Back Focal Length 8.75 in air
Operating Temperature Range -10 to +50 °C
Storage Temperature Range Not Specified
Dimensions 43 × 43 × 0.75 mm
TV Distortion (%) -0.2 - -0.1 - -0.13
Clear Aperture Front 30 mm
Clear Aperture Rear 8 mm
Exit Pupil Position -61.4mm
Angle of View (Degrees) Dia 89.4 - 82.5 - 66.7
