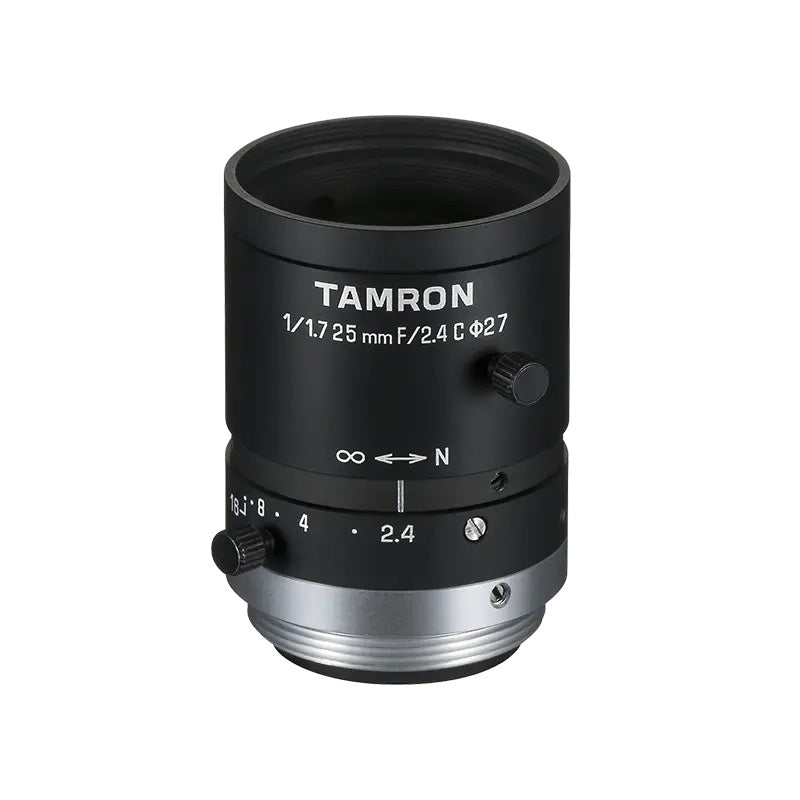

Tamron M117FM25
Tamron M117FM Series machine vision lenses are made for 1/1.7″ image sensors and can resolve a pixel pitch of up to 2.4µm. Built in a compact body with a rugged mechanical design, these are ideal for many machine vision applications, such as robotics and machine vision applications with compact space requirements. These lenses feature high contrast and resolution and ultra-low distortion. The lock screw can be replaced with an embedding-type set screw, reducing the diameter of the lens barrel for an even more compact installation.
M117FM25 Technical Specifications:
Product Line / Series | M117FM |
Lens Type | Fixed Focal Length |
IP Rating | Not Specified |
Focal Length | 25 mm |
ƒ/N | ƒ/2.4 - ƒ/16 |
Imager Format | 1/1.7″ |
Light Spectrum | Visible |
Resolution (MP) | 6 |
Resolution (Pixel Size) | 2.4 μm |
Weight | 45 |
Mount | C-Mount |
Filter Thread | M27-0.5 |
Minimum Object Distance | 100 mm |
Magnification | Not Specified |
Front Diameter | Not Specified |
Rear Effective Diameter | Not Specified |
Focus Control | Manual with Lock |
Iris Control | Manual with Lock |
Zoom Control | None |
Focus Range | 0.1 m - ∞ |
Operating Temperature Range | -10 to +60 °C |
Dimensions | 29 × 29 × 36 mm |
TV Distortion (%) | -0.1 |
FOV @ 1/1.7″ | 17.4° × 13.1° |
FOV @ 1/1.8″ | 17.1° × 11.5° |
FOV @ 1/3″ | 14.8° × 11.2° |
FOV @ 1/2″ | 14.8° × 11.2° |
