SXP80 High Powered Structured Light Pattern Projector

Smart Vision LightsSKU: SXP80-WHI
Lead Time: 3 Business Days

Color: WHITE
Price:
Sale price$1,449.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

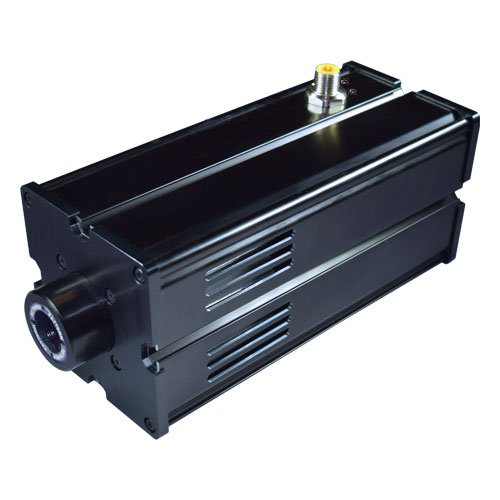

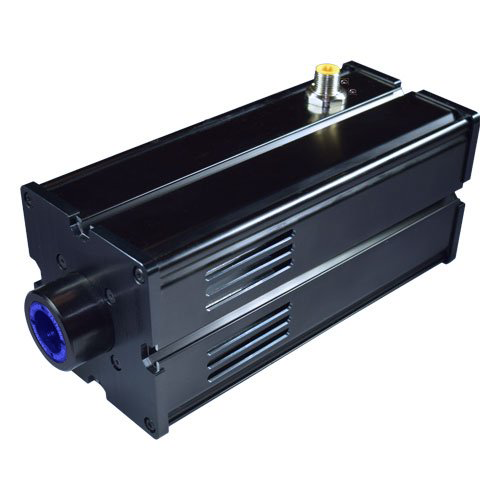

SXP80 80mm Focusable LED Projector 2nd Generation

Smart Vision Lights is pleased to release a new series of LED structured light projectors. LED projector uses patterns and optics to provide a focused structured light. SP pattern projectors integrate precisely etched masks. Any kind of pattern shape can be easily supplied, integrated and projected. The size of the projection area can be easily modified by interchanging the projection optics. Projectors integrate standard C-mount 2/3" lenses. Telecentric lenses can also be used for telecentric pattern projection.

Product Details

  • Driver built in - No External wiring to a driver
  • PNP and NPN Strobe input
  • Analog intensity 0-10VDC signal
  • Built-in NanoDrive™ delivers full power to the light in 500 nanoseconds for either continuous or OverDrive strobe operation
  • 5-pin M12 industrial standard connector
  • PNP and NPN trigger signal input
  • Multiple interchangeable patterns available
  • Accepts standard C-Mount lenses

Smart Vision Lights SXP80 Technical Specifications

SXP80 Continuous Operation Specifications

Electrical Input 24VDC +/–5%
Input Current Max. 4.0 A
Wattage Max. 96 W
PNP  Trigger  4mA @ 5VDC
8mA @ 10VDC
15mA @ 24VDC
NPN Trigger 15mA @ Ground (0VDC)
OverDriveTM Strobe Mode Not applicable
Strobe Duration Not applicable
Duty Cycle Not applicable
Strobe Input Not applicable
Continuous Operation Mode NPN can be tied to ground OR PNP can be
tied to 24VDC (not both)
On/Off Input PNP: +4VDC or greater to activate
NPN: GND (<1VDC) to activate
Connection 5-pin M12 connector
Power Indicator Lights up green when power is applied
Status Indicator Lights up green when activated and red when the lights is in fault condition
Ambient Temperature 0º–40º C (32º–104ºF)
Weight 960g
Compliances CE, ROHS, IEC 62471
Warranty 3 year warranty. For complete warranty information, visit smartvisionlights.com/warranty.



SXP80 Overdrive Strobe Mode Specifications

Electrical Input 24VDC +/–5%
Input Current Max. 8.8 A
Wattage Max. 211 W
PNP Line 4mA @ 5VDC
8mA @ 10VDC
15mA @ 24VDC
NPN Line 15mA @ Ground (0VDC)
OverDriveTM Strobe Mode Connect pin 5 to GND (see Wiring Configuration for more information)
Strobe Duration Min. 10 μs | Max. 50 ms (see SafeStrobe TM Technology for more information)
Duty Cycle Max. 10%
Strobe Input PNP: +4VDC or greater to activate NPN: GND (<1VDC) to activate
Continuous Operation Mode Not applicable
On/Off Input Not applicable
Connection 5-pin M12 connector
Power Indicator Lights up green when power is applied
Status Indicator Lights up green when activated and red when the lights is in fault condition
Ambient Temperature 0º–40º C (32º–104ºF)
Weight 960g
Compliances CE, ROHS, IEC 62471
Warranty 3 year warranty. For complete warranty information, visit smartvisionlights.com/warranty.



SXP80 80mm Focusable LED Projector 2nd Generation
The SXP80 Series is among the highest intensity LED based projectors available in the market. With the ability to produce a thin and well-defined light pattern, the SXP80 performs with intensities comparable to that of laser projectors but without the speckle and can be used both far-field and near-field applications. The projector features Multi-Drive along with Smart Vision Lights newest high-speed, high-output driver technology and forced-air cooling. This combination provides very fast high energy strobe capabilities as well as the highest intensity continuous operation available. Multiple interchangeable pattern styles are available, along with optional custom patterns.

Wavelength Colors

SXP30 Projector Light Wavelength Colors

PATTERNS
A Variety of Standard Patterns are available. Custom Patterns can be made, with a minimum order of 10 patterns. Contact sales@machinevisiondirect.com with custom inquiries.

LENS SELECTION
Please Reference the following chart to determine the approximate mounting distance and correct lens reqruied to generate the needed pattern
PROJECTOR DIAGRAM CHART

WIRING
Wiring Configuration for operation

MOUNTING
Every side of the light features a T-slot for easy mounting. Each light comes with two M5 screws and two T-nuts

Smart Vision Lights SXP80 Mounting

SXP80 Downloads

SXP80 Datasheet | Smart Vision Lights
SXP80 3D STEP Model | Smart Vision Lights
SXP80 2D DXF Drawing | Smart Vision Lights
SXP80 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:
SXP80-470
SXP30-530
SXP30-625
SXP30-WHI
