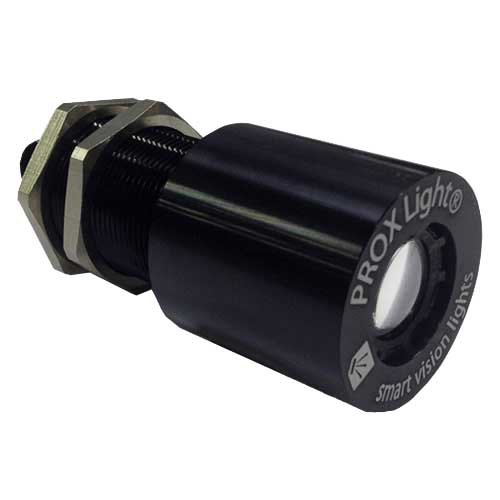

SXA30 30mm Adjustable Focus Prox Light - 2nd Generation

Smart Vision LightsSKU: SXA30-WHI
Lead Time: 3 Business Days

Color: WHITE
Price:
Sale price$392.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

30mm Barrel Adjustable Spot Light 2nd Generation - "Prox Light"
The Prox Light series of spotlights feature single 5W LEDs housed in small 30mm barrels sensor housings. The housings are industry standard threaded barrel M30x1.5 style used for proximity and photoelectric sensors. The lights are available in white, red, amber, blue, green cyan, IR and UV light output. Like the entire line of Smart Vision Lights, the Prox Light series includes an integrated constant current driver inside every light along with built-in strobe input with option for PNP or NPN trigger control. The integrated driver eliminates the need for wiring between the light and external driver and limits current to the LED while providing constant stable power. The light's PNP or NPN strobe triggers control light pulse timing.

Product Details

  • Telescoping lens
  • Compact 30mm diameter design
  • Driver built in - No external wiring to a driver
  • Homogeneous light pattern
  • Continuous operation or Strobe mode
  • Analog intensity 0-10VDC signal
  • One, 1mm² die high current LEDs

Smart Vision Lights SXA30 30mm Technical Specifications

SXA30 30mm Specifications

Electrical Input 24 V DC +/- 5%
Input Current Max. 200 mA
Input Power Max. 5 W
PNP Trigger 2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC
NPN Trigger 14.4 mA @ Ground (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both)
Continuous Mode Connect pin 5 to 1-10 VDC (10 - 100% output); 24 VDC (Max)
Power Indicator Turns green when powered up
Status Indicator Strobe indicator will turn red when on
Analog Intensity The output is adjustable from 10%–100% of brightness by a 1–10VDC signal. (Jumpering pin 5 to pin 1 will provide maximum intensity)
Connection 5-pin M12 connector
Operating Temperature -10° - 40° C (14°-104° F) | RH max 80% non-condensing humidity
Storage Temperature -20° - 70° C (-4°-158° F) | RH max 80% non-condensing humidity
IP Rating IP50
Weight ~320g
Compliances CE, RoHS, IEC 62471
Warranty 2 years*



SXA30 Light Series OVERVIEW
The SXA30 Series is the first series of spot lights featuring an adjustable length lens allowing its user to select the correct spot size needed for the specific application without having to adjust the position of the whole light. The SXA30 Series of Spot Lights also offers a completely homogeneous light pattern at any working distance for a very define and even projected spot. The versatility of the SXA30 Series and its convenient mounting options make this light the ideal spotlight.

Wavelength Colors
SXA30 Prox Light Wavelength Colors

NOTE: This Light is also available in the following SWIR wavelengths: 1050nm, 1150nm, 1200nm, 1300nm, 1450nm, and 1550nm. Please contact us for pricing for these wavelengths.

WIRING
Wiring Configuration for operation

MOUNTING
Multiple mounting brackets are available. All standard Prox Lights utilize an M30x1.5 Thread for mounting.

SXA30 Downloads

SXA30 Datasheet | Smart Vision Lights SXA30 3D STEP Model | Smart Vision Lights
SXA30 2D DXF Drawing | Smart Vision Lights SXA30 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:

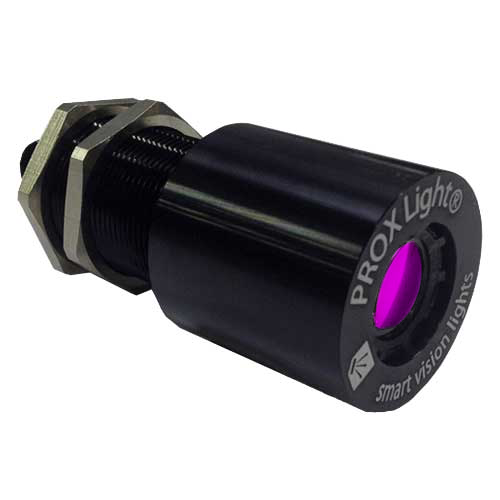

SXA30-365
SXA30-395
SXA30-470

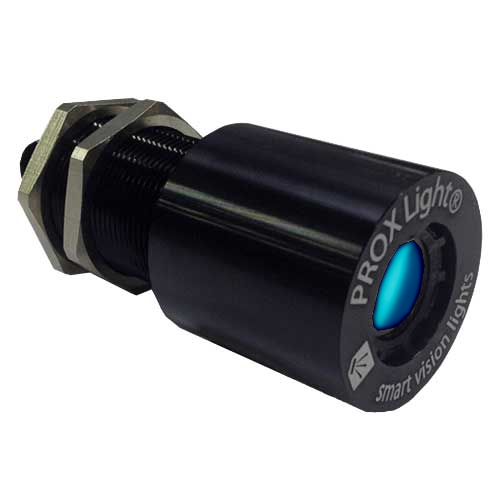

SXA30-505
SXA30-530
SXA30-625
SXA30-850

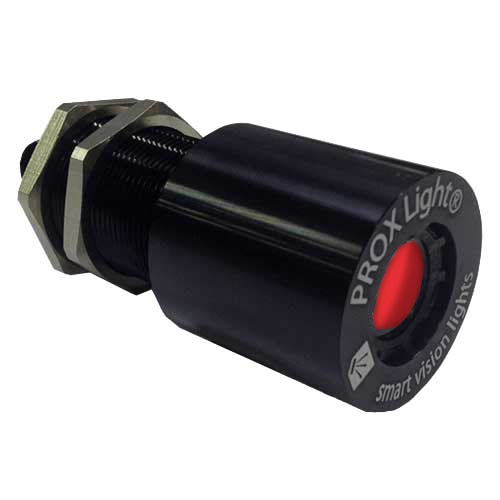

SXA30-940
SXA30-WHI
