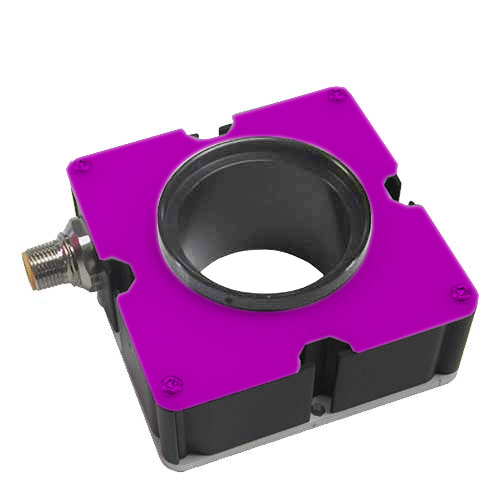

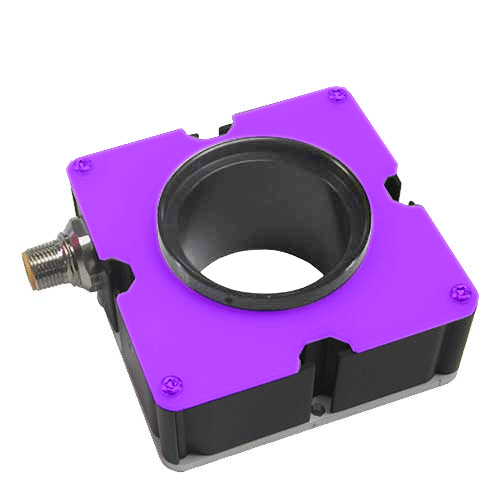

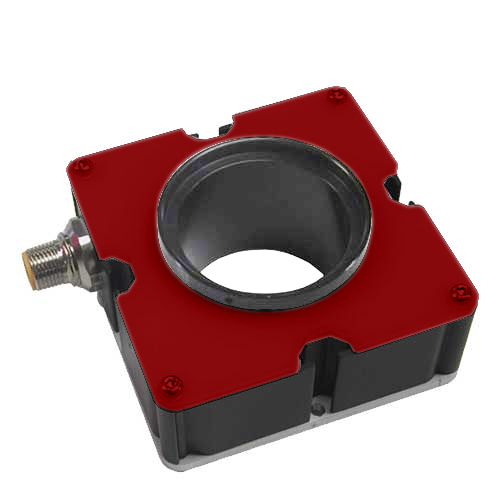

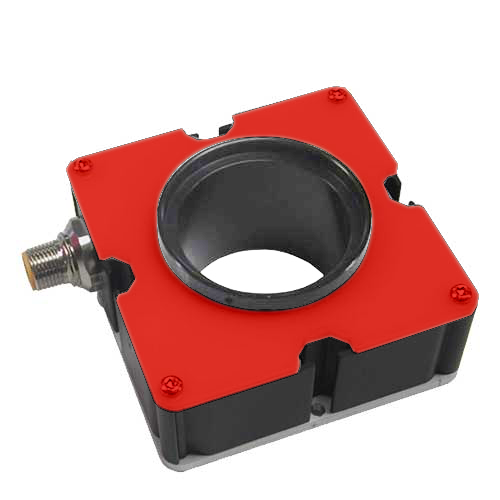

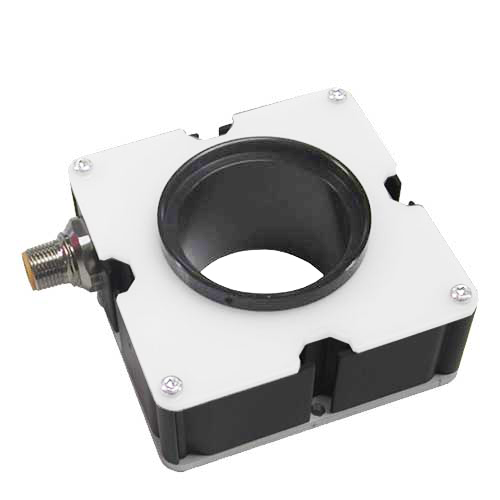

RD80 Ring Lights Product Details
The RD80 is the same as the R80 Ring Light from Smart Vision Lights with the addition of an integrated Diffuser.
- T-Slot for mounting
- Conversion adapters for different cameras
- PNP and NPN strobe input
- Continuous operation or strobe mode
- Dimmable via built in potentiometer
- Analog intensity 0-10VDC signal
- Four, 1mm² die high current LEDs
Smart Vision Lights RD80 Technical Specifications
RD80 Continuous Operation Specifications
|Electrical Input||24VDC +/–5%|
|Input Current||Max. 350 mA|
|Strobe Input||PNP > +4VDC or greater to activate | NPN > GND (<1VDC) to activate|
|PNP Line||4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC|
|NPN Line||15 mA @ ground (0VDC)|
|Yellow Indicator LED||LED Strobe Indicator ON = Light Active|
|Green Indicator LED||ON = Power|
|Continuous Mode||NPN can be tied to ground OR PNP can be tied to 24VDC (not both)|
|Potentiometer||270º turn pot — intensity control of 10%–100%. Turn clockwise to increases intensity.|
|Analog Intensity||The output is adjustable from 10%–100% of brightness by a 1–10VDC signal. (Jumpering pin 5 to pin 1 will provide maximum intensity.)|
|Connection||5-pin M12 connector|
|Ambient Temperature||-18º–40ºC (0º–104ºF)|
|Compliances||CE, RoHS, IEC 62471|
|Warranty||10 years. For complete warranty information, visit smartvisionlights.com/warranty.|
All EZ Mount LED Ring Light Mount Directly to a Camera Lens
The EZ Mount LED Ring Light can be quickly and easily adapted to any vision system with either of four standard mounting options. First, there is a standard M46 thread protruding from the back of the EZ Mount LED Ring Light. Using readily available step-up or step-down rings it can be mounted directly to the threads found on the front end of most lenses. Second is the ability to mount the lens at the front end of the EZ Mount LED Ring Light. Once again, an off-the-shelf step up or step down adapter ring can be used to adapt lenses with M43 or smaller filter mounting threads. A flange at the front end of the EZ Mount LED Ring Light holds the step ring with three set screws, and the camera lens is inserted through the center of the EZ Mount LED Ring Light and threaded onto the step ring. In those few cases where the lens's locking thumbscrews may prevent the lens from fitting through the center of the EZ Mount LED Ring Light, extra low-profile replacement set screws are included, allowing the protruding thumbscrews to be removed. Step up and Step down adapter rings are not included with the light. Third is a T-slot on all sides. Standard industrial T-nuts can be dropped into the slot for mounting. Fourth way to mount the light is using the threaded M4 holes on the back plate of light. The EZ Mount LED Ring Light are a high output LED light in an aluminum housing. Housing uses industry standard T-Slots for ease of mounting. Ring Lights are available in light output of White, Red, Amber, Blue, Green, Cyan, IR and UV. Ring Light includes an integrated constant current driver with a built in strobe input with option for PNP or NPN trigger control. No need for an external driver to control the light. The integrated driver also includes variable light intensity control. Light can be controlled by a manual potentiometer or a 0-10VDC analog signal.
RD80 RING LIGHT OVERVIEW
The all-metal construction of the Ring Light Series of lights provides a small particle resistant and all-around durable light. Its simple plug-and-play 5 Pin M12 connector allows for ease of use while allowing for full control. The 0-10 VDC intensity control assists in gaining full control of the light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kits adapters. The RD80 operates with either an NPN or a PNP signal and runs on an industry standard 24 VDC.
MOUNTING USING THREAD ADAPTERS
Thread Adapters (Or Direct to Camera Mount Adapters) are both available for mounting the EZ Mount Ring Lights directly to your lens or camera body. Please Reference the Datasheet for your respective lens to confirm thread size prior to ordering a thread adapter. Direct to Camera Mount Adapters are also thread adapters that mount the light directly to the body of your camera.
Possible Product Configurations:
