RC130 Near Collimated EZ Mount Ring Light
(R80 Pictured)
Product Details
- T-Slot for mounting
- Conversion adapters for different cameras
- PNP and NPN strobe input
- Continuous operation or strobe mode
- Dimmable via built in potentiometer
- Analog intensity 0-10VDC signal
- Four, 1mm² die high current LEDs
Smart Vision Lights RC130 Technical Specifications
RC130 Continuous Operation Specifications
| Electrical Input | 24VDC +/–5% |
| Input Current | Max. 460mA |
| Input Power | Max. 11.1W |
| PNP Trigger | 2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC |
| NPN Trigger | 14.4 mA @ ground (0VDC) |
| Trigger Input | PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both) |
| Power Indicator | Turns green when powered up |
| Status Indicator | Strobe indicator will turn red while resting and turn off when ready |
| Continuous Mode | Strobe indicator will turn red while resting and turn off when ready |
| Intensity Limit | 270º turn pot – intensity control of 10%–100%. Turn clockwise to increases intensity limit. |
| Analog Intensity |
The output is adjustable from 10%–100% of intensity limit by a 1 – 10VDC signal. (Jumpering pin 5 to pin 1 will provide maximum intensity.) |
| Connection | 5-pin M12 connector |
| Operating Temperature | -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity |
| Storage Temperature | -20° to 70° C (-4° to 158° F) | RH max 80% non-condensing humidity |
| IP Rating | IP50 |
| Weight | ~325g |
| Compliances | CE, RoHS, IEC-62471 |
| Warranty |
UV LEDs have a 2 year warranty, all other LEDs have a 10 year warranty. For complete warranty information, visit smartvisionlights.com/warranty. |
All EZ Mount LED Ring Light Mount Directly to a Camera Lens
The EZ Mount LED Ring Light can be quickly and easily adapted to any vision system with either of four standard mounting options. First, there is a standard M46 thread protruding from the back of the EZ Mount LED Ring Light. Using readily available step-up or step-down rings it can be mounted directly to the threads found on the front end of most lenses. Second is the ability to mount the lens at the front end of the EZ Mount LED Ring Light. Once again, an off-the-shelf step up or step down adapter ring can be used to adapt lenses with M43 or smaller filter mounting threads. A flange at the front end of the EZ Mount LED Ring Light holds the step ring with three set screws, and the camera lens is inserted through the center of the EZ Mount LED Ring Light and threaded onto the step ring. In those few cases where the lens's locking thumbscrews may prevent the lens from fitting through the center of the EZ Mount LED Ring Light, extra low-profile replacement set screws are included, allowing the protruding thumbscrews to be removed. Step up and Step down adapter rings are not included with the light. Third is a T-slot on all sides. Standard industrial T-nuts can be dropped into the slot for mounting. Fourth way to mount the light is using the threaded M4 holes on the back plate of light. The EZ Mount LED Ring Light are a high output LED light in an aluminum housing. Housing uses industry standard T-Slots for ease of mounting. Ring Lights are available in light output of White, Red, Amber, Blue, Green, Cyan, IR and UV. Ring Light includes an integrated constant current driver with a built in strobe input with option for PNP or NPN trigger control. No need for an external driver to control the light. The integrated driver also includes variable light intensity control. Light can be controlled by a manual potentiometer or a 0-10VDC analog signal.
RC130 RING LIGHT OVERVIEW
The all metal construction of the Ring Light Series of lights provides a small particle resistant and all around durable light. Its simple plug and play 5 Pin M12 connector allows for ease of use while allowing for full control. The RC130 and RCC130 operates with either an NPN or a PNP signal and runs on an industry standard 24 VDC. The 0-10 VDC intensity control assists in gaining full control of the light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kits adapters.
The RC130 was designed to produce a large uniform/homogenous light pattern. To achieve this, the RC130 contains special lenses for creating this near collimated light pattern. Optics include a focused uniform lens for wide vision.
The RCC130 was designed to produce a narrow uniform/homogenous light pattern. To achieve this, the RC130 contains special lenses for creating this near collimated light pattern. Optics include a tightly focused uniform lens for narrow version.
RC130 (WIDE) ILLUMINATION
RCC130 (NARROW) ILLUMINATION
Wavelength Colors
WIRING
MOUNTING USING THREAD ADAPTERS
Thread Adapters (Or Direct to Camera Mount Adapters) are both available for mounting the EZ Mount Ring Lights directly to your lens or camera body. Please Reference the Datasheet for your respective lens to confirm thread size prior to ordering a thread adapter. Direct to Camera Mount Adapters are also thread adapters that mount the light directly to the body of your camera.
RC130 Downloads
 |
 |
 |
 |
Possible Product Configurations:

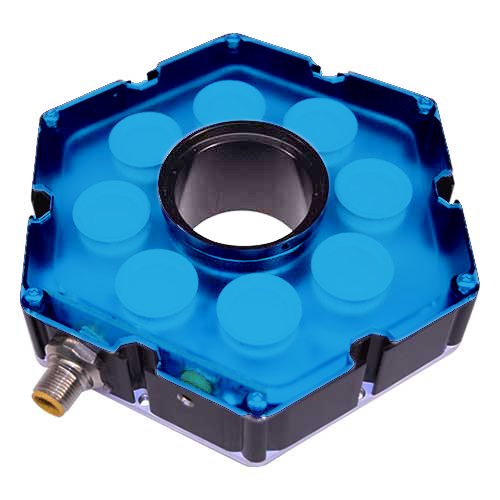

RC130-365

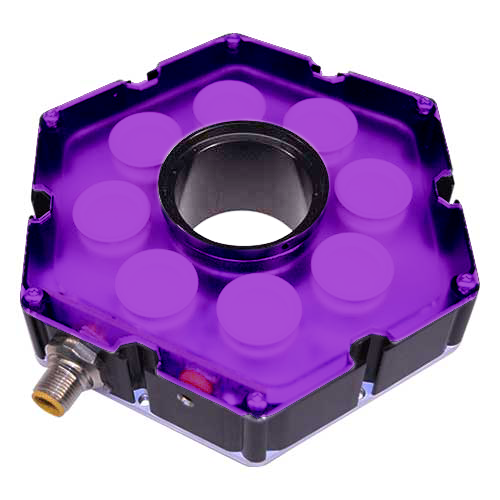

RC130-395

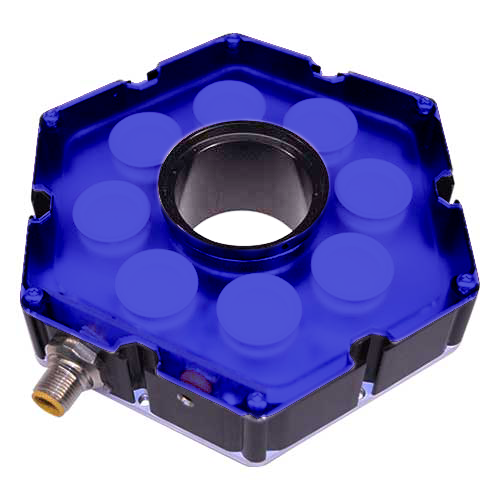

RC130-470
RC130-505
RC130-530
RC130-625

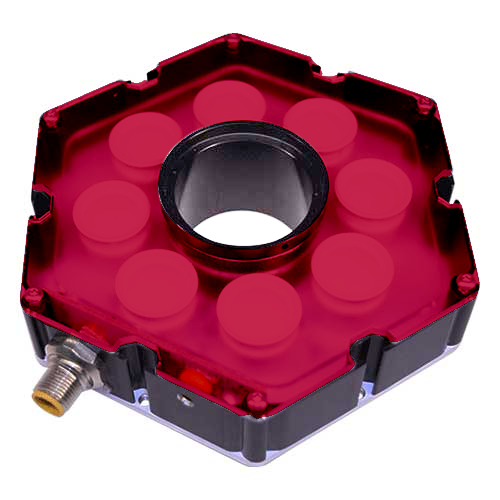

RC130-850
RC130-940

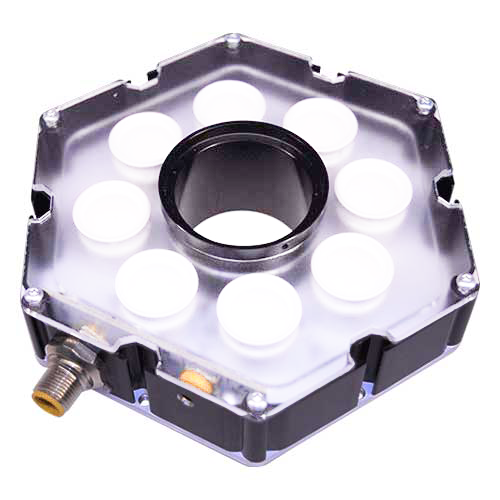

RC130-WHI
