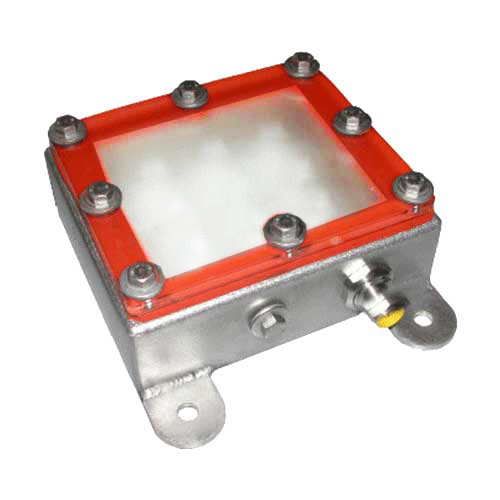

ODSW75 IP68 Washdown Overdrive Brick Light

Smart Vision LightsSKU: ODSW75-WHI
Lead Time: 3 Business Days

Color: WHITE
Lens: Narrow 14 Deg (Standard)
Price:
Sale price$894.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

ODSW75: FDA Compliant Spot Lights for common illumination of a vision system

Brick wash down is available in 2 versions. Standard spot series SW75 or OverDrive™ ODSW75 version. The OverDrive™ version is a high output strobe only model.

Product Details

  • IP68 Standards
  • Meets FDA Compliancy
  • 316 Stainless Steel
  • Designed to operate in food applications
  • Corrosion resistant

Smart Vision Lights ODSW75 Technical Specifications

ODSW75 Continuous Operation Specifications

Electrical Input 24VDC +/5%
Input Current  Peak 3 A draw during strobe
Input Power Peak 72 W during strobe
PNP Trigger
2.8 mA @ 4VDC | 8.8 mA @ 12VDC | 17.6 mA @ 24VDC
NPN Trigger 14.4 mA @ Common (0VDC)
Trigger Input PNP > +4 VDC (24 VDC max.) to activate or NPN ≥ GND <1VDC to activate (not both)
Strobe Duartion  Min. 1 μs | Max. 50 ms
Strobe Frequency
Max 4 kHz or 1 / Duty Cycle as calculated, whichever is less*
Duty Cycle  Max 10%*
Potentiometer
270º turn pot — intensity control of 10%–100%. Turn clockwise to increases intensity.
Analog Intensity
The output is adjustable from 10%–100% of brightness by a 1–10 V DC signal.
Connection
5-pin M12 connector
Ambient Temperature -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
Storage Temperature  -10° to 40° C (14° to 104° F) | RH max 80% non-condensing humidity
IP Rating  IP68
Weight  ~710 g
Complinaces  CE, RoHS, IEC 62471
Warranty UV LEDs have a 2 year warranty, all other LEDs have a 10 year warranty.
For complete warranty information, visit
smartvisionlights.com/warranty.



BRICK LIGHT OVERVIEW
The Brick Light® has 6 high output, high current LED's in a small housing. Brick Light® is available in light output of White, Red, Amber, Blue, Green, Cyan IR and UV. Brick Light® includes an integrated constant current driver with a built in strobe input with option for PNP or NPN trigger control. No need for an external driver to control the light. The integrated driver also includes variable light intensity control. Light can be controlled by a manual potentiometer or a 0-10VDC analog signal.

Wavelengths

ODSW75 Colors Wavelengths Smart Vision Lights

Note: Contact us for SWIR Pricing

WIRING

MOUNTING
Mounting is done by use of 4 through holes. Use M6 or 1/4-20 Hardware.

ODSW75 Downloads

ODSW75 Datasheet | Smart Vision Lights ODSW75 3D STEP Model | Smart Vision Lights
ODSW75 2D DXF Drawing | Smart Vision Lights ODSW75 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:

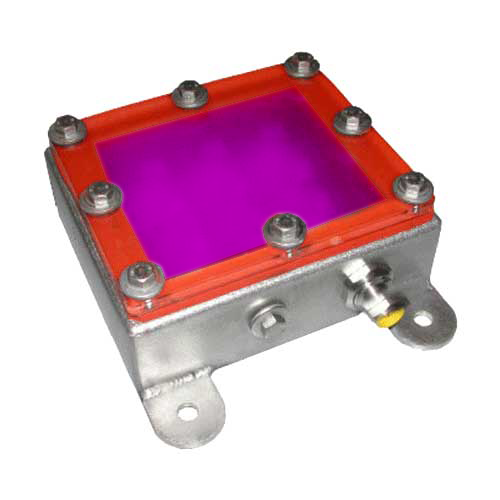

ODSW75-365

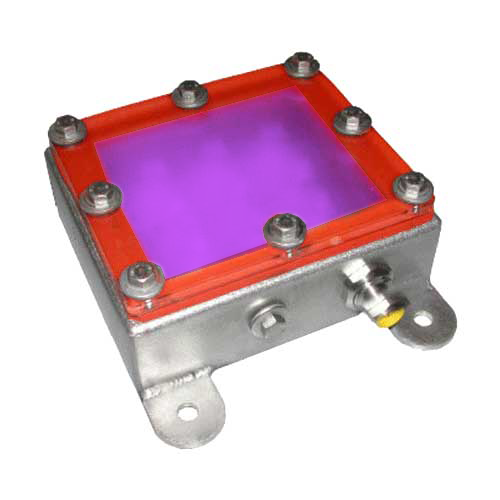

ODSW75-395
ODSW75-470
ODSW75-505

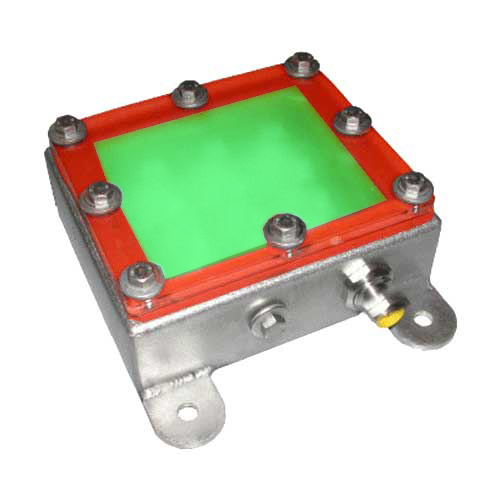

ODSW75-530

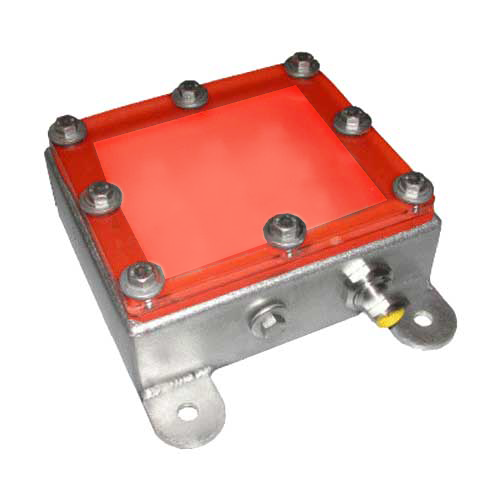

ODSW75-625
ODSW75-850

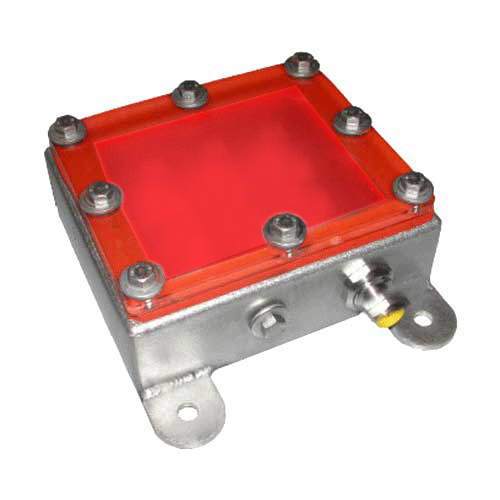

ODSW75-940
ODSW75-WHI
ODSW75-365-W
ODSW75-395-W
ODSW75-470-W
ODSW75-505-W
ODSW75-530-W
ODSW75-625-W
ODSW75-850-W
ODSW75-940-W
ODSW75-WHI-W
