ODR80 Overdrive EZ Mount Ring Light (80mm)

Smart Vision LightsSKU: ODR80-WHI
Lead Time: 3 Business Days

Color: WHITE
Lens: Wide 30 Deg (Standard)
Price:
Sale price$338.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

Smart Vision Lights ODR80 Technical Specifications

ODR80 Continuous Operation Specifications

Electrical Input 24VDC +/5%
Input Current  Peak 2A draw during strobe
Input Power  Peak 48 W during strobe
Strobe Input PNP > +4VDC to activate | NPN > GND (<1VDC) to activate
PNP Trigger 4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC
NPN Trigger 15 mA @ Common (0VDC)
Duty Cycle
Max. 10%
Strobe/Pulse Time  Max. 4000 SPS (strobes per second) | Max. single pulse = 125 ms
(see SafeStrobe
TM Technology for more information)
Red Indicator Led ON = Light Rest (LED inactive) | OFF = LED/Light Ready
Green Indicator Led  ON = Power
Intensity Limit 270º turn pot. Turn clockwise to increases intensity limit.
Analog Intensity
The output is adjustable from 10%100% of intensity limit by a 110VDC signal.
Connection 5-pin M12 connector
Ambient Temperature -18º–40ºC (0º–104ºF)
IP Rating IP50
Weight ~183 g
Compliances CE, RoHS, IEC 62471
Warranty UV LEDs have a 2 year warranty, all other LEDs have a 10 year warranty.
For complete warranty information, visit smartvisionlights.com/warranty.



R80 Ring Lights Product Details

  • 4-5 times brighter than standard high current LEDs
  • SafeStrobe Technology
  • T-Slot for mounting
  • Conversion adapters For different cameras
  • PNP and NPN strobe input
  • OverDrive/Strobe only
  • Up to 5000 strobes per second
  • Maximum strobe time 125ms

All EZ Mount LED Ring Light Mount Directly to a Camera Lens
The EZ Mount LED Ring Light can be quickly and easily adapted to any vision system with either of four standard mounting options. First, there is a standard M46 thread protruding from the back of the EZ Mount LED Ring Light. Using readily available step-up or step-down rings it can be mounted directly to the threads found on the front end of most lenses. Second is the ability to mount the lens at the front end of the EZ Mount LED Ring Light. Once again, an off-the-shelf step up or step down adapter ring can be used to adapt lenses with M43 or smaller filter mounting threads. A flange at the front end of the EZ Mount LED Ring Light holds the step ring with three set screws, and the camera lens is inserted through the center of the EZ Mount LED Ring Light and threaded onto the step ring. In those few cases where the lens's locking thumbscrews may prevent the lens from fitting through the center of the EZ Mount LED Ring Light, extra low-profile replacement set screws are included, allowing the protruding thumbscrews to be removed. Step up and Step down adapter rings are not included with the light. Third is a T-slot on all sides. Standard industrial T-nuts can be dropped into the slot for mounting. Fourth way to mount the light is using the threaded M4 holes on the back plate of light. The EZ Mount LED Ring Light are a high output LED light in an aluminum housing. Housing uses industry standard T-Slots for ease of mounting. Ring Lights are available in light output of White, Red, Amber, Blue, Green, Cyan, IR and UV. Ring Light includes an integrated constant current driver with a built in strobe input with option for PNP or NPN trigger control. No need for an external driver to control the light. The integrated driver also includes variable light intensity control. Light can be controlled by a manual potentiometer or a 0-10VDC analog signal.

ODR80 RING LIGHT OVERVIEW
The all metal construction of the Ring Light Series of lights provides a small particle resistant and all around durable light. Its simple plug and play 5 Pin M12 connector allows for ease of use while allowing for full control. The 0-10 VDC intensity control assists in gaining full control of the light output. A standard 42 mm inner hole diameter allows for use with nearly all camera systems with available step-up and step-down conversion kits adapters. The ODR80 features an Overdrive driver with NPN or PNP signal options.

Wavelength Colors

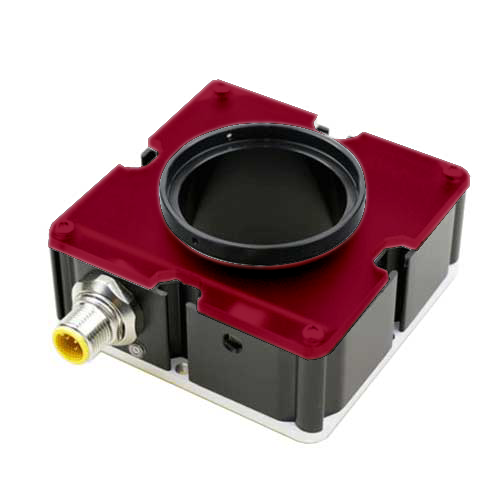

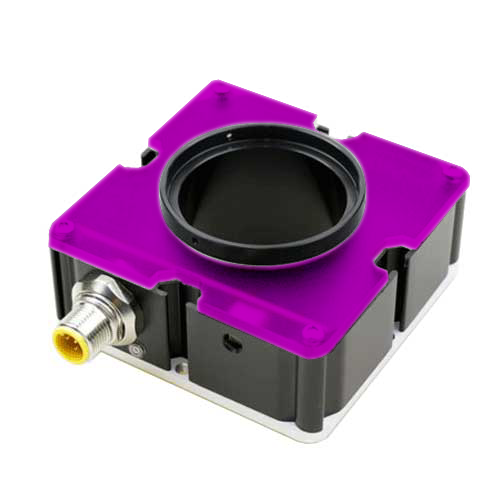

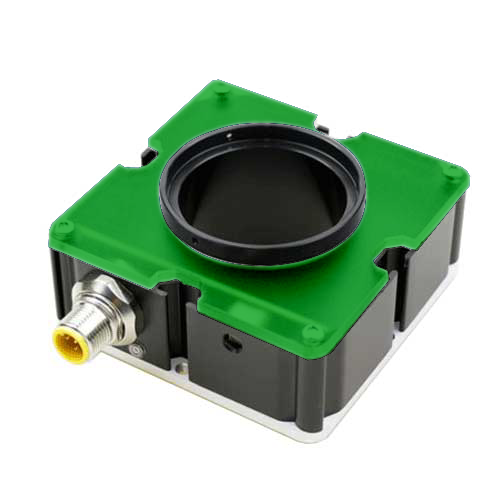

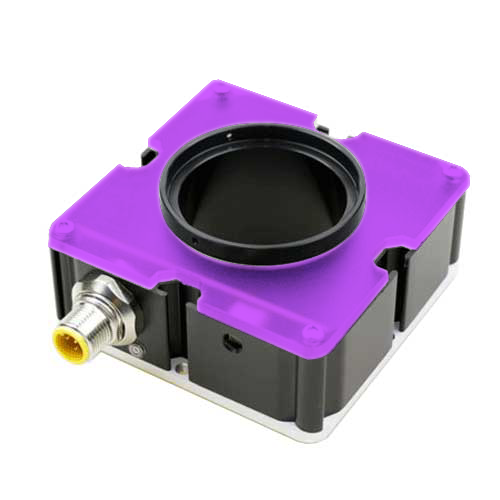

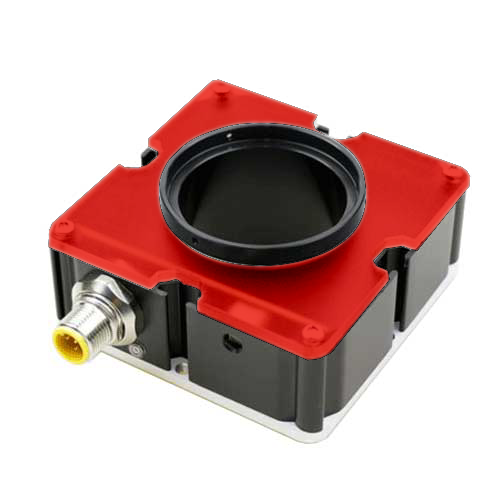

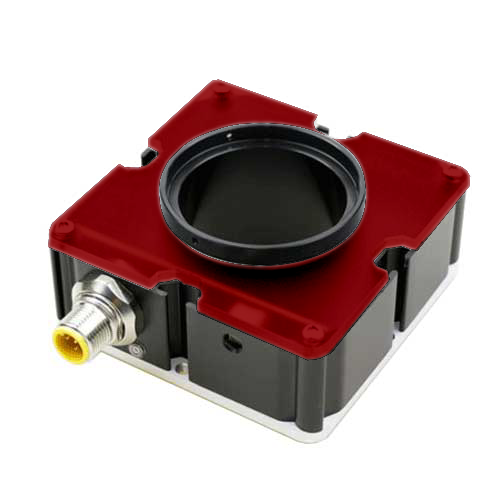

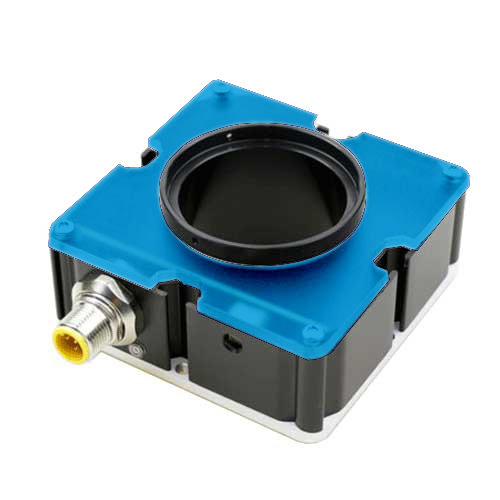

ODR80 Wavelength Colors


 WIRING
MOUNTING USING THREAD ADAPTERS
Thread Adapters (Or Direct to Camera Mount Adapters) are both available for mounting the EZ Mount Ring Lights directly to your lens or camera body. Please Reference the Datasheet for your respective lens to confirm thread size prior to ordering a thread adapter. Direct to Camera Mount Adapters are also thread adapters that mount the light directly to the body of your camera.

ODR80 Downloads

ODR80 Datasheet | Smart Vision Lights ODR80 3D STEP Model | Smart Vision Lights
ODR80 2D DXF Drawing | Smart Vision Lights ODR80 PDF Dimension Drawing | Smart Vision Lights




Possible Product Configurations:

ODR80-365
ODR80-395
ODR80-470
ODR80-505
ODR80-530
ODR80-625
ODR80-850
ODR80-940
ODR80-WHI
ODR80-365-N
ODR80-395-N
ODR80-470-N
ODR80-505-N
ODR80-530-N
ODR80-625-N
ODR80-850-N
ODR80-940-N
ODR80-WHI-N
