DDL-250-625 | DDL-250 Dome Light (10" Diameter) | 625nm Red Light

Smart Vision LightsSKU: DDL-250-625
Lead Time: 3 Business Days

Price:
Sale price$1,630.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00
Downloads

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us

Description

DDL Dome Light Series Product Details
  • 5 Pin M12 Quick Disconnect
  • Driver built in - No External wiring to a driver
  • NPN or PNP Signal Options
  • Analog Intensity 0-10VDC Signal
  • 250mm Dome Diameter
  • 40mm Camera Viewing Hole
  • Continuous Operation or OverDrive Mode
  • Easy mounting with 14 T-slots

Smart Vision Lights DDL-250 Technical Specifications

DDL-250 Continuous Operation Specifications

Electrical Input 24VDC +/-5%
Input Current Max. 1.45 A
Wattage Max. 34.8 W
PNP Line 4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC
NPN Line 15 mA @ ground (0VDC)
OverDriveTM Strobe Mode Not applicable
Strobe Duration Not applicable
Duty Cycle Not applicable
Strobe Input Not applicable
Continuous Operation Mode NPN can be tied to ground OR PNP can be tied to 24VDC (not both)
On/Off Input PNP: +4VDC or greater to activate NPN: GND (<1VDC) to activate
Connection 5-pin M12 connector
Ambient Temperature -18º–50ºC (0º–122ºF)
IP Rating IP50
Weight 2.27 kg
Compliances CE, RoHS, IEC 62471
Warranty 10 years. For complete warranty information, visit smartvisionlights.com/warranty.



DDL-250 OverDrive Strobe Mode Specifications

Electrical Input 24VDC +/-5%
Input Current Max. 140 W
Wattage Max. 34.8 W
PNP Line 4 mA @ 4VDC | 10 mA @ 12VDC | 20 mA @ 24VDC
NPN Line 15 mA @ ground (0VDC)
OverDriveTM Strobe Mode Connect pin 5 to GND
(see Wiring Configuration for more information)
Strobe Duration Min. 10 μs | Max. 50 ms (see SafeStrobeTM Technology for more information)
Duty Cycle Max. 10%
Strobe Input PNP: +4VDC or greater to activate NPN: GND (<1VDC) to activate
Continuous Operation Mode Not applicable
On/Off Input Not applicable
Connection 5-pin M12 connector
Ambient Temperature -18º–50ºC (0º–122ºF)
IP Rating IP50
Weight 2.27 kg
Compliances CE, RoHS, IEC 62471
Warranty 10 years. For complete warranty information, visit smartvisionlights.com/warranty.



DDL Dome Light Series OVERVIEW
The DDL Dome Light Series are designed to read code and imperfections on rounded or highly reflective products and product inspection with an even, uniform, and repeatable light intensity. The DDL Dome Lights feature our Multi-Drive™ controller and built-in driver. The Multi-Drive™ controller combines the Constant ON operation and OverDrive Strobe (high pulse operation) into one easy to use product. The Multi-Drive™ controller allows the user to run the product in Constant ON operation or pulse/strobe the light at the maximum allowed intensity by the LED manufacturer by simply setting the product parameters. The built-in Multi-Drive™ also protects the LEDs from premature degradation and failure caused by excessive heat by regulating the current delivered to the LEDs and limiting the duty cycle of the light.

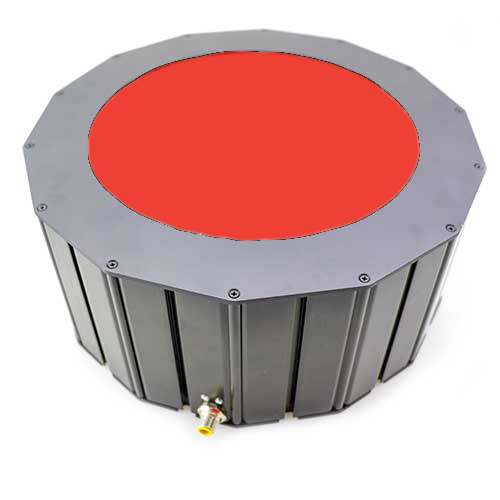

DDL-250 DOME LIGHT
The DDL-250 Series is a diffuse 10" dome light. The 60 LED design and the constant current regulation the built in driver provides along with the semi-reflective white dome further backs the DDL-250 light's performance. The DDL-250 was designed with simplicity and functionality in mind. Built in constant ON operation and OverDrive Strobe technology allows for use in either operation depending on wiring method. NPN and PNP strobe operation with a built in 0-10VDC analog intensity control allows for further versatility. The industry standard 5-pin M12 connector makes for easy installation.

LIGHT OUTPUT CUTAWAY
The dome shape gives this product a particular advantage in uniformity when illuminating and reading OCR codes on reflective or round surfaces.

Wavelength Colors


Multi-Drive Wiring
Wiring Configuration for CONSTANT ON Operation

Wiring Configuration for STROBE/PULSE Operation

MOUNTING
Standard industrial T-slots on each side accepts T-Nuts
Includes (2) T-nuts and (2) screws

(DDL-150 Shown in Image) OPTIONAL CAMERA BRACKET
The DDL Series offers a specially designed camera mounting bracket and an optional right angle bracket. Multiple adjustment points means maximum mounting versatility between camera manufacturers. Mounting hardware included

Part No: BKT0007

DDL-250 Downloads

DDL-250 Datasheet | Smart Vision Lights DDL-250 3D STEP Model | Smart Vision Lights
DDL-250 2D DXF Drawing | Smart Vision Lights DDL-250 PDF Dimension Drawing | Smart Vision Lights



Possible Product Configurations:
DDL-250-470
DDL-250-505
DDL-250-530
DDL-250-625
DDL-250-850
DDL-250-WHI
