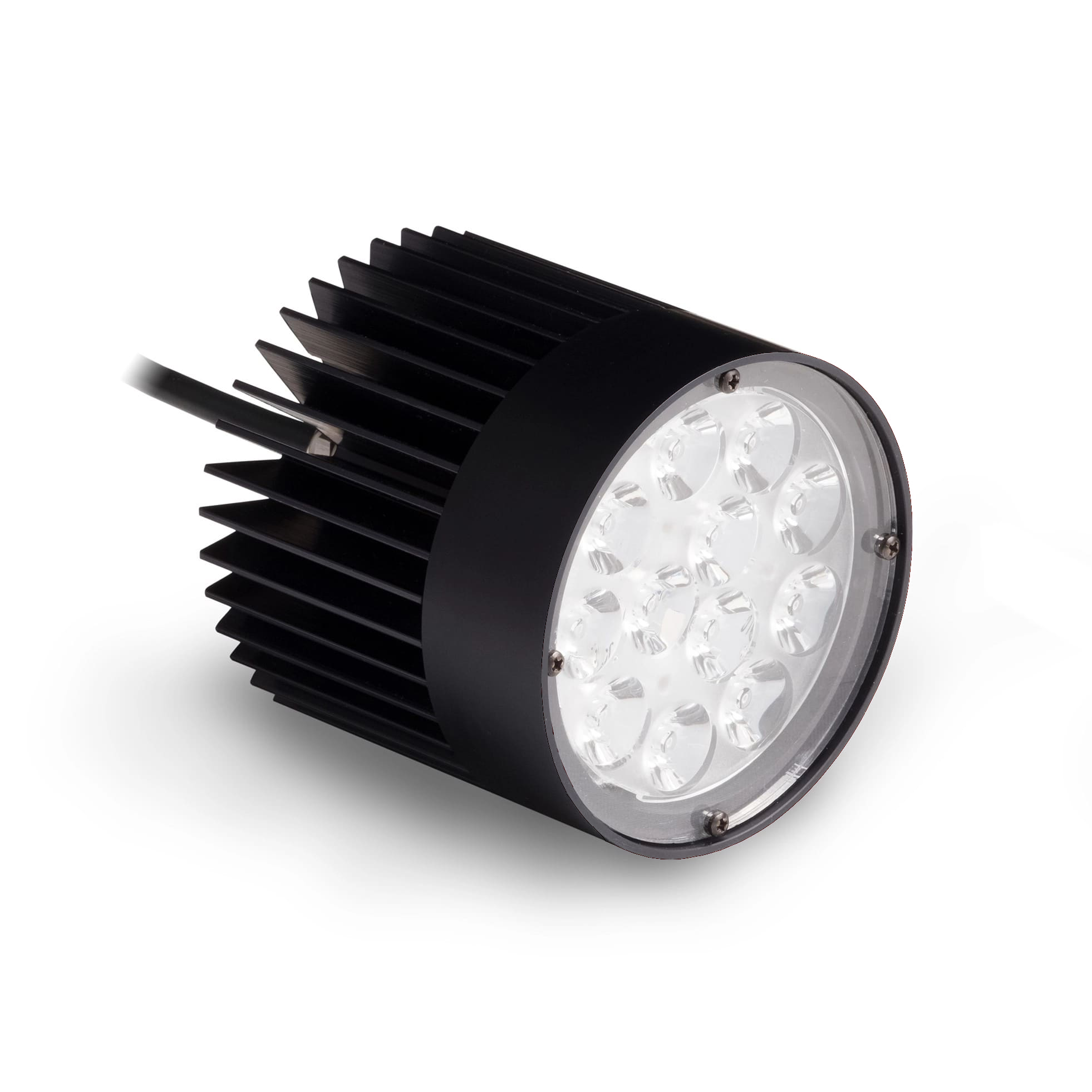

High Intensity Spot Lights - SL Series
|Can Be Strobed||No|
|Can Be Overdrive Strobed||No|
|Can Be Constantly On||Yes|
|Can Be Dimmed||0|
|Connection||2M Flying Lead|
This High Intensity Spot Light is engineered for long throw and high brightness illumination.
Built with 12 high current LEDs focused to produce even illumination at distances beyond 300mm.
Designed to replace our previous SL185 with 3X the brightness (110Klux @ 300mm).
Available in a wide range of wavelengths.
|Normal Operating Temperature||
0 - 60°C
|Weight||567g (20 oz.)|
|Standard Cable Information||2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.|
|Photobiological Risk Factor||
Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
|Compliance||CE, RoHS, IEC 62471|
|IP Rating||Not Rated|
|Lumen Maintenance||L70 = 50,000|
||455nm Royal Blue|
||625nm Red Orange|
||730nm Infra-Red (IR)|
||850nm Infra-Red (IR)|
||940nm Infra-Red (IR)|
Additional Wavelengths are available upon request by contacting Machine Vision Direct.
Part No Key
Advanced Illumination SL246-WHI24 Downloads:
