SL246-940I3S High Intensity Spot Light, IR (940nm), ICS 3S (I3S) Driver

Advanced IlluminationSKU: SL246-940I3S
Lead Time: 2 Weeks

Sale price$795.00 USD

Shipping calculated at checkout

This is a Sample Product Title
Was $200.00 Now $100.00

Lead Times

Lead Times are estimated based on standard product lead times, but are subject to change. For the latest product lead times, we always recommend contacting us


High Intensity Spot Lights - SL Series

SL246-940I3S Specifications:

Brand Advanced Illumination
Series SL246
Wavelength 940
Color Infra-Red (IR)
Driver I3S
Ingress Protection 0
Weight 567g
Can Be Strobed Yes
Can Be Overdrive Strobed Yes
Can Be Constantly On Yes
Can Be Dimmed Dimmable
Connection 2M Flying Lead

Full Description

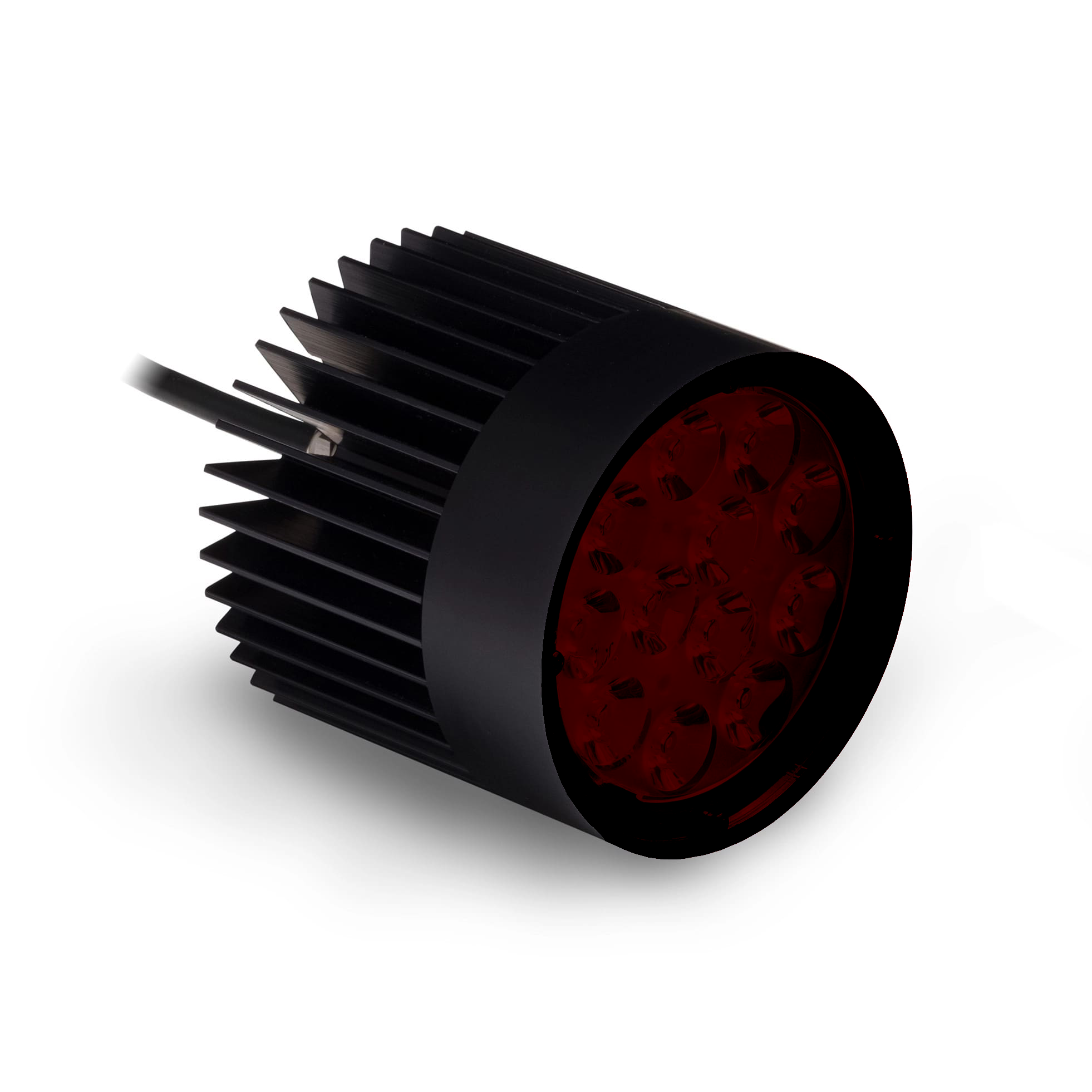

This High Intensity Spot Light is engineered for long throw and high brightness illumination.

Built with 12 high current LEDs focused to produce even illumination at distances beyond 300mm.

Designed to replace our previous SL185 with 3X the brightness (110Klux @ 300mm).

Available in a wide range of wavelengths.

General Specs

Electrical Specifications 0.32A
Normal Operating Temperature

0 - 60°C

Weight 567g (20 oz.)
Standard Cable Information 2 M long -0/+150 mm (80" -0/+6") - 105°C rated PVC jacket, foil shield with drain.
Photobiological Risk Factor Exempt Applicable Wavelengths: 850, 940
Group 1 (Low-Risk) Applicable Wavelengths: 455, 470, 505, 530, 590, 625, 660, 730, WHI
Compliance CE, RoHS, IEC 62471
IP Rating Not Rated
Lumen Maintenance L70 = 50,000


Available Wavelengths

Advanced Illumination White Lights
455nm Royal Blue
Advanced Illumination 470nm Blue Light
470nm Blue
Advanced Illumination 505nm Cyan Light
505nm Cyan
Advanced Illumination 530nm Green Light
530nm Green
Advanced Illumination 590nm Amber Light
590nm Amber
Advanced Illumination 625nm Red Orange Light
625nm Red Orange
Advanced Illumination 660nm Red Light
660nm Red
Advanced Illumination 730nm Infra-Red (IR) Light
730nm Infra-Red (IR)
Advanced Illumination 850nm Infra-Red (IR) Light
850nm Infra-Red (IR)
Advanced Illumination 940nm Infra-Red (IR) Light
940nm Infra-Red (IR)

Additional Wavelengths are available upon request by contacting Machine Vision Direct.

Mechanical Specs

 SL246 High Intensity Spot Light Mechanical Specs | Advanced Illumination

 Optical Specs

 SL246 High Intensity Spot Light Optical Specs | Advanced IlluminationSL246 High Intensity Spot Light Optical Specs | Advanced Illumination

Electrical Specs

 SL246 High Intensity Spot Light Electrical Specs | Advanced Illumination

Control Specs

 SL246 High Intensity Spot Light Control Specs | Advanced Illumination

Part No Key

 SL246 High Intensity Spot Light Part No Key | Advanced Illumination

Advanced Illumination SL246-940I3S Downloads:

Advanced Illumination SL246-940I3S Datasheet | Machine Vision Direct
Advanced Illumination SL246-940I3S CAD PDF | Machine Vision Direct
Advanced Illumination SL246-940I3S CAD DXF | Machine Vision Direct
Advanced Illumination SL246-940I3S CAD STEP MODEL | Machine Vision Direct
